FS 38
English
15

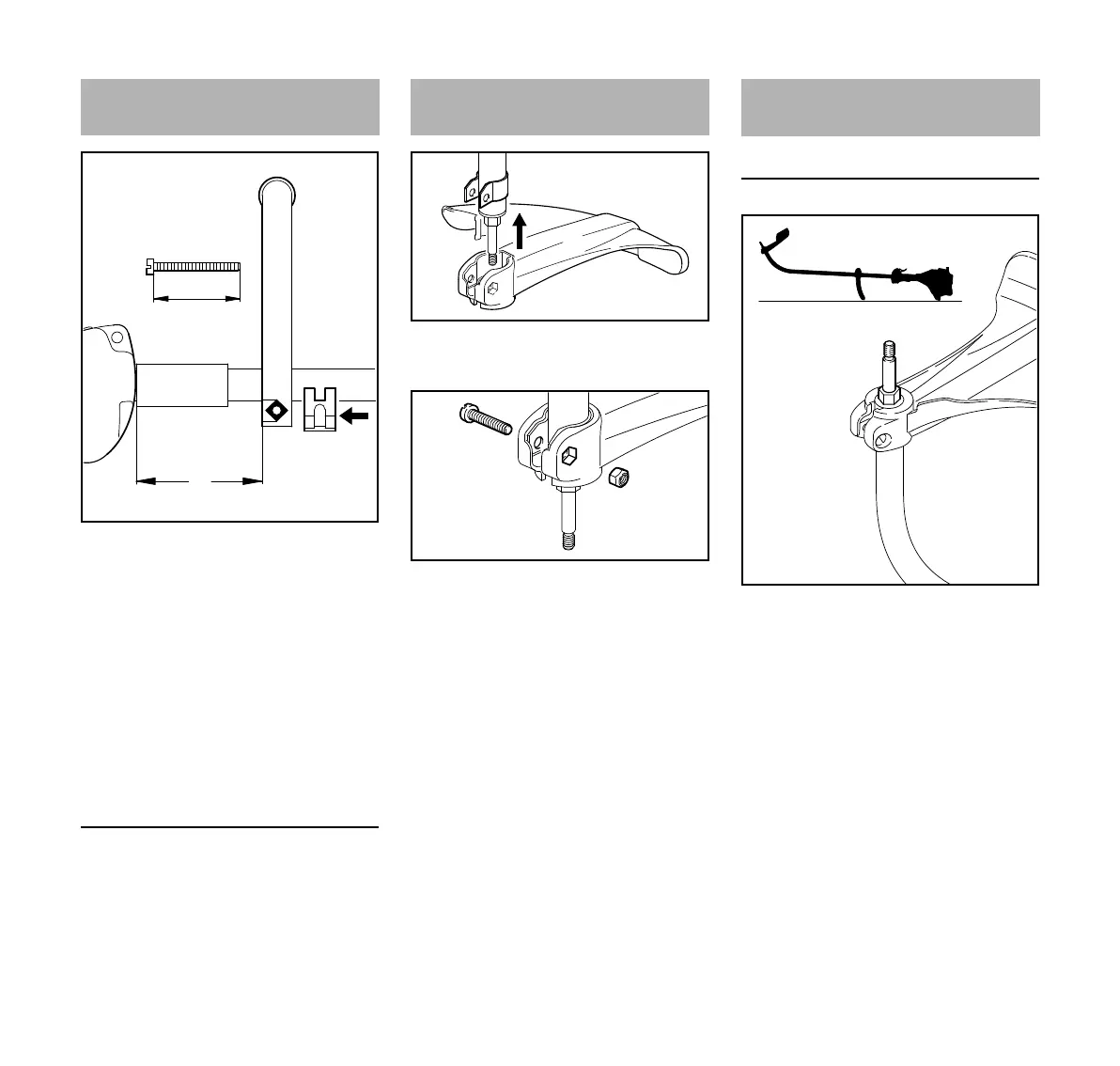

N Fit the loop handle (1) on the drive
tube about 15 cm (6") (A) forward of
the control handle (2).
N Place the clamp (3) against the
drive tube and push it into the loop
handle.
N Place the square nut (4) in the loop
handle,
N insert the screw (5) from the other
side and tighten it down firmly.
Adjusting loop handle to most
comfortable position
N Loosen the screw (5).
N Move the loop handle along the
drive tube as required.
N Tighten down the screw (5) firmly.
N Push the deflector (1) over the
clamp (2) as far as stop.
N Insert the nut (3) in the hex recess in
the deflector – make sure the holes
line up.
N Insert the screw (4) and tighten it
down firmly.
Preparations
N Lay your trimmer on its back with
the loop handle and shroud pointing
down and the output shaft facing up.
Mounting the Loop Handle
50 mm
234BA003 KN
5
1
3
4
A
(2")
2
Mounting the Deflector
1
2
232BA066 KN
4
232BA067 KN
3
Mounting the Cutting
Attachment
232BA026 KN

Stihl FS 38 Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	0.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8700 RPM
Number of strokes	2
Sound power level	109 dB
Fuel tank capacity	0.33 L
Vibration emission	5.7 m/s²
Engine displacement	27.2 cm³
Sound pressure level	94 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1470 mm
Weight	4200 g
