Thrust plate
The thrust plate is shipped with the
PolyCut 6-3 and FixCut 5-2. It is only
required for these mowing heads.
STIHL AutoCut 5-2 mowing head,
STIHL AutoCut C 5-2 mowing head
N Pull the thrust plate (1), if fitted, off
the shaft (2).
STIHL PolyCut 6-3 mowing head,
STIHL FixCut 5-2 mowing head
N Slip the thrust plate (1) over the
shaft (2) and engage the hex
recess (3) on the external
hexagon (4).
Mounting the mowing head
Keep the instruction sheet for the
mowing head in a safe place.
STIHL AutoCut 5-2
N Fit the spring (1) in the mowing
head (2).
N Wind the mowing line (3) on to the
spool (4).
N Thread the nylon line through the
sleeves and fit the spool in the head.
The individual steps are described in the
instruction sheet supplied.
N Slip the mowing head (2) over the
shaft (5) and engage hex recess (7)
on the external hexagon (6).
N Fit the cap (8) on the mowing head
– screw it clockwise on to the shaft
as far as stop and tighten it down
firmly.

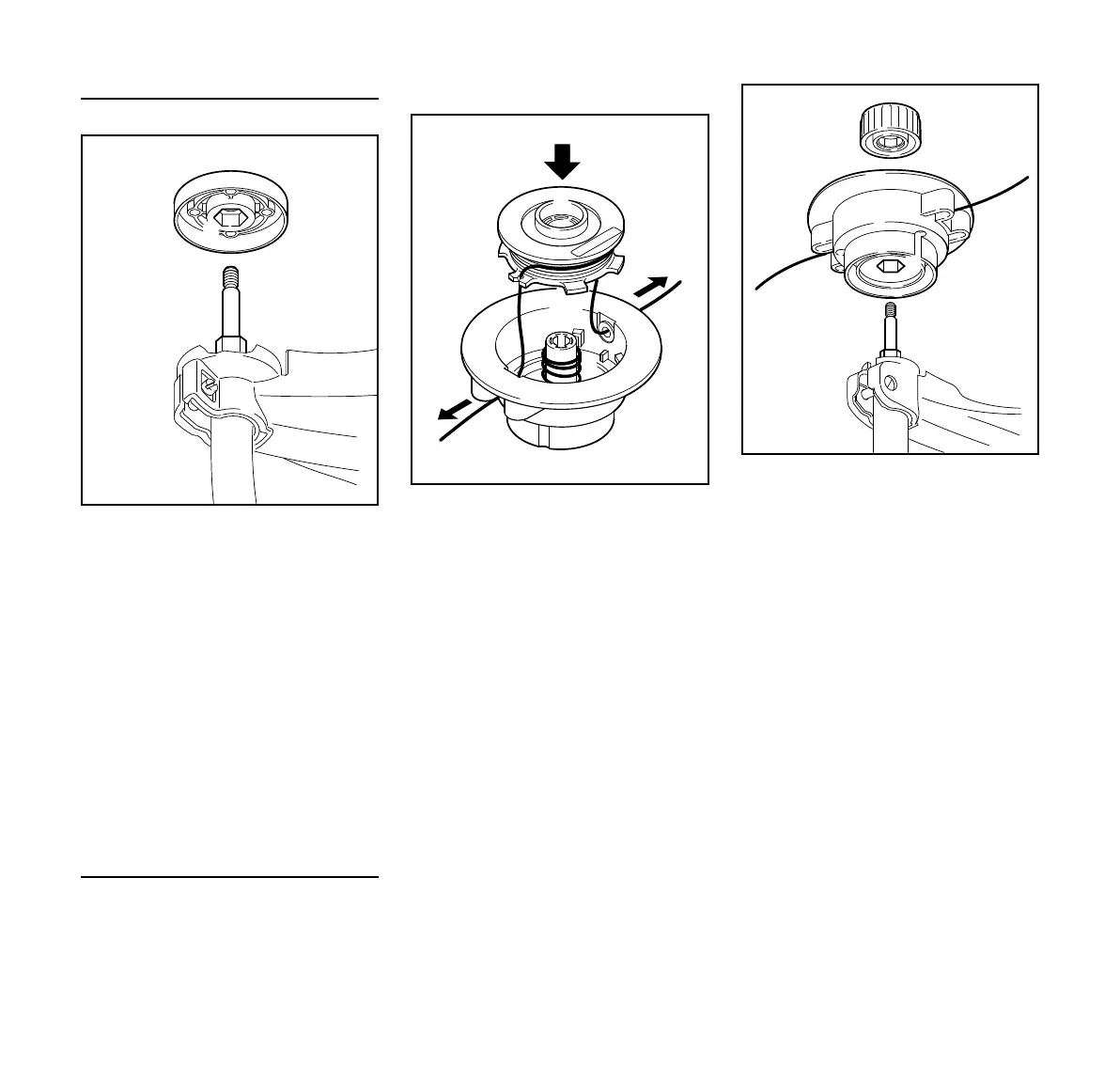

232BA033 KN
1
2
3
4
1
232BA054 KN
2
3
4
3
7
5
2
232BA053 KN
6
8

Stihl FS 38 Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	0.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8700 RPM
Number of strokes	2
Sound power level	109 dB
Fuel tank capacity	0.33 L
Vibration emission	5.7 m/s²
Engine displacement	27.2 cm³
Sound pressure level	94 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1470 mm
Weight	4200 g
