17

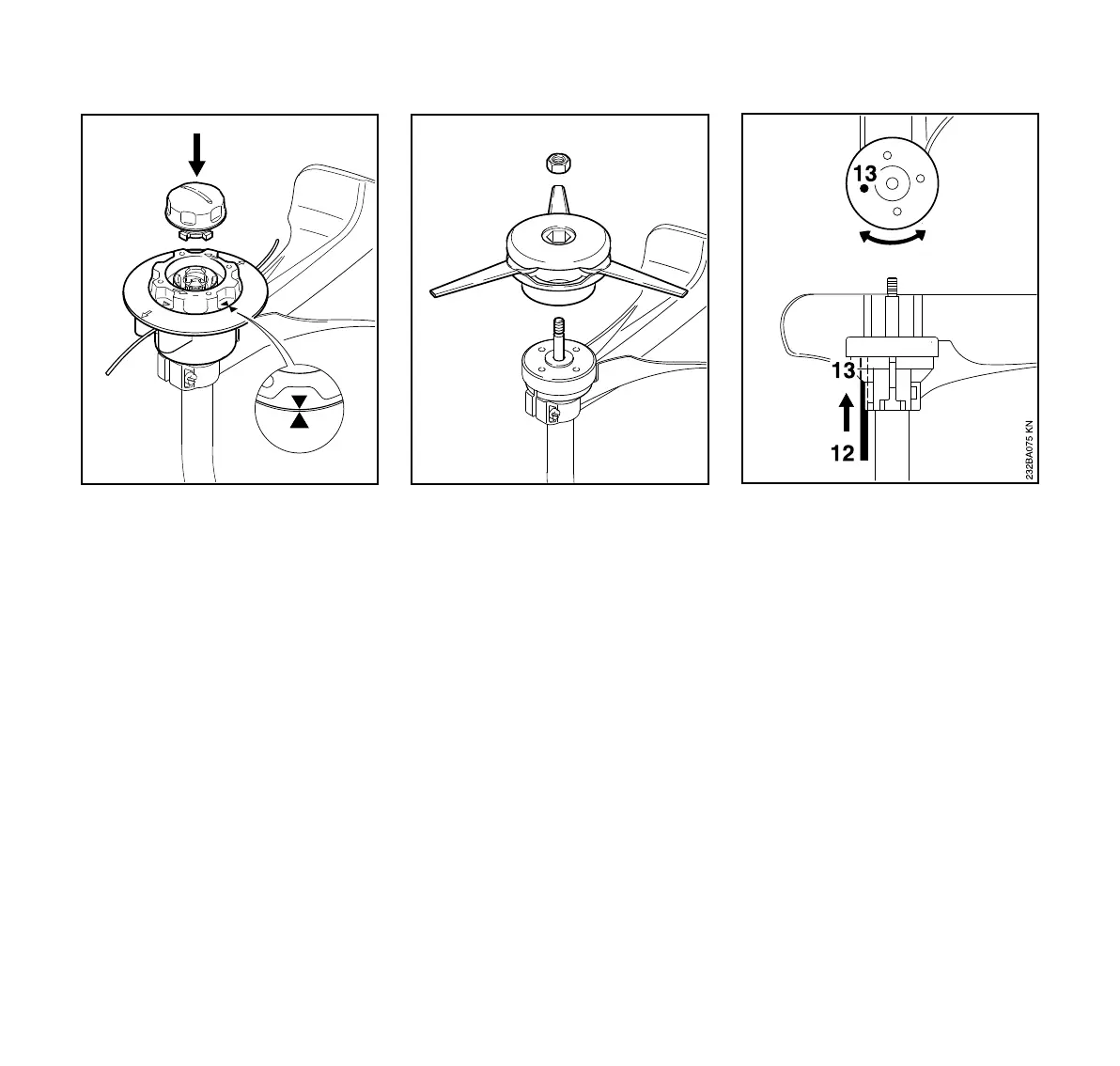

STIHL AutoCut C 5-2
N Slip the mowing head (2) on to the
shaft – as AutoCut 5-2.
N Turn the spool (9) clockwise until
the two arrow heads line up –
secure the spool in this position.
N Insert the cap (8) in the spool, press
it down as far as stop and turn it
clockwise at the same time.
N Turn the cap until you feel
resistance and then tighten it down
firmly by hand.
STIHL PolyCut 6-3
N Fit the thrust plate on the shaft.
N Insert the nut (10) in the mowing
head.
N Screw the mowing head (11)
clockwise on to the shaft (5) as far
as stop.
N Block the shaft – see "Blocking the
Shaft".
N Tighten down the mowing head.
NOTICE
Remove the locking pin.
Block the shaft.
N To block the shaft, insert a suitable
tool (12) through the holes (13) in
the deflector and thrust plate – turn
the thrust plate back and forth if
necessary.
9
681BA018 KN
Schnur/LINE 2
Schnur/LINE 1
2
8
11
5
681BA019 KN
10

Stihl FS 38 Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	0.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8700 RPM
Number of strokes	2
Sound power level	109 dB
Fuel tank capacity	0.33 L
Vibration emission	5.7 m/s²
Engine displacement	27.2 cm³
Sound pressure level	94 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1470 mm
Weight	4200 g
