Stihl FS 38 User Manual

FS 38
English
33
1 Loop Handle
2 Sleeve
3 Stop Switch
4 Throttle Trigger Lockout
5 Throttle Trigger
6 Choke Lever
7 Air Filter Cover
8 Fuel Filler Cap
9 Fuel Tank
10 Machine Support
11 Fuel Pump
12 Carburetor Adjusting Screws
13 Starter Grip
14 Spark Plug Boot
15 Muffler (with Spark Arresting
Screen)
16 Spacer
17 Line Limiting Blade
18 Deflector
19 Mowing Head
20 Drive Tube
# Serial Number

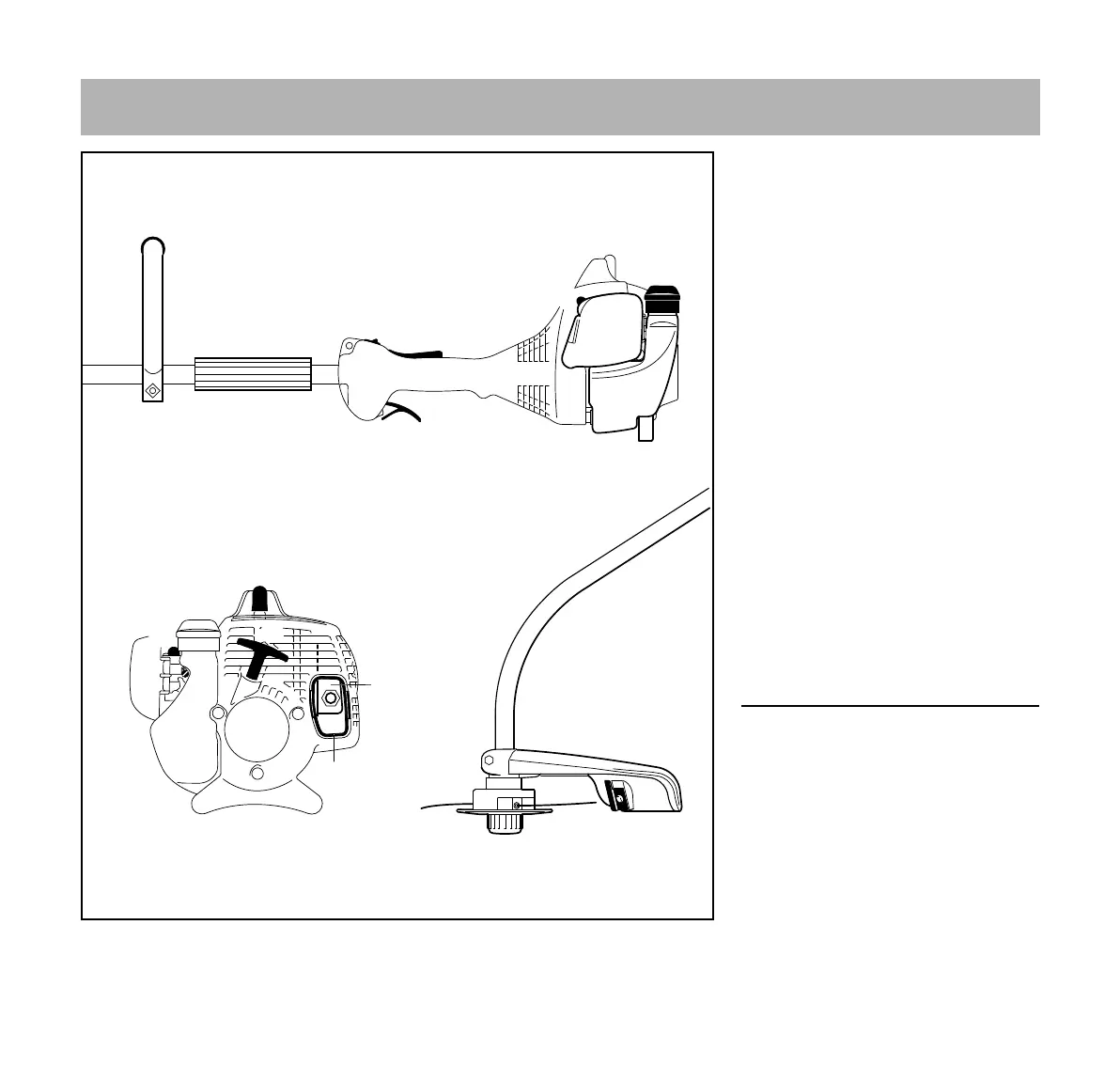

Definitions
1 Loop Handle
For easy control of machine during
cutting work.
2Sleeve
Maintains minimum clearance
between control handle and loop
handle.
Main Parts
2
1
8
6
5
4
3
7
9
10
#
13
11
15
12
14
234BA015 KN
17
18
19
20
16

Stihl FS 38 Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	0.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8700 RPM
Number of strokes	2
Sound power level	109 dB
Fuel tank capacity	0.33 L
Vibration emission	5.7 m/s²
Engine displacement	27.2 cm³
Sound pressure level	94 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1470 mm
Weight	4200 g
