Stihl FS 45 User Manual

FS 45, FS 46
English
18

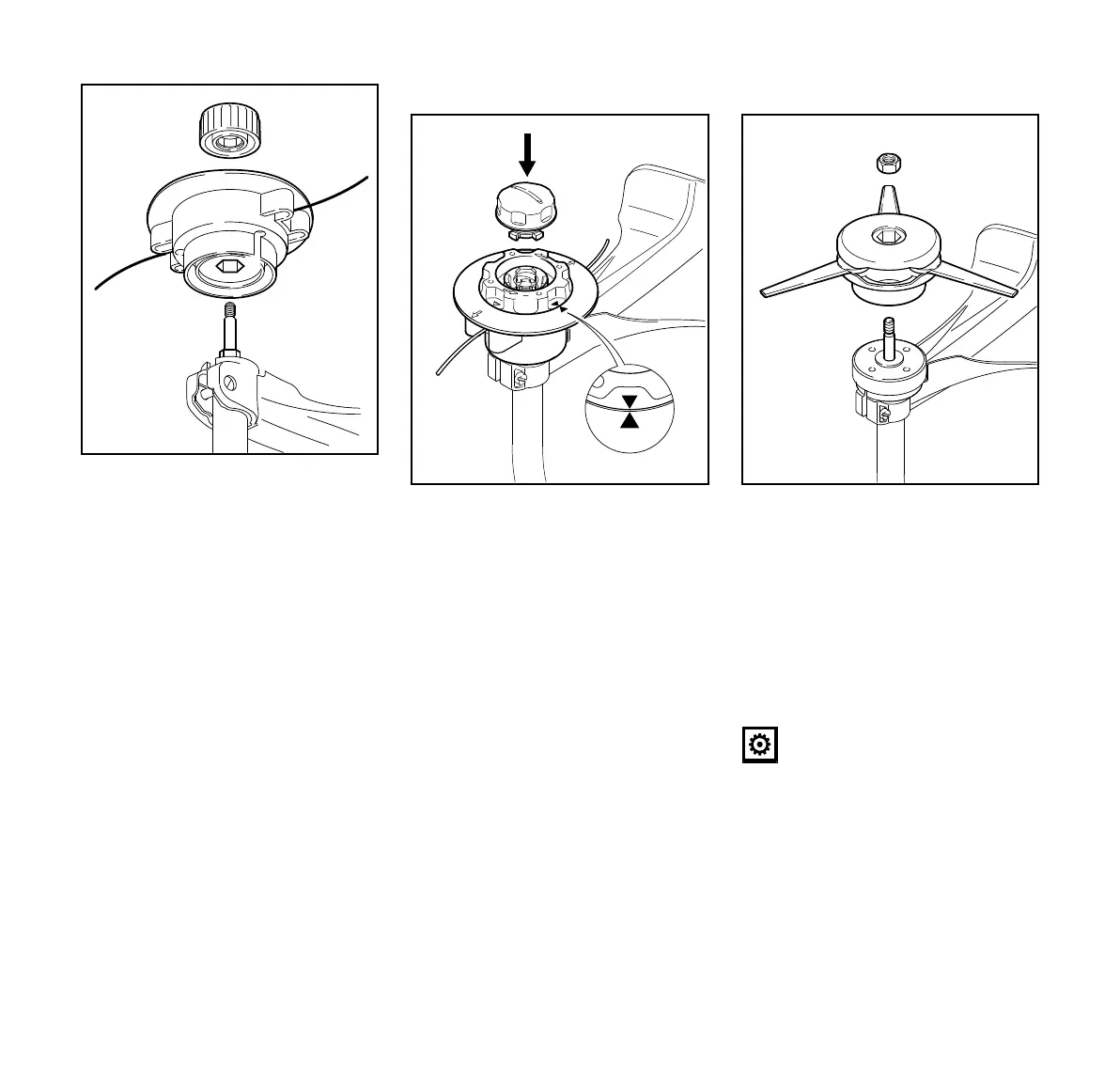

N Slip the mowing head (2) over the
shaft (5) and engage hex recess (7)
on the external hexagon (6).
N Fit the cap (8) on the mowing head
– screw it clockwise on to the shaft
as far as stop and tighten it down
firmly.
STIHL AutoCut C 5-2
N Slip the mowing head (2) on to the
shaft – as AutoCut 5-2.
N Turn the spool (9) clockwise until
the two arrow heads line up –
secure the spool in this position.
N Insert the cap (8) in the spool, press
it down as far as stop and turn it
clockwise at the same time.
N Turn the cap until you feel
resistance and then tighten it down
firmly by hand.
STIHL PolyCut 6-3
N Fit the thrust plate on the shaft.
N Insert the nut (10) in the mowing
head.
N Screw the mowing head (11)
clockwise on to the shaft (5) as far
as stop.
N Block the shaft – see "Blocking the
Shaft".
N Tighten down the mowing head.
Remove the locking pin.
7
5
2
232BA053 KN
6
8
9
681BA018 KN
Schnur/LINE 2
Schnur/LINE 1
2
8
11
5
681BA019 KN
10

Stihl FS 45 Specifications

General

Engine Displacement	27.2 cc
Power Output	0.75 kW
Cutting Diameter	380 mm
Engine Type	2-stroke
Shaft Type	Curved
Fuel Capacity	0.33 liters
Fuel Tank Capacity	0.33 liters
Cutting Width	380 mm
Engine Power	1.0 bhp
Vibration Levels Left/Right Handle	5.5/5.5 m/s²
