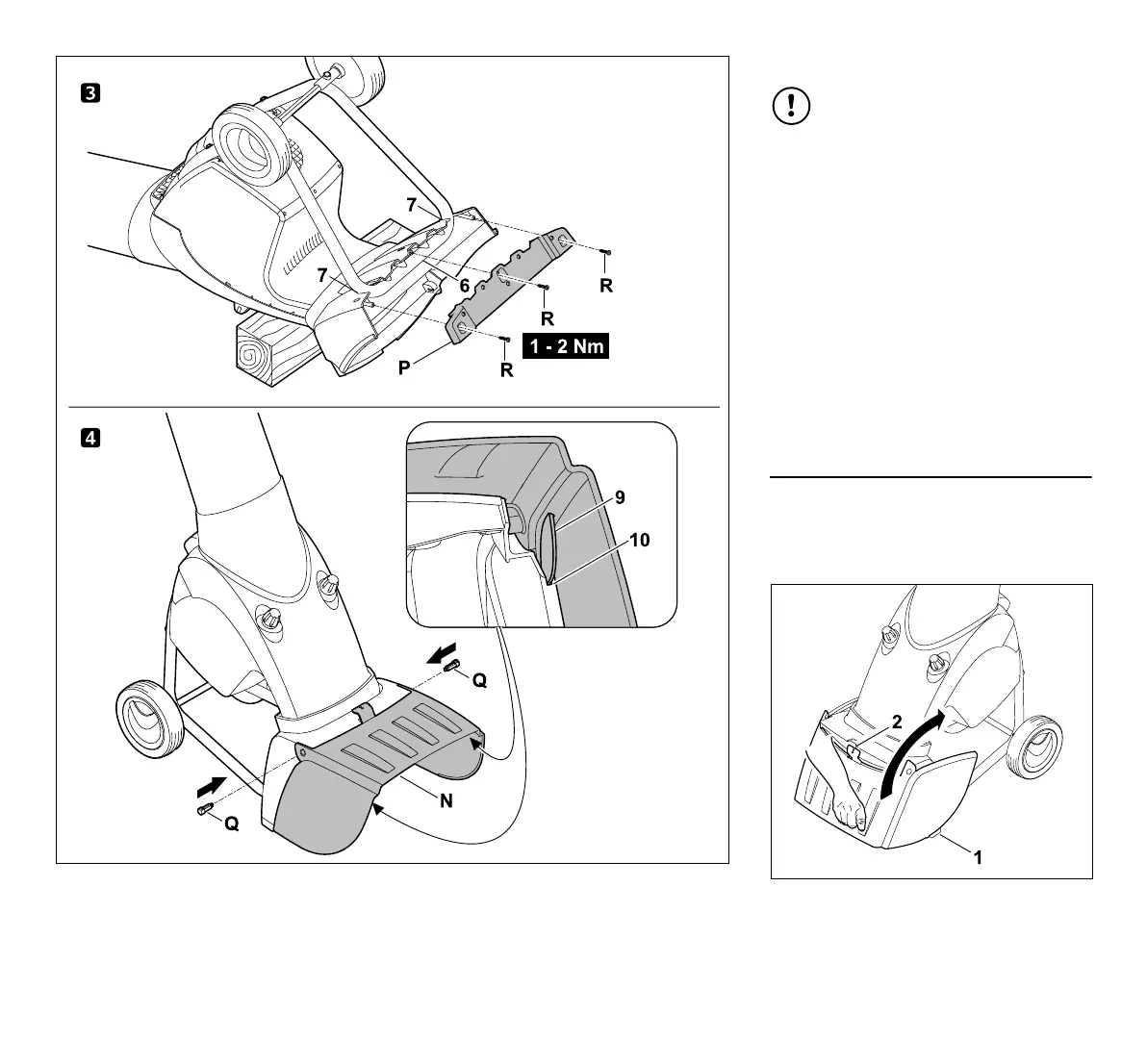

3 Install the strip
● Position strip (P) and screw in
screws (R) (1 - 2Nm).
● Lift the machine into the upright
position.
4 Install the discharge flap
● Attach discharge flap (N) and press in
pin (Q) (use a plastic hammer if
necessary).
Ensure that ribs (9) inside the discharge
flap on the left and right are all correctly
located in the guide groove of ejection
chute extension (10).
7.3 Opening and closing the discharge
flap
Opening the discharge flap:
● For shredding, fold discharge flap (1)
upwards and allow tab (2) to engage in
the ejection chute extension.
The bent section of wheel
carrier (6) must be precisely
inserted in the recesses on ejection
chute extension (7).
