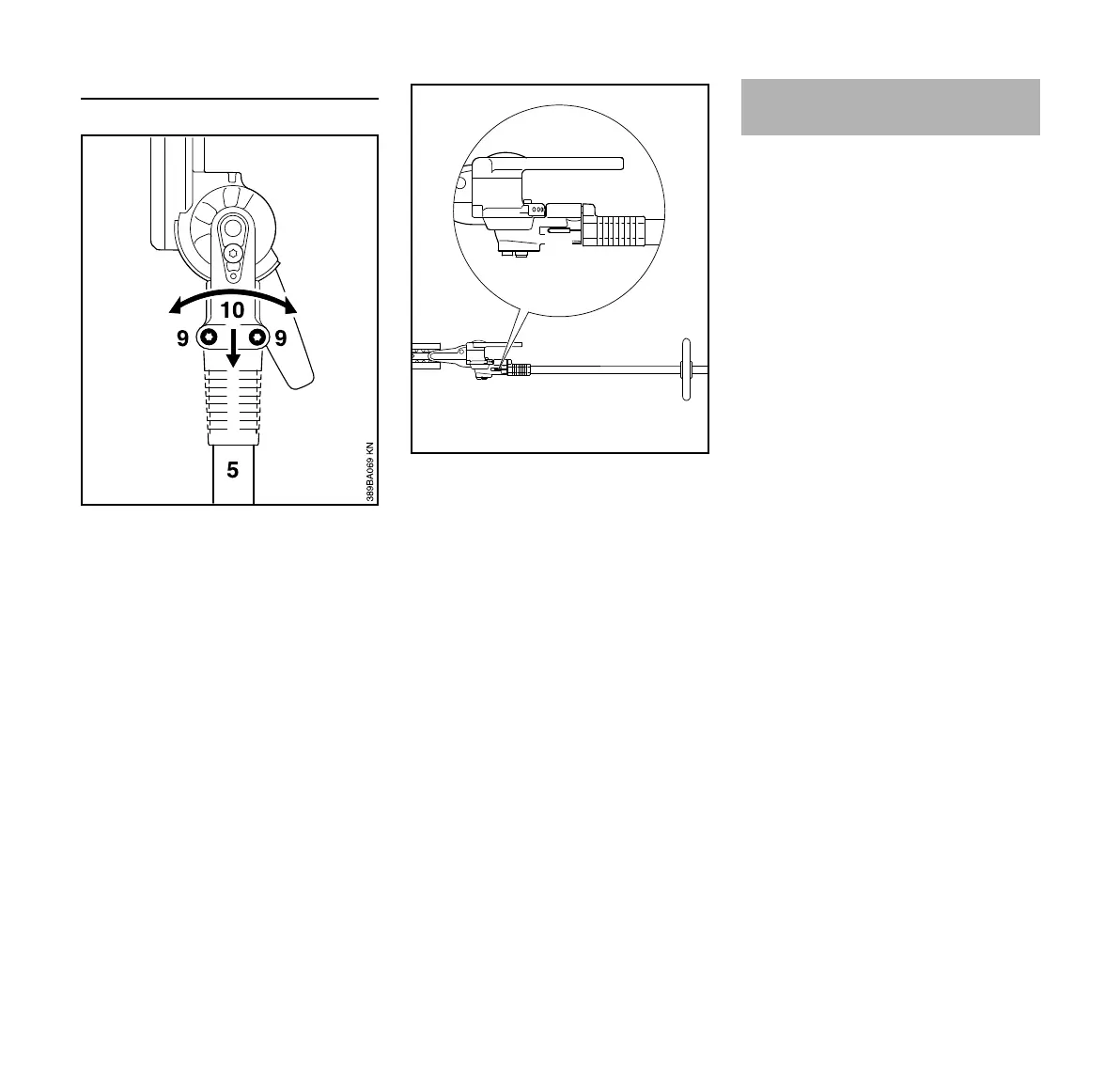

Mounting the Gearbox
N Loosen the clamp screws (9).
N Push the gearbox (10) onto the
drive tube (5), turn the gearbox (10)
back and forth as necessary.
Once the end of the drive tube is
inserted beyond the slot in the
clamp (11):
N Push the gearbox (10) fully home as
far as stop.
N Tighten down the clamp screws
moderately.
N Line up the gearbox (10).
N Tighten down the clamp screws
firmly.
The STIHL 4-MIX engine features
mixture lubrication and must be run on a
fuel mixture of gasoline and engine oil.
It operates otherwise on the 4-stroke
principle.
10
388BA036 KN
11
4-MIX Engine
