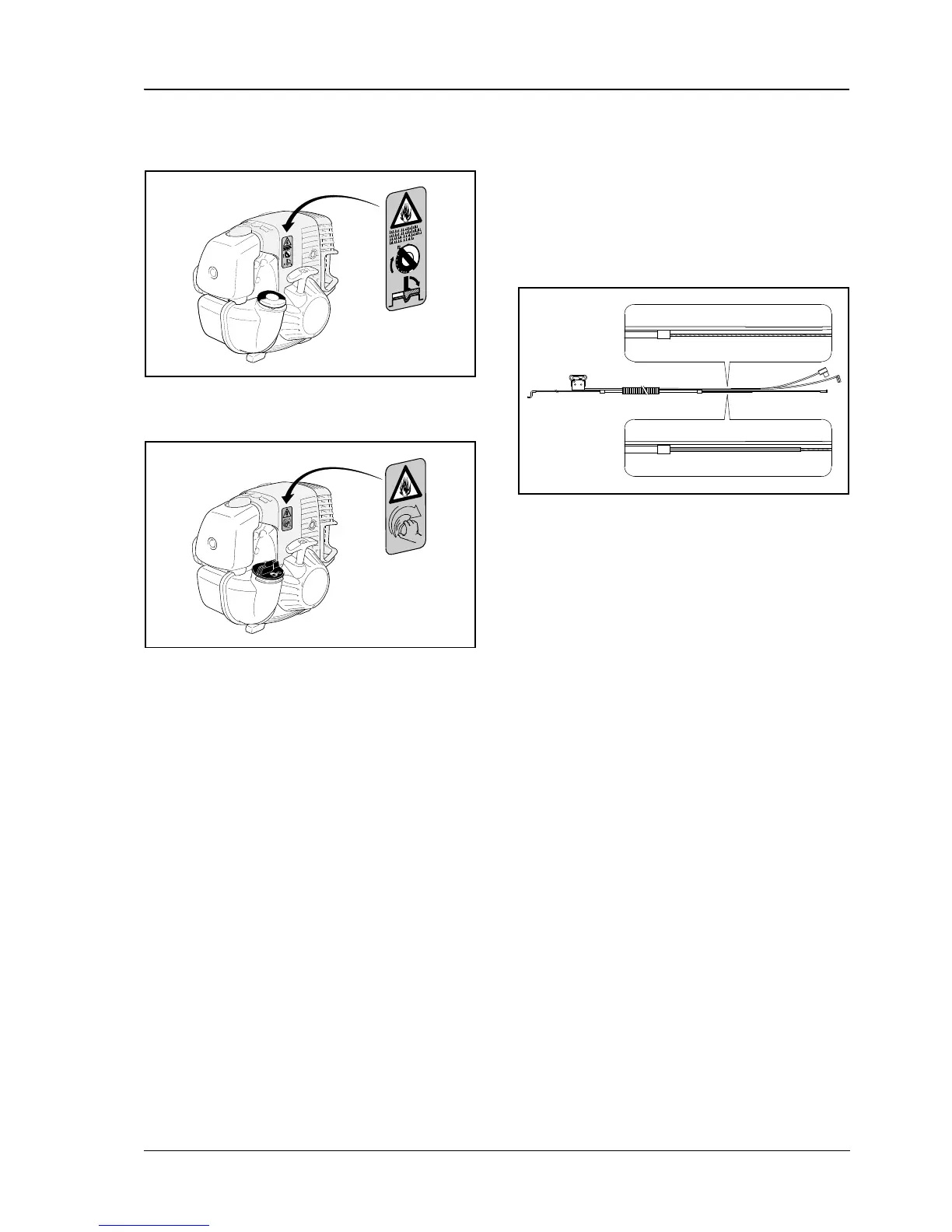

Tank filler cap/pictogram combinations
– Toolless filler cap 0000 350 0535
– Pictogram 0000 967 3605
– Threaded filler cap 0000 350 0517
– Pictogram 0000 967 7222
After all service work on the machine, always check
the condition of the warning pictograms. Add or
replace warning pictograms if necessary.
2. Service information "Fuel tank,
filler cap"
If a previous fuel tank and toolless filler cap is
replaced by the new version fuel tank and threaded
filler cap while a machine is being serviced, always
show the customer how to use the new filler cap.
If necessary, the description under point b 7 can
be printed out and given to the customer. This will
then replace the corresponding sections of the
chapter "Fueling" in the previous Instruction
Manual.
3. Throttle cable, tensioner, spacer
flange
3.1 Throttle cable, tensioner
The previous throttle cables are being replaced by
the new versions with an extended plastic tube for
the wire core.
With the new throttle cables, the wire cores are also
routed through a plastic tube in the vicinity of the
tensioner. For this, the plastic tube in the Bowden
cable is extended.
Simultaneously, the previous tensioner
4180 182 7600 will be replaced by the version
4180 182 7601. The new tensioner is characterized
by the routing of the throttle cable.
