4 Safety Symbols on the Products
5 Trigger Switch
Switches the motor on and off.
6 Push Button
Activates the garden shears‘ LEDs.
7 Garden Shears LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the power
tool or battery.
8 Power Supply Cord
Supplies the charger with electricity when plugged into
an electrical outlet.
9Plug
Connects the power supply cord to an electrical outlet.
10 Charger LED
Indicates the operating status of the charger.
11 Charger
Charges the battery.
12 Locking Lever
Secures the battery in the battery compartment.
13 Battery
Supplies electrical power to the motor.
# Rating Plate
Contains electrical information and the product's serial
number.

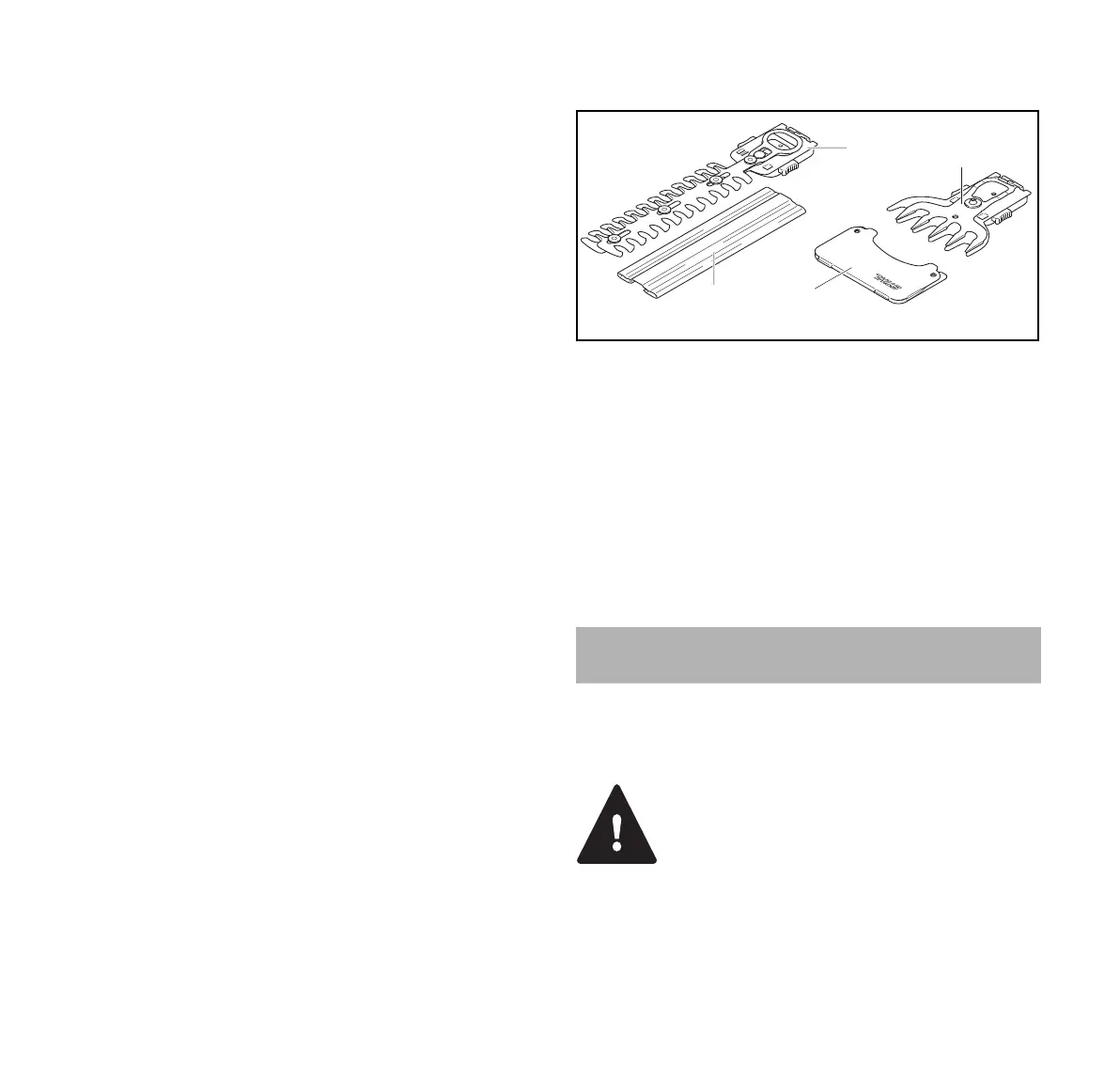

3.2 Cutting Attachments
1 Shrub Blades
Steel blades for cutting shrubs.
2 Blade Scabbard
Covers the shrub blades to reduce the risk of injury from
inadvertent contact during transportation and storage.
3 Grass Blades
Steel blades for cutting grass.
4 Blade Scabbard
Covers the grass blades to reduce the risk of injury from
inadvertent contact during transportation and storage.
4.1 Garden Shears, Battery and Charger
The following safety symbols are found on the garden
shears, battery and/or charger:
4 Safety Symbols on the Products
To reduce the risk of injury, follow the specified
safety precautions.
1
3
4
2
