HT 102, HT 103, HT 132, HT 133
English
32

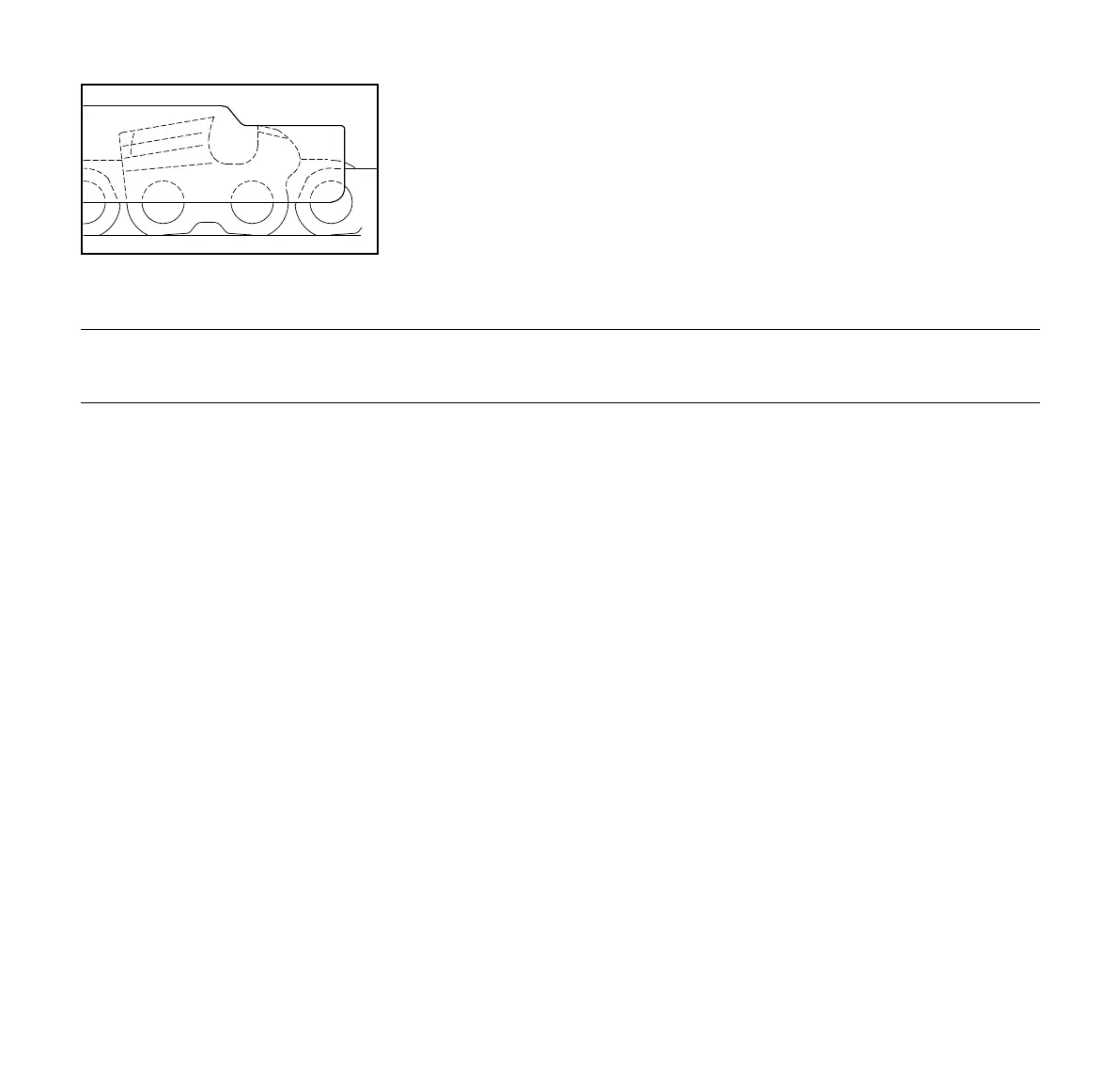

N Place the filing gauge on the chain –
the highest point of the depth gauge
must be level with the filing gauge.
N After sharpening, clean the chain
thoroughly, remove filings or
grinding dust – lubricate the chain
thoroughly.
N Before a long out-of-service period,
clean the chain and store it in a well-
oiled condition.
Sharpening Tools (special accessories)
Chain pitch Round file ^ Round file File holder Filing gauge Flat file Sharpening kit
1)
inch (mm) mm (inch) Part No. Part No. Part No. Part No. Part No.
1/4 P (6,35) 3,2 (1/8) 5605 771 3206 5605 750 4300 0000 893 4005 0814 252 3356 5605 007 1000
1/4 (6,35) 4,0 (5/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
3/8 P (9,32) 4,0 (5/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
0.325 (8,25) 4,8 (3/16) 5605 772 4806 5605 750 4328 1110 893 4000 0814 252 3356 5605 007 1028
3/8 (9,32) 5,2 (13/64) 5605 772 5206 5605 750 4329 1110 893 4000 0814 252 3356 5605 007 1029
1)
consisting of file holder with round file, flat file and filing gauge
