16
English / USA
HT
Operation of the STIHL HT attachment
is permitted only in combination with the
following basic power tools:
STIHL FC 83, STIHL FC 85,
STIHL FC 110, STIHL FH 75,
STIHL FR 85, STIHL FS 83
1)
,
STIHL FS 85
1) 2)
, STIHL FS 90
1),
STIHL FS 110
1)
2)
, STIHL FS 130
1),
STIHL HL 73 (not HL 73 K),
STIHL HL 75 (not HL 75 K),
STIHL HL 100 (not HL 100 K),
STIHL KW 85
Other combinations of the
attachment and non-approved
power tools are not permitted since
they may result in accidents or
serious personal injury.
1)
Loop-handled versions only
2)
not RX versions
Preparations

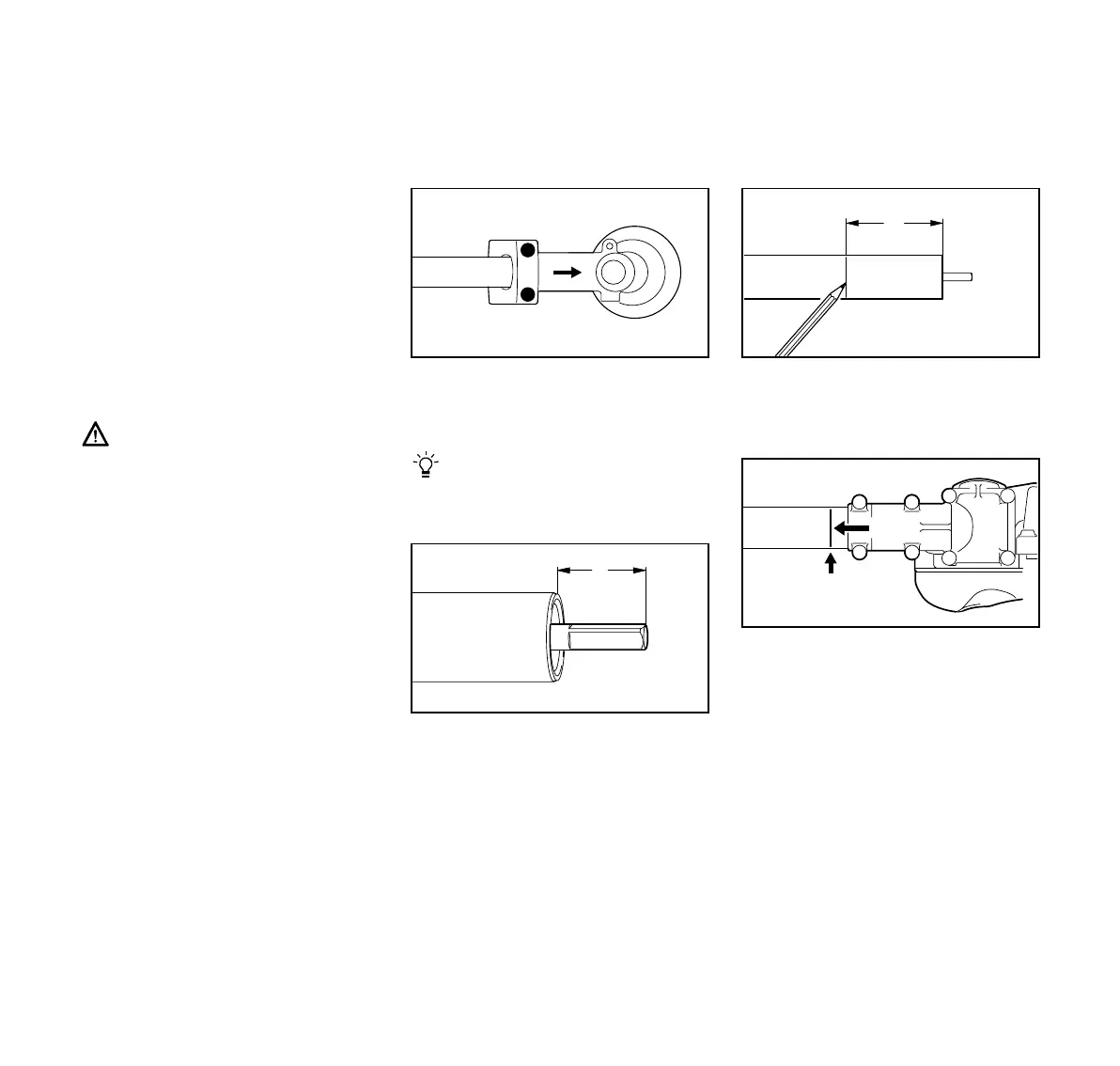

: Loosen the clamp screws on the
gearbox and then pull the gearhead
off the drive tube.
The drive shaft may slip out of the
tube when you pull off the gearhead.
If this happens, push the drive shaft
back into the tube.
The drive shaft must not project from the
tube more than L = 0.9" (22 mm). If
necessary, apply slight pressure to the
drive shaft and rotate it slowly at the
same time until it can be pushed in to the
required length.
Mounting the Attachment
: Apply a mark to the drive tube at a
distance A of 2“ (50 mm).
: Push the gearbox (1) onto the drive
tube (2) as far as stop – turn the
gearbox back and forth until the
square end of the shaft engages.
The gearbox is correctly positioned if it
reaches or covers the mark (see arrow).
Approved Basic Power
Tools
Mounting the Pole Pruner
402BA001 KN
381BA015 KN
L
A
402BA002 KN
2
402BA023 KN
1
