3 Main Parts

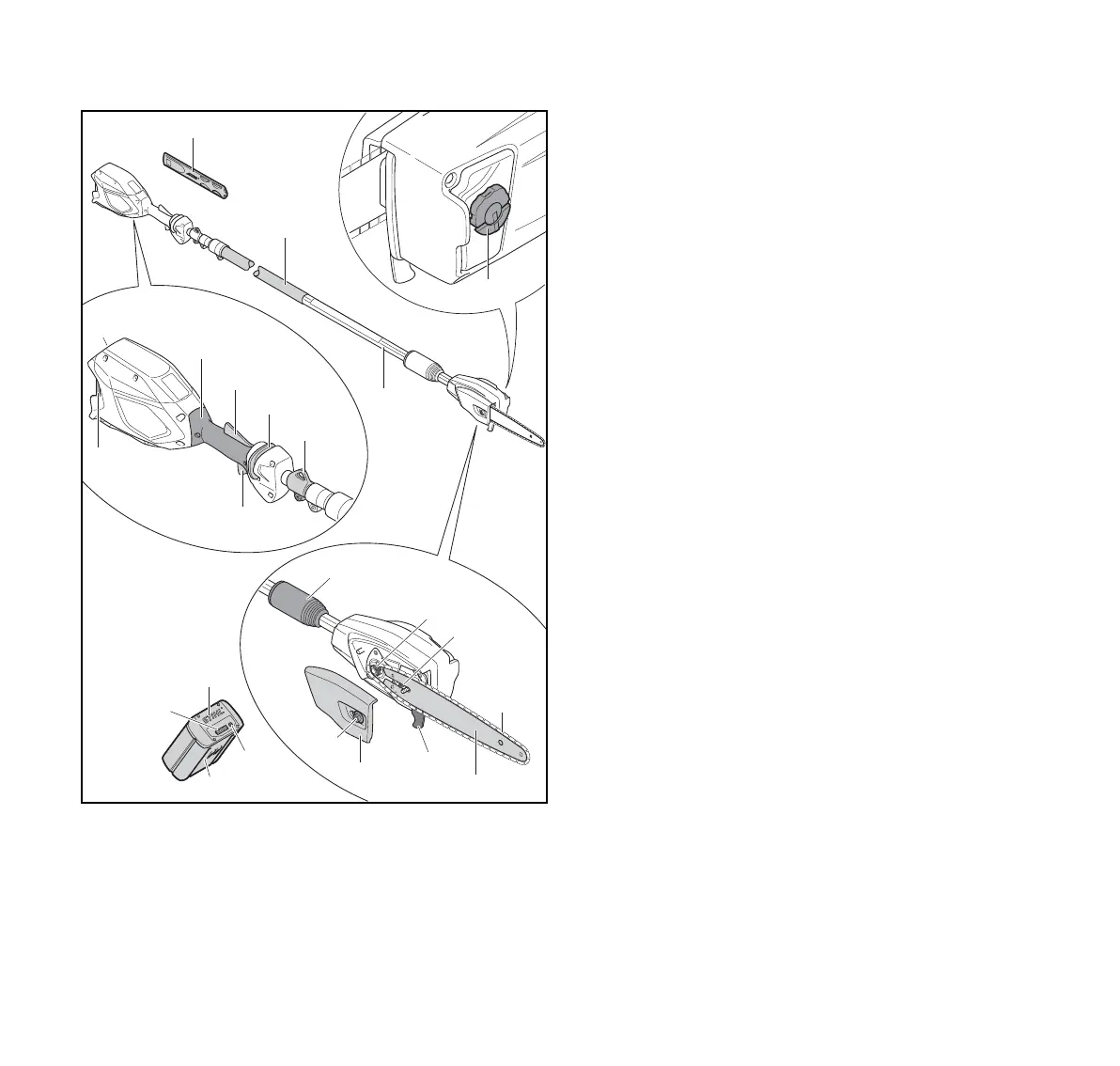

3.2 STIHL HTA 86 Pole Pruner and Battery
1 Chain Scabbard
Covers the guide bar and saw chain to reduce the risk of
injury from inadvertent contact during transportation and
storage.
2 Front Handle
Handle for the operator's front hand.
3Drive Tube
Pole pruner shaft.
4 Oil Filler Cap
For closing the oil tank.
5 Battery Compartment
Holds the battery.
6 Control Handle
Handle for the operator's rear hand.
7 Ergo-Lever
Holds the retaining latch in the unlocked position.
8 Retaining Latch
Locks/unlocks the trigger switch.
9 Carrying Ring
For connecting a harness to the pole pruner.
10 Trigger Switch
Switches the motor on and off.
11 Locking Levers
Secure the battery in the battery compartment.
12 Clamping Nut
For adjusting the length of the drive tube.
13 Chain Sprocket
Drives the saw chain.
14 Side Chain Tensioner
Permits precise adjustment of saw chain tension.
15 Saw Chain
Toothed cutting tool consisting of cutters, tie straps and
drive links.
16 Guide Bar
Supports and guides the saw chain.
17 Hook
Helps hold the pole pruner steady against the branch
during cutting.
18 Chain Sprocket Cover
Covers the chain sprocket.
