The following STIHL KombiTools may be
mounted on the KombiEngine
1)
Barrier bar must be mounted on
loop handle
2)
Unsuitable or not approved for
KombiEngines with bike handle
Fitting the handlebar
: Place the clamp (1) and handle
support (2) on the drive tube (3).
: Position the handlebar (4) in the
handle support – the rubber grip (5)
must be on the left (viewed from
engine).
: Place clamp (6) on handle support.
: Insert screws (7) in the holes and
screw down as far as stop in clamp.
: Secure handlebar (4) on the drive
tube (3) at distance (A) of approx.
15 cm (6 in) from the powerhead.
: Align the handlebar.
: Tighten down the screws firmly.
KombiTool Purpose
FS-KM Brushcutter with
mowing head
FS-KM
1)
Brushcutter with
grass cutting blade
HL-KM 0/90°
1) 2)
Hedge trimmer,
adjustable
HL-KM 135°
1) 2)
Hedge trimmer,
adjustable
HL-KM 0°
2)
Hedge trimmer
FH-KM
1)
Power scythe
HT-KM
2)
Pole pruner
BF-KM
1)
Pick tine cultivator
FCB-KM
2)
FCS-KM
2)
Power edger
KB-KM
2)
Bristle brush
KW-KM
2)
PowerSweep

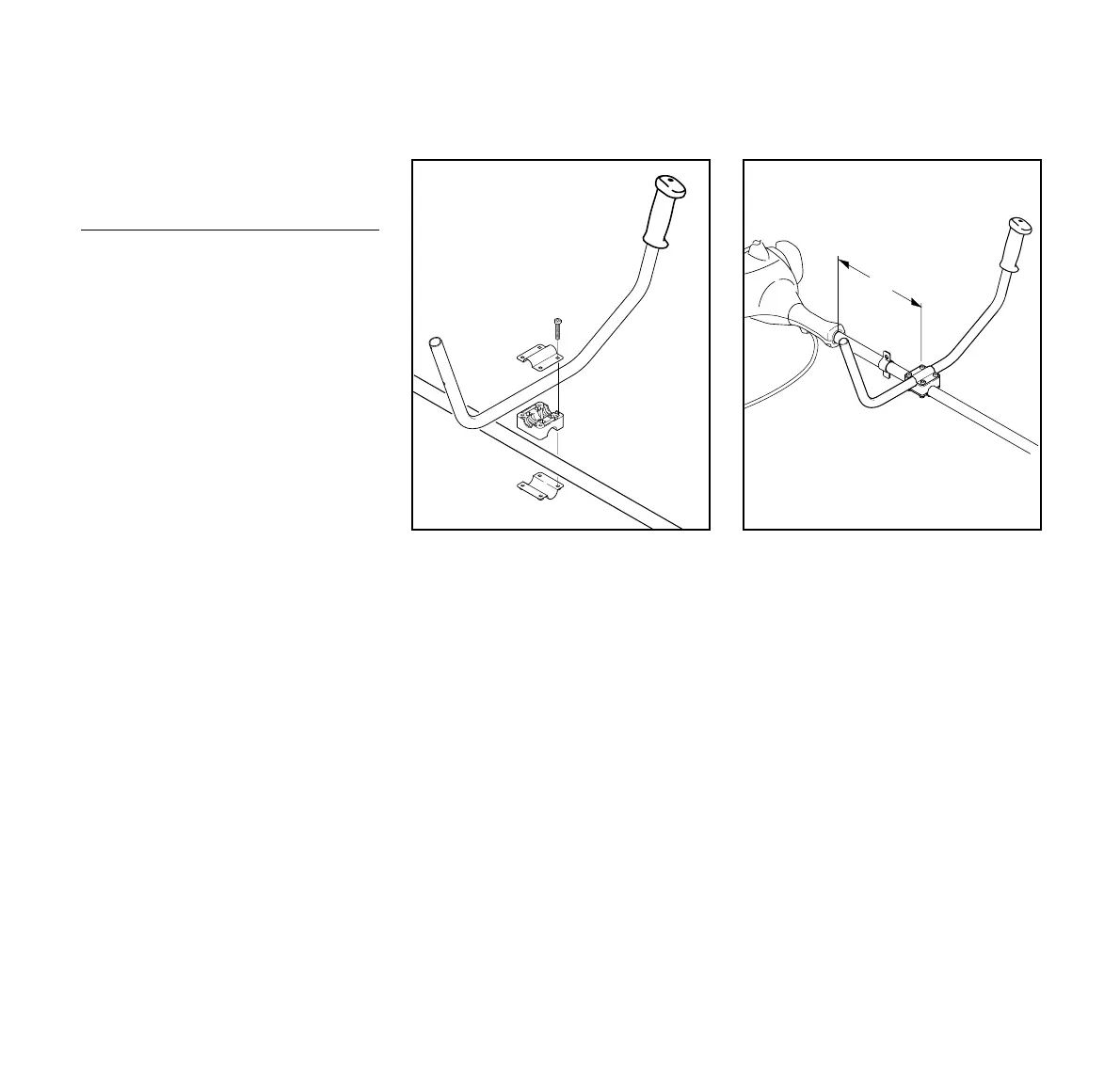

Mounting the Bike Handle
1
3
2
5
7
6
4
233BA025 KN
4
A
3
233BA018 KN
