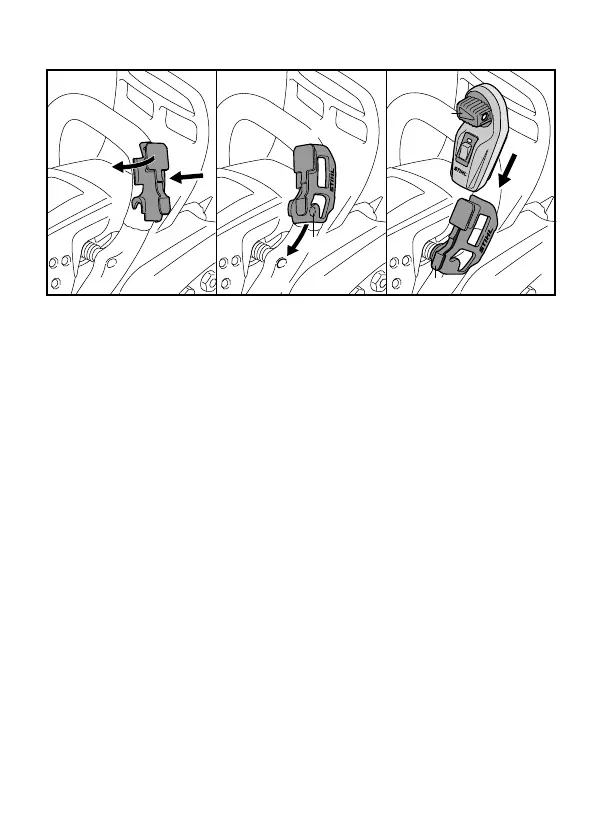

Fitting the Holder
: Attach the model-specific holder to the side of the handlebar and turn
it through about 90°.
: Slide the holder downwards until the latch (a) snaps into place. If
necessary, clean the clamping and locking points - it must engage
audibly and be firmly seated without any play.
: Fit the Laser 2-in-1 in position and push it down until it engages - to
remove, press the lever (b) against the handlebar and pull the
Laser 2-in-1 off vertically.
b
a
684BA042 KN
