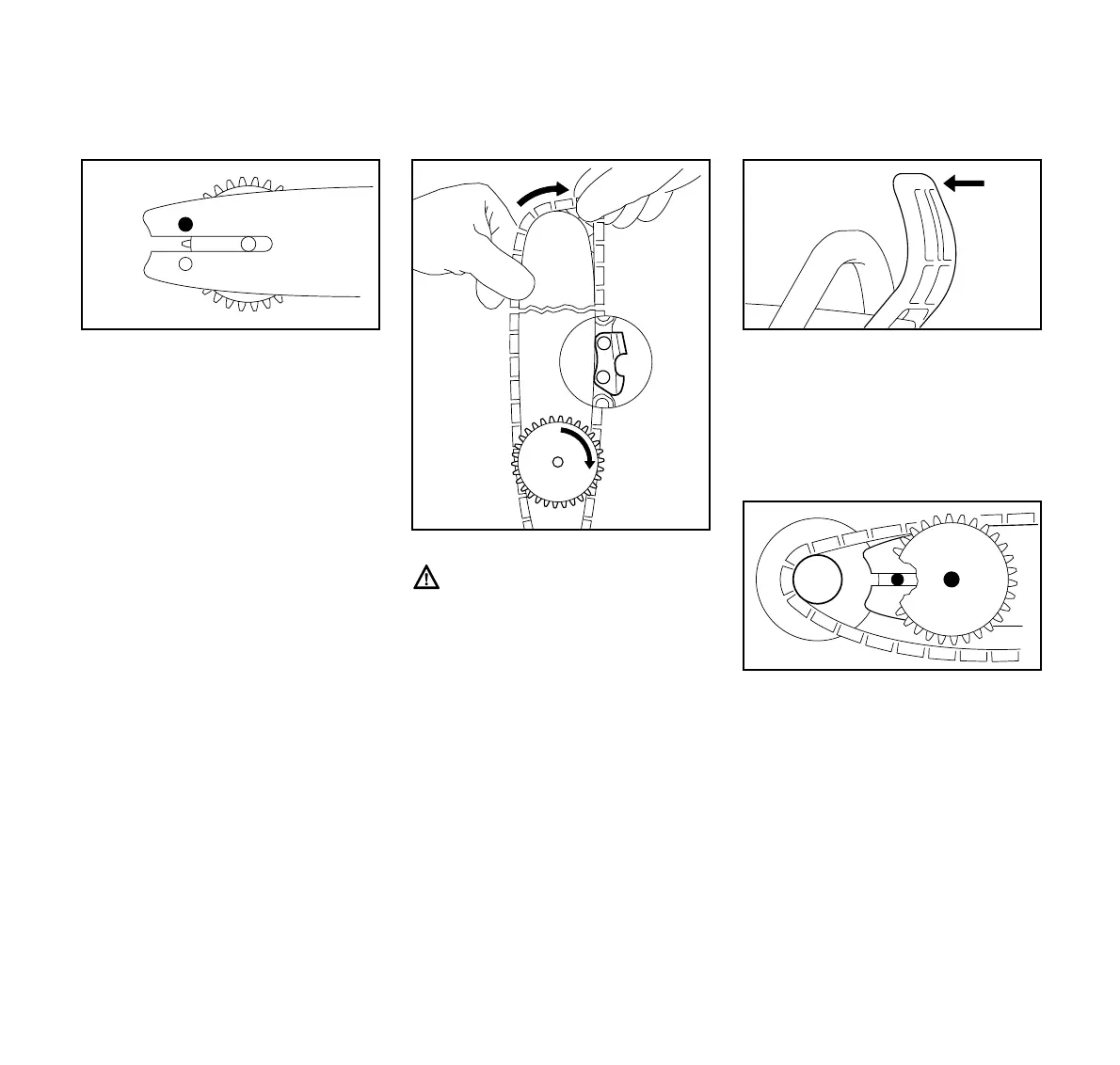

: Fit and tighten down the screw (8).
Wear work gloves to protect your
hands from the sharp cutters!
: Fit the chain – start at the bar nose.
Pay attention to the position of the
tensioning gear and the cutting
edges.
: Turn the tensioning gear (7)
clockwise as far as stop.
: Disengage the chain brake: Pull
hand guard (9) back towards the
front handle.
: Turn the guide bar so that the
tensioning gear is facing you.
: Fit the chain over the sprocket (10).
: Fit the guide bar over the collar
screw (11), the head of the rear
collar screw must locate in the slot.
8
135BA007 KN
7
1
40BA004 KN
140BA005 KN
9
10
11
140BA006 KN

Stihl MS 170 Specifications

General

Idle speed	- RPM
Chain pitch	3/8 \
Blade length	350 mm
Product color	Black, Orange, White
Automatic oiling	Yes
Oil tank capacity	0.145 L
Fuel tank capacity	0.25 L
Engine displacement	30.1 cm³
Engine power	1.7 hp
Power source	Gasoline

Weight and Dimensions

Weight	3900 g
