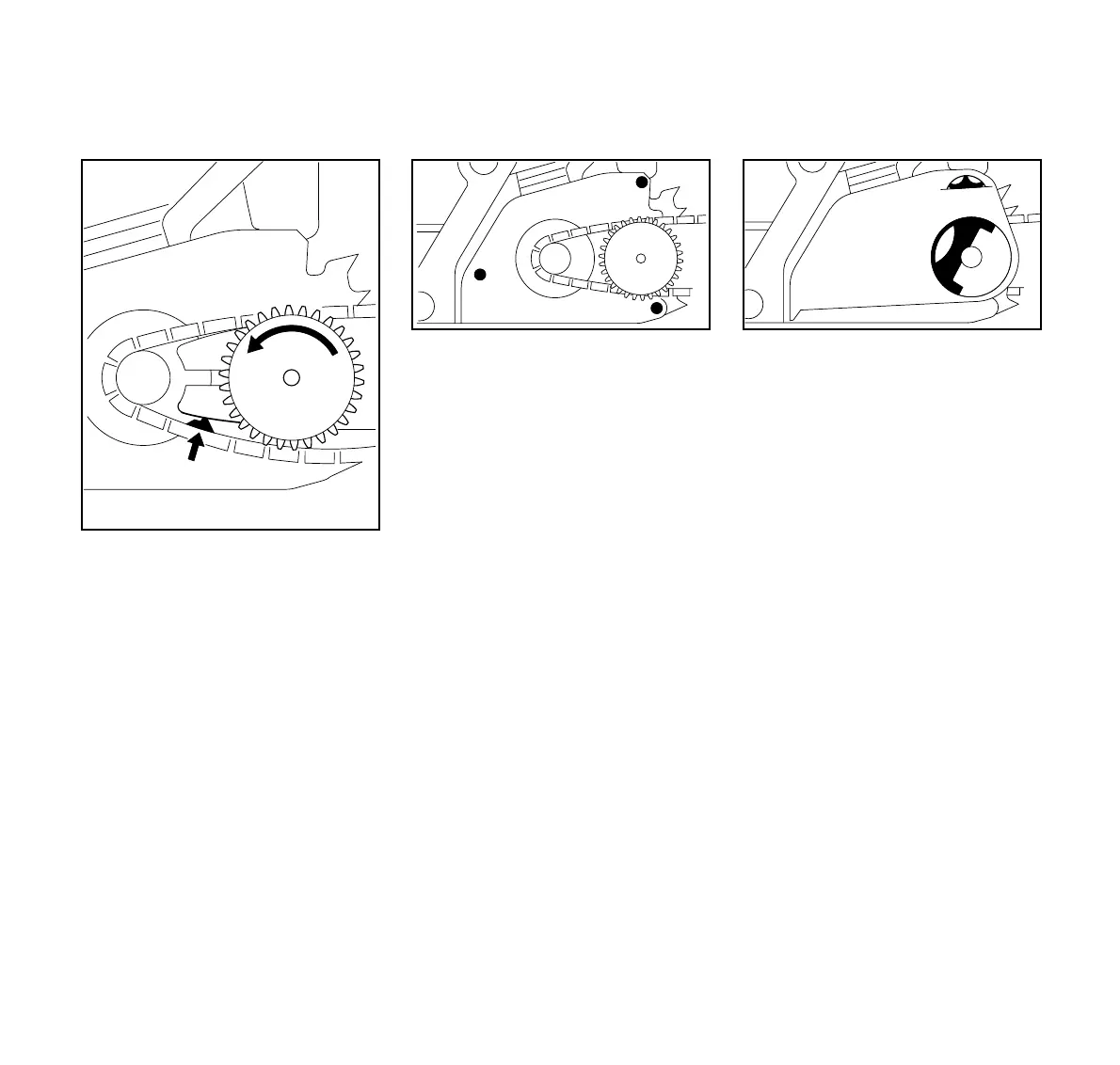

: Make sure the drive link tangs
engage the bar groove (see arrow)
and then rotate tensioning gear
counterclockwise as far as stop.
: Place the chain sprocket cover in
position and engage guide lugs in
recesses in engine housing at the
same time.
: When fitting the chain sprocket
cover, check that the teeth of the
tensioning gear and adjusting wheel
mesh properly. If necessary, turn the
adjusting wheel (12) slightly until the
sprocket cover can be pushed flush
against the engine housing.
: Pull out the hinged handle (13) so
that it snaps into position.
: Engage wingnut and tighten it down
moderately.
Go to "Tensioning the Saw Chain".
135BA011 KN
135BA012 KN
13
140BA007 KN
12

Stihl MS 170 Specifications

General

Idle speed	- RPM
Chain pitch	3/8 \
Blade length	350 mm
Product color	Black, Orange, White
Automatic oiling	Yes
Oil tank capacity	0.145 L
Fuel tank capacity	0.25 L
Engine displacement	30.1 cm³
Engine power	1.7 hp
Power source	Gasoline

Weight and Dimensions

Weight	3900 g
