20 MS 171, MS 181, MS 211

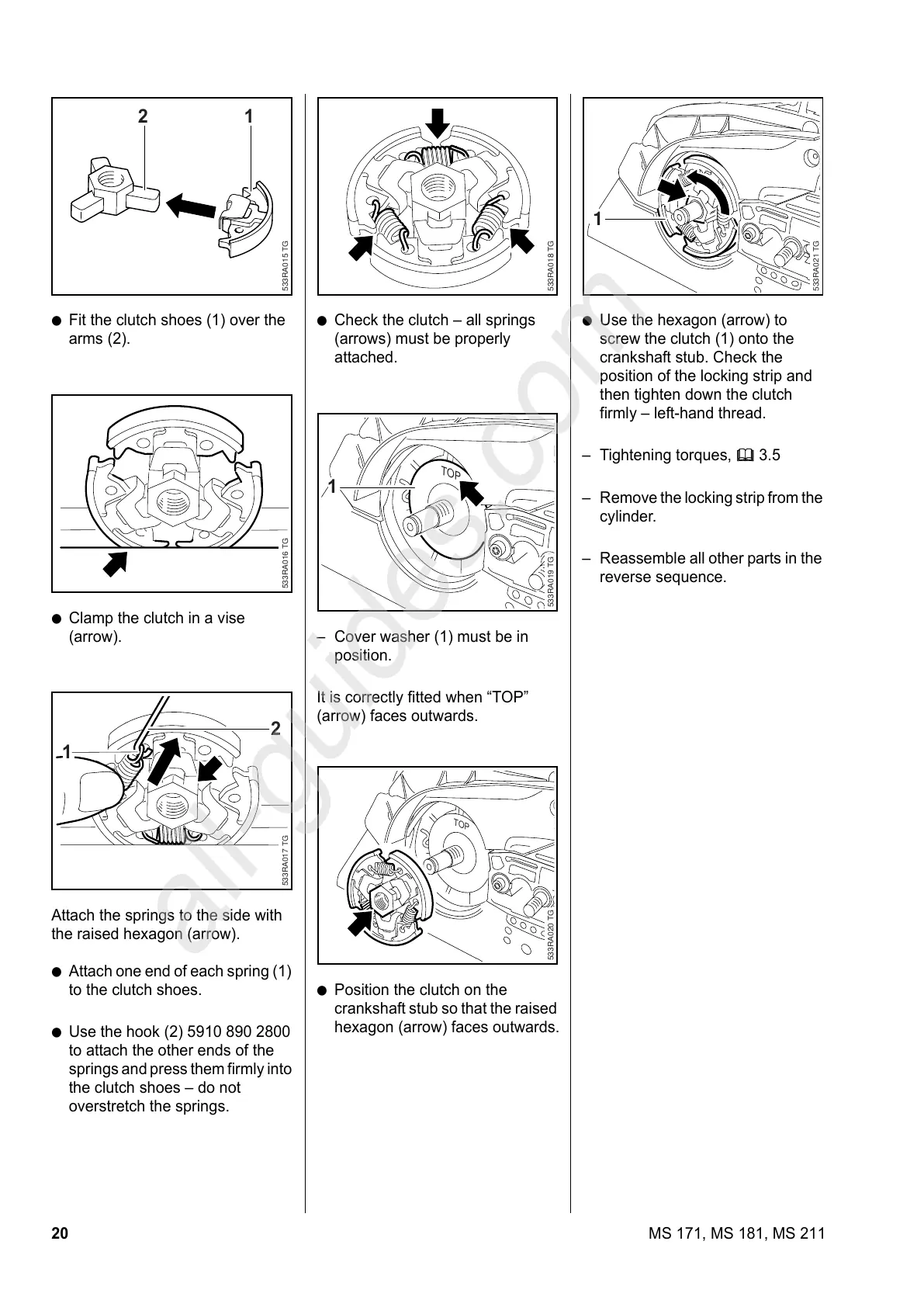

: Fit the clutch shoes (1) over the
arms (2).
: Clamp the clutch in a vise
(arrow).
Attach the springs to the side with
the raised hexagon (arrow).
: Attach one end of each spring (1)
to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach the other ends of the
springs and press them firmly into
the clutch shoes – do not
overstretch the springs.
533RA015 TG
12
533RA016 TG
1
2
533RA017 TG
: Check the clutch – all springs
(arrows) must be properly
attached.
– Cover washer (1) must be in
position.
It is correctly fitted when “TOP”
(arrow) faces outwards.
: Position the clutch on the
crankshaft stub so that the raised
hexagon (arrow) faces outwards.
533RA018 TG
TOP
533RA019 TG
1
TOP
533RA020 TG
: Use the hexagon (arrow) to
screw the clutch (1) onto the
crankshaft stub. Check the
position of the locking strip and
then tighten down the clutch
firmly – left-hand thread.
– Tightening torques, b 3.5
– Remove the locking strip from the
cylinder.
– Reassemble all other parts in the
reverse sequence.
TOP
533RA021 TG
1
