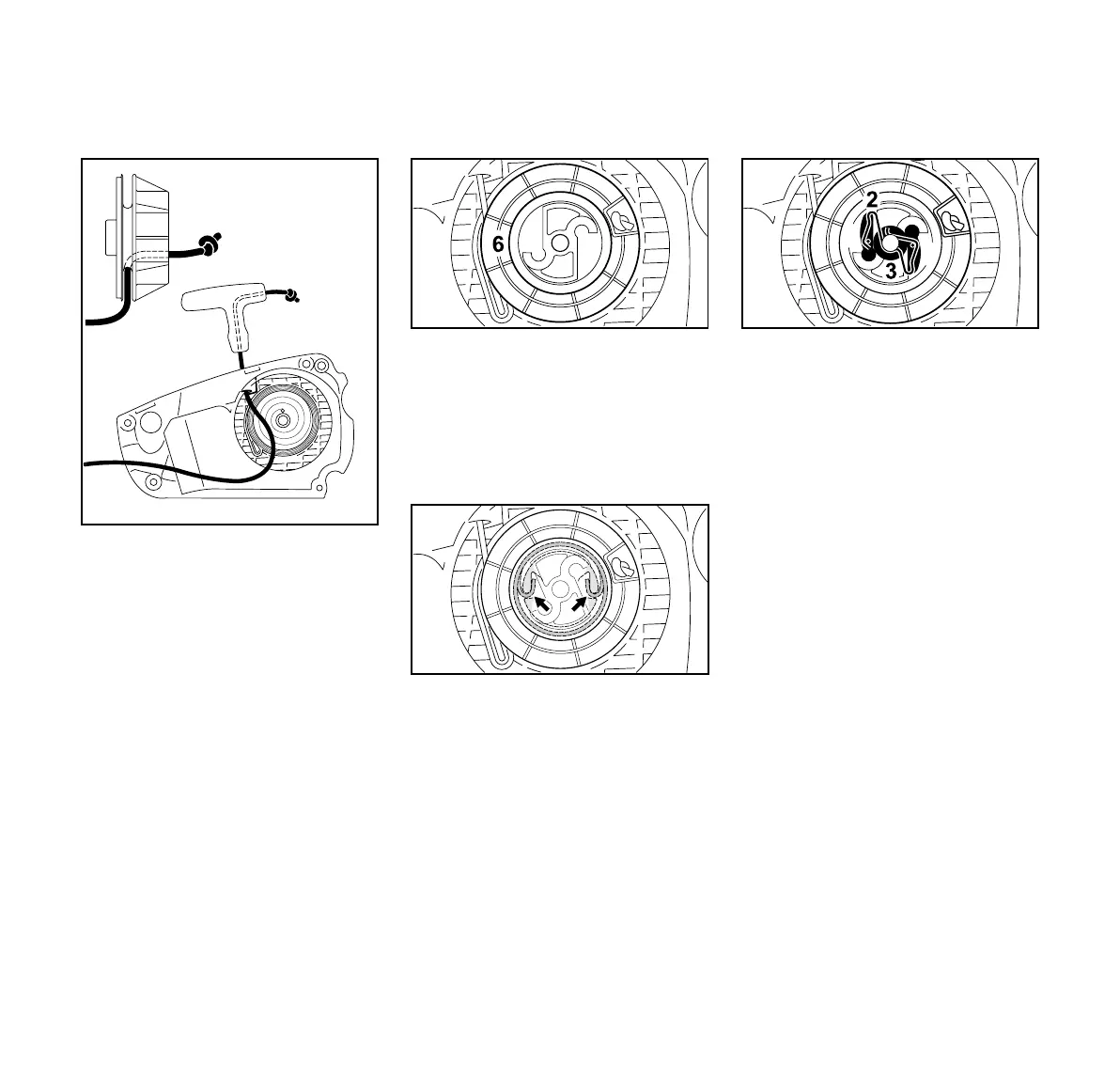

: Thread the rope through the top of
the guide bushing (5).
: Pull the starter rope through the
rotor and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
resin-free oil.
: Slip the rope rotor (6) with carrier (7)
over the starter post – turn it back
and forth to engage anchor loop of
the rewind spring.
: The spring under the carrier must
engage the rope rotor and the
carrier (arrows).
: Fit the pawls (4) in the rope rotor.
: Fit the washer (3) on the starter
post.
: Use a screwdriver or suitable pliers
to install the spring clip (2) on the
starter post and engage it on the
pawls’ pegs – the spring clip must
point clockwise as shown in the
illustration.
5
151BA032 KN
151BA033 KN
7
151BA024 KN
4
151BA031 KN
4

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
