Stihl MS 192 TC User Manual

MS 192 T, MS 192 TC
English
19

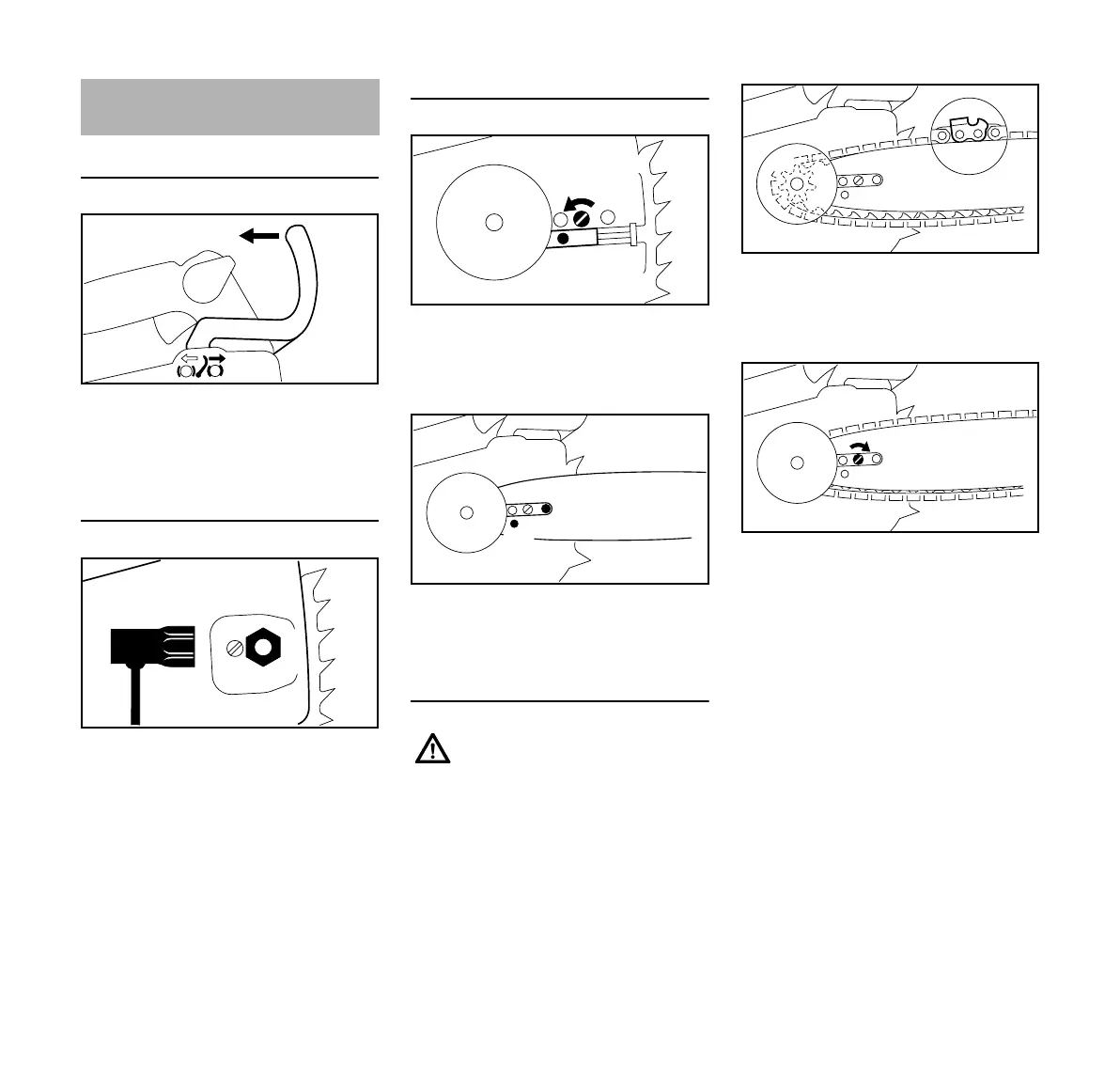

Releasing the chain brake
N Pull the hand guard (4) toward the
control handle until there is an
audibleclick – the chain is
disengaged.
Removing the chain sprocket cover
N Unscrew the nut (5) and remove the
cover (6).
Mounting the guide bar
N Turn the screw (7)
counterclockwise until the tensioner
slide (8) butts against left end of
housing slot.
N Fit the guide bar over the stud (9)
and engage the peg of the tensioner
slide in the locating hole (10).
Fitting the chain
N Fit chain around the sprocket (11)
and over the guide bar – cutting
edges on top of bar must point to
bar nose.
N Turn the tensioning screw (7)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove.
Mounting the Bar and
Chain
4
142BA057 KN
5
6
142BA058 KN
Wear work gloves to protect your
hands from the sharp cutters.
142BA059 KN
7
8
142BA060 KN
10
9
11
142BA061 KN
7
142BA062 KN

Stihl MS 192 TC Specifications

General

Engine Displacement	30.1 cm³
Fuel Capacity	0.27 L
Chain Oil Capacity	0.22 L
Chain pitch	3/8" P
Oilomatic saw chain type	Picco Micro Mini 3 (PMM3)
Power Output	1.3 kW
Guide Bar Length	30-35 cm
Guide bar lengths (recommended)	30-35 cm
