N Refit the sprocket cover –
the pivot pin on the hand guard must
engage the sleeve – and then screw
the nut onto the stud fingertight.
N Go to chapter on "Tensioning the
Saw Chain"
Retensioning during cutting work:
N Switch off the engine.
N Loosen the nut.
N Hold the bar nose up.
N Use a screwdriver to turn the
tensioning screw (1) clockwise until
the chain fits snugly against the
underside of the bar.
N While still holding the bar nose up,
tighten down the nut firmly.
N Go to "Checking Chain Tension".
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".
N Shut off the engine.
N Wear work gloves to protect your
hands.
N The chain must fit snugly against
the underside of the bar and it must
still be possible to pull the chain
along the bar by hand when the
chain brake is released.
N If necessary, retension the chain.
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".

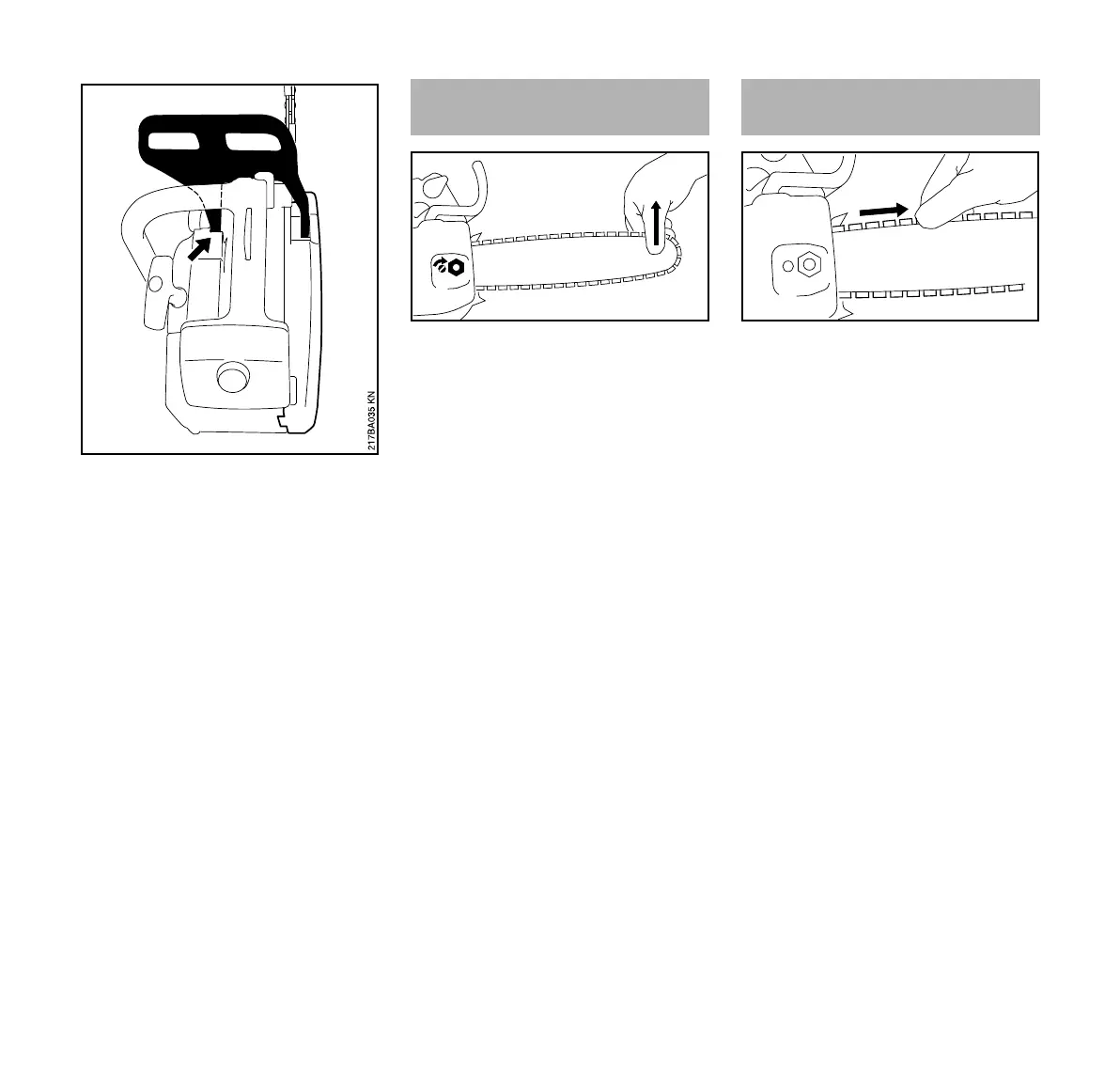

Tensioning the Saw Chain
(side chain tensioner)
1
142BA063 KN
Checking Chain Tension
142BA064 KN

Stihl MS 192 TC Specifications

General

Engine Displacement	30.1 cm³
Fuel Capacity	0.27 L
Chain Oil Capacity	0.22 L
Chain pitch	3/8" P
Oilomatic saw chain type	Picco Micro Mini 3 (PMM3)
Power Output	1.3 kW
Guide Bar Length	30-35 cm
Guide bar lengths (recommended)	30-35 cm
