Stihl MS 192 TC User Manual

MS 192 T, MS 192 TC
English
37
N Take one turn of the rope off the
rotor.
Replacing a broken rewind spring
N Remove the rope rotor.
N Use a screwdriver to carefully
remove the parts of the spring from
the housing.
N Lubricate the new spring with a few
drops of non-resinous oil.

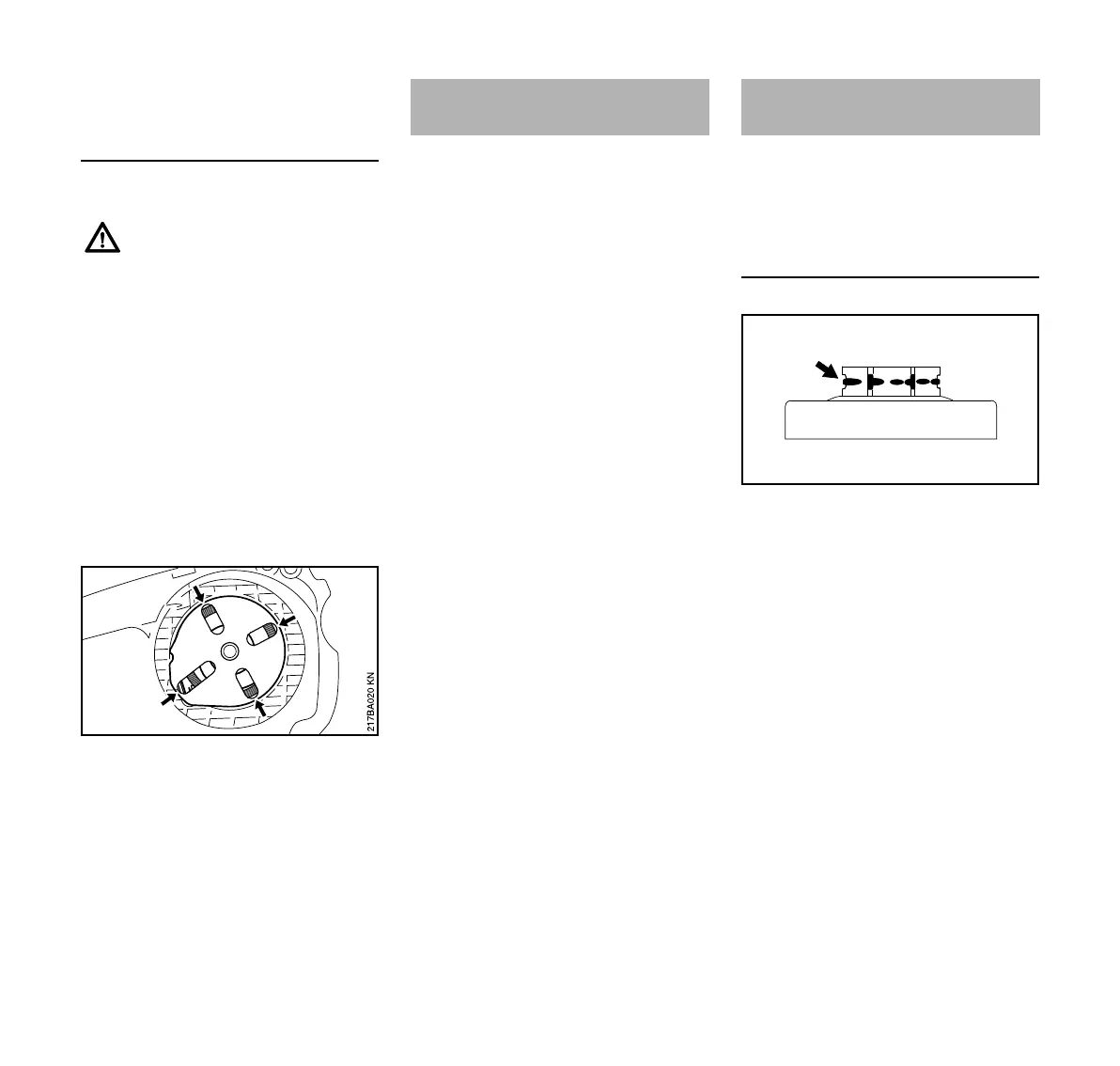

N Place the new spring with retaining
frame in position in the fan housing
– the anchor loop must engage the
lug in the housing.
N Apply suitable tools (screwdriver,
punch, etc.) to the recesses
(arrows) and push the spring into its
seat – it slips out of the retaining
frame in this process.
N Reinstall the rope rotor, tension the
rewind spring, fit the fan housing
and secure in position.
For periods of 3 months or longer
N Drain and clean the fuel tank in a
well ventilated area.
N Dispose of fuel properly in
accordance with local
environmental requirements.
N Run the engine until the carburetor
is dry – this helps prevent the
carburetor diaphragms sticking
together.
N Remove the saw chain and guide
bar, clean them and spray with
corrosion inhibiting oil.
N Thoroughly clean the machine –
pay special attention to the cylinder
fins and air filter.
N If you use a biological chain and bar
lubricant, e.g. STIHL BioPlus,
completely fill the chain oil tank.
N Store the machine in a dry, high or
locked location, out of the reach of
children and other unauthorized
persons.
N Remove the chain sprocket cover,
chain and guide bar.
N Disengage the chain brake: Pull
hand guard toward the front handle.
Replace the chain sprocket
– after using two saw chains or
sooner
– if the wear marks (arrows) on the
sprocket are deeper than approx.
0.02 in (0.5 mm) since this would
reduce the life of the chain. You can
use a gauge (special accessory) to
check the depth of the wear marks.
It is best to use two saw chains in
rotation with one sprocket.
STIHL recommends the use of original
STIHL sprockets to ensure correct
operation of the chain brake.
The bits of spring must still be
under tension and could fly apart
when you take them out of the
housing. To reduce the risk of
injury, wear face protection and
work gloves.
Storing the Machine Checking and Replacing
the Chain Sprocket
001BA120 KN

Stihl MS 192 TC Specifications

General

Engine Displacement	30.1 cm³
Fuel Capacity	0.27 L
Chain Oil Capacity	0.22 L
Chain pitch	3/8" P
Oilomatic saw chain type	Picco Micro Mini 3 (PMM3)
Power Output	1.3 kW
Guide Bar Length	30-35 cm
Guide bar lengths (recommended)	30-35 cm
