Stihl MS 192 User Manual

MS 192 C
English
19

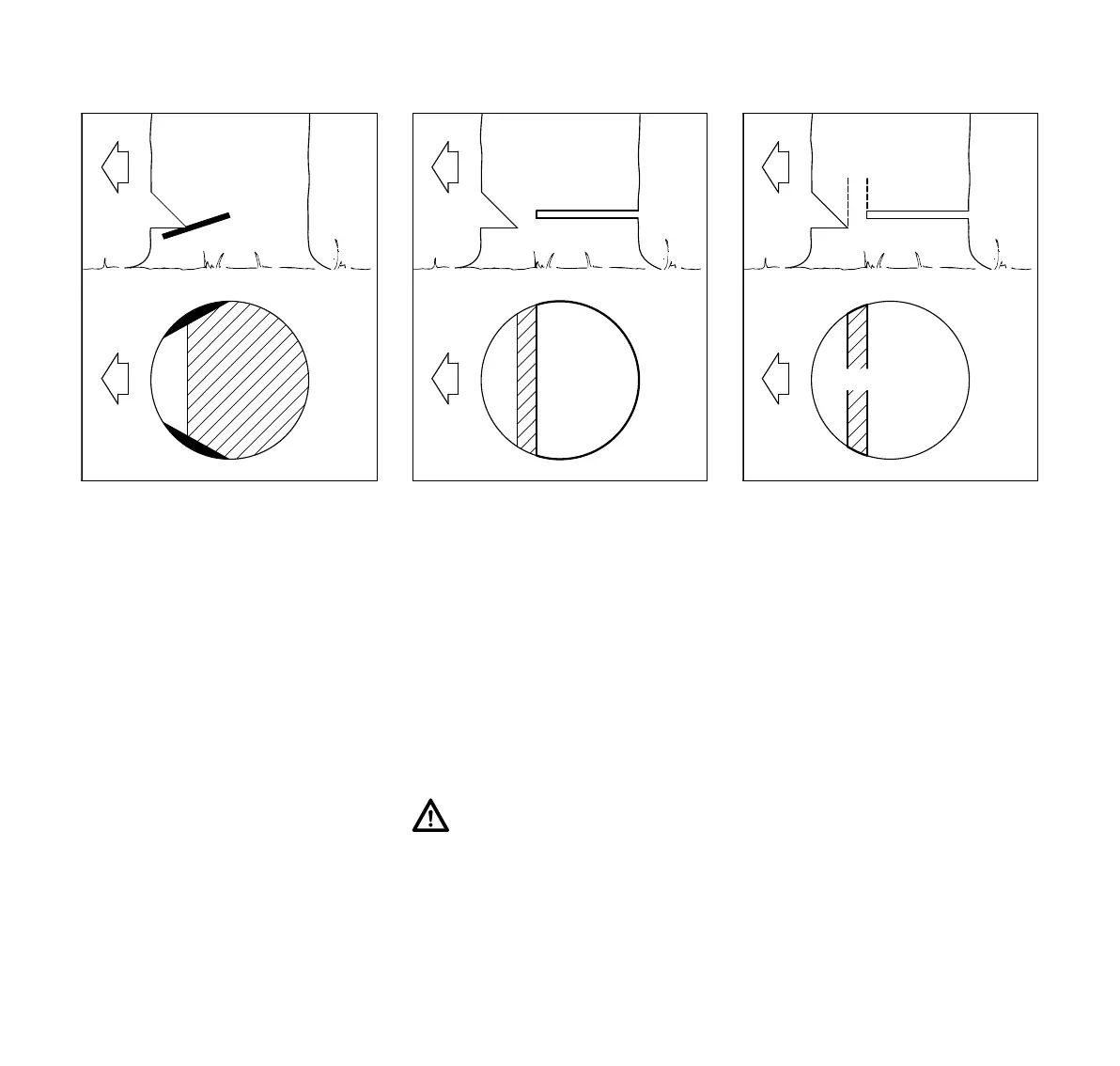

Making Sapwood Cuts
N For medium sized or larger trees
make cuts at both sides of the trunk,
at same height as subsequent
felling cut.
N Cut to no more than width of guide
bar.
This is especially important in softwood
in summer – it helps prevent sapwood
splintering when the tree falls.
D =Felling Cut
Conventional and open-face technique:
N Begin 1 to 2 inches (2,5 to 5 cm)
higher than center of felling notch.
N Cut horizontally towards the felling
notch.
N Leave approx.1/10 of diameter
uncut. This is the hinge.
N Do not cut through the hinge – you
could lose control of the direction of
the fall.
Drive wedges into the felling cut where
necessary to control the fall.
E = Hinge
N Helps control the falling tree.
N Do not cut through the hinge – you
could lose control of the direction of
the fall.
001BA150 KN
Warning!
If the tip of the bar contacts a wedge, it
may cause kickback. Wedges should be
of wood or plastic – never steel, which
can damage the chain.
001BA144 KN
D
D
001BA145 KN
E
E

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
