Stihl MS 192 User Manual

MS 192 C
English
24
STIHL is the only manufacturer in the
industry to produce its own chain saws,
guide bars, saw chains and chain
sprockets.

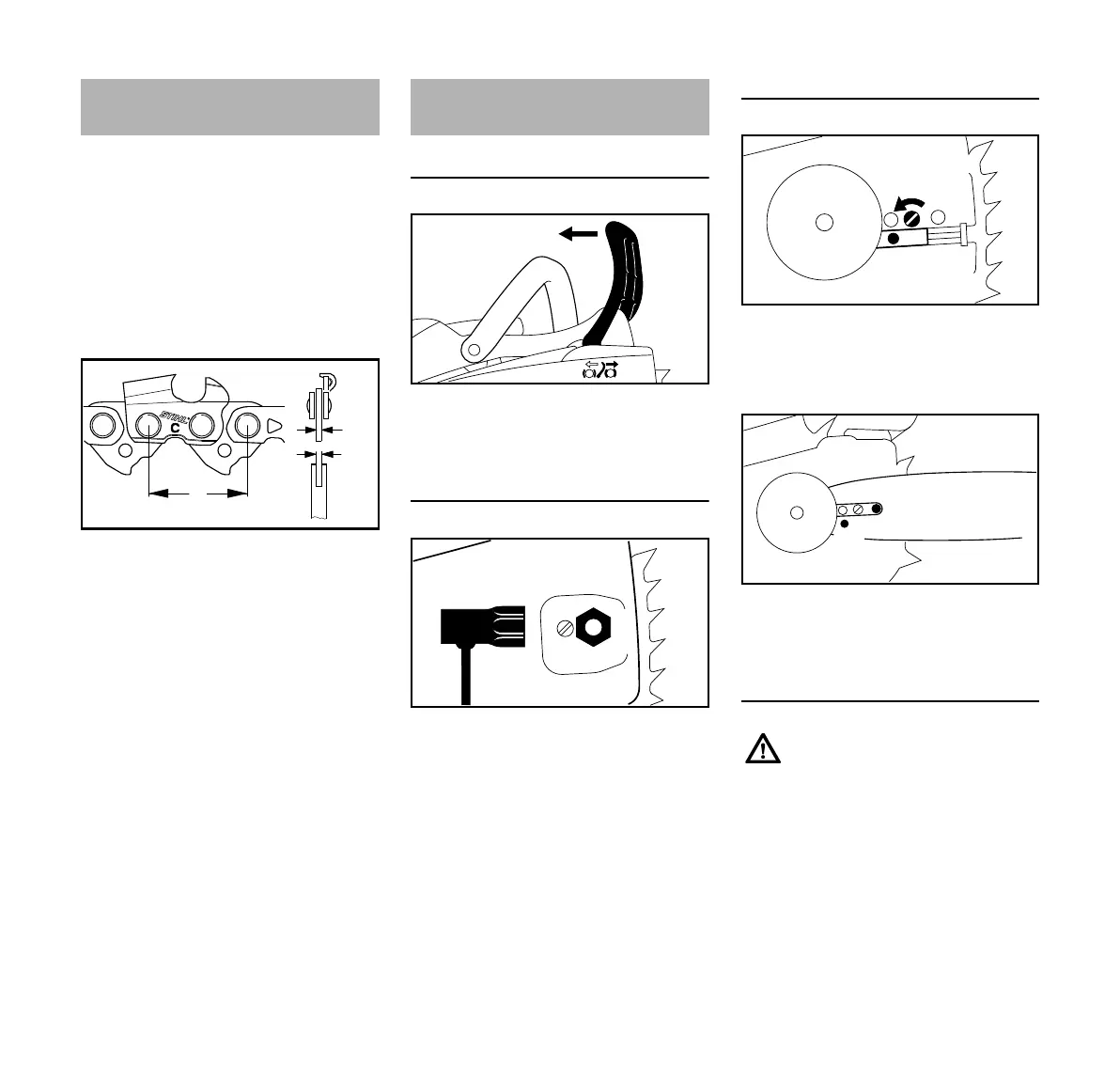

A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the chain saw.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Releasing the chain brake
N Pull the hand guard (4) toward the
handle until there is an audible click
– the chain is disengaged.
Removing the chain sprocket cover
N Unscrew the nut (5) and remove the
cover (6).
Mounting the guide bar
N Turn the screw (7)
counterclockwise until the tensioner
slide (8) butts against the left end of
the housing slot.
N Fit the guide bar over the stud (9)
and engage the peg of the tensioner
slide in the hole (10).
Fitting the chain
Cutting Attachment
001BA191 KN
1
2
3
a
t = a : 2
Mounting the Bar and
Chain
151BA002 KN
4
5
6
142BA058 KN
Wear work gloves to protect your
hands from the sharp cutters.
142BA059 KN
7
8
142BA060 KN
10
9

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
