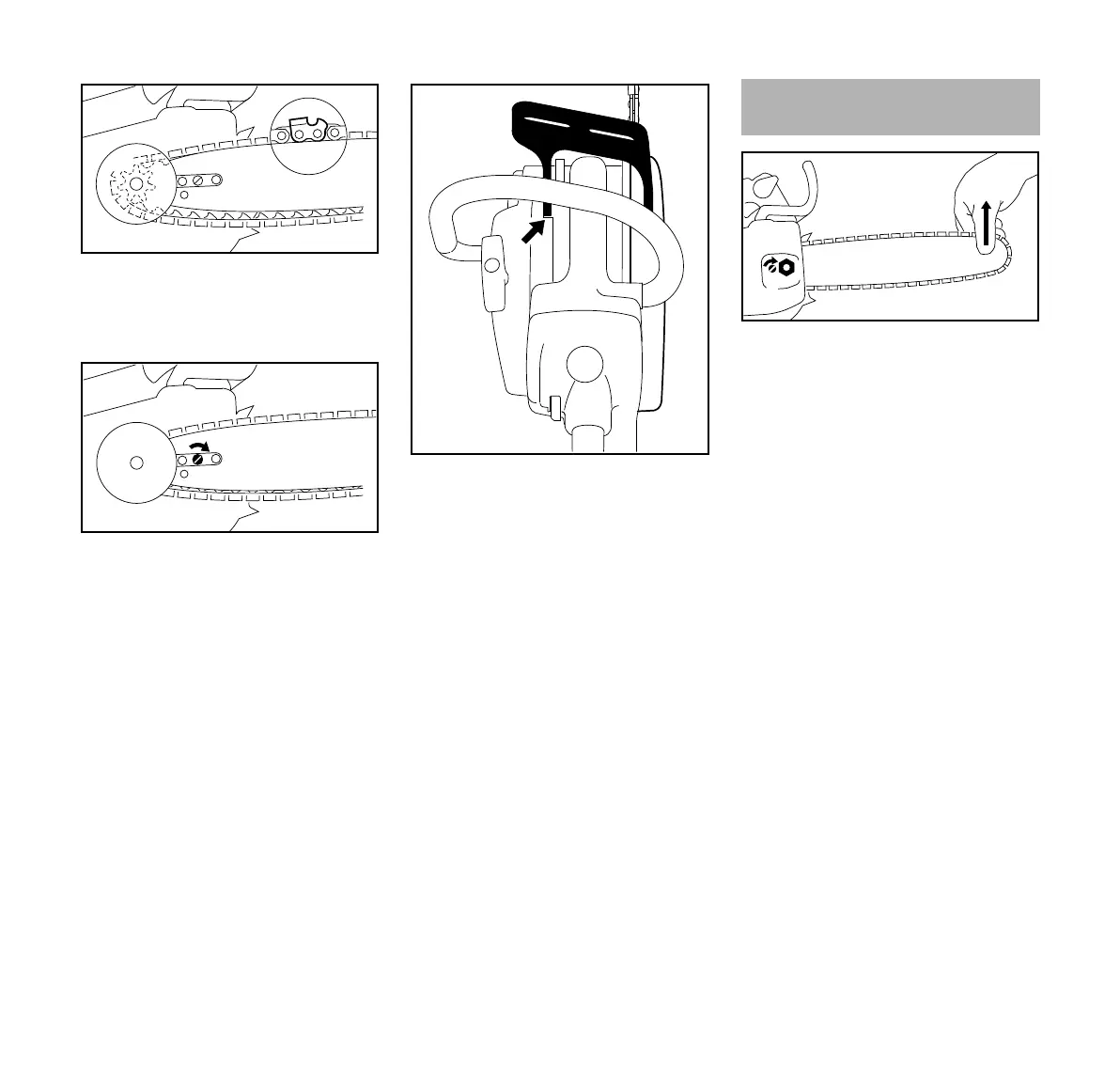

N Fit chain around the sprocket (11)
and over the guide bar – the cutting
edges on top of the bar must point to
the bar nose.
N Turn the tensioning screw (7)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove.
N Refit the chain sprocket cover –
the pivot pin on the hand guard must
engage the sleeve – and then screw
the nut onto the stud fingertight.
N Go to chapter on "Tensioning the
Saw Chain"
Retensioning during cutting work:
N Switch off the engine.
N Loosen the nut.
N Hold the bar nose up.
N Use a screwdriver to turn the
tensioning screw (1) clockwise until
the chain fits snugly against the
underside of the bar.
N While still holding the bar nose up,
tighten down the nut firmly.
N Go to "Checking Chain Tension".
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".
11
142BA061 KN
7
142BA062 KN
151BA003 KN
Tensioning the Chain
1
142BA063 KN

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
