Replacing the starter rope
: Remove the screws (1).
: Ease fan housing away from
crankcase and remove it sideways.
: Use screwdriver or suitable pliers to
carefully remove spring clip (2) from
the starter post.
: Carefully remove the rope rotor with
washer (3) and pawl (4).
The rewind spring may pop out and
uncoil during this operation.
: Ease the cap (5) out of the starter
grip.
: Remove remaining rope from the
rotor and grip – make sure the
sleeve is not pushed out of the grip.
: Tie a simple overhand knot in the
new rope and then thread it through
the top of the grip and the rope
bushing (6).
: Refit the cap in the grip.
: Thread the rope through the rotor
and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
non-resinous oil.
: Slip rotor over starter post – turn it
back and forth to engage anchor
loop of rewind spring.
: Refit the pawl (4) in the rotor.
: Fit the washer (3) on the starter
post.
: Use screwdriver or suitable pliers to
install spring clip (2) on starter post
and engage it on the pawl's peg –
the spring clip must point clockwise
– see illustration.

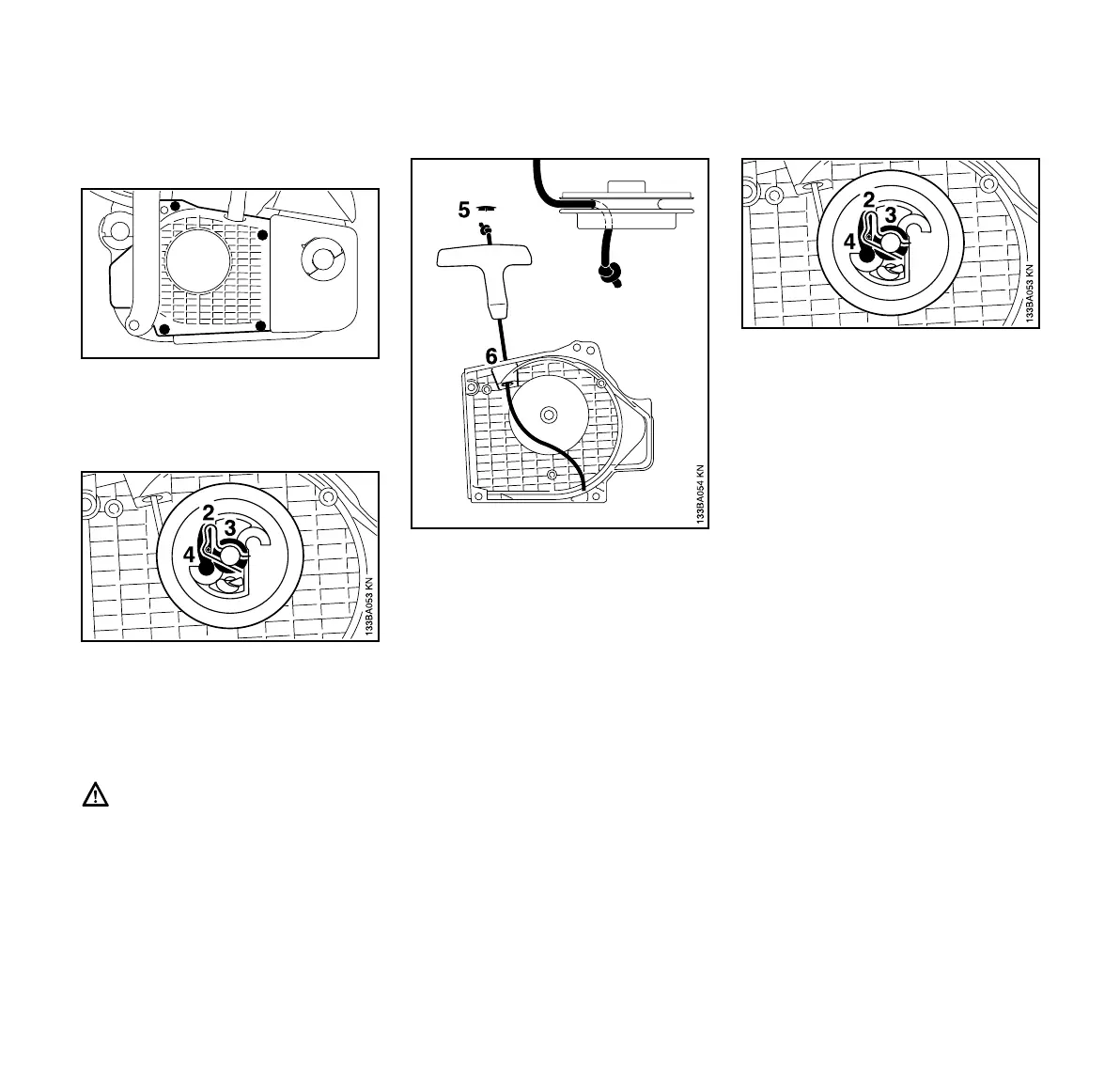

Replacing Starter Rope
and Rewind Spring
1
1
1
142BA078 KN
1
