41MS 200 T
English / USA

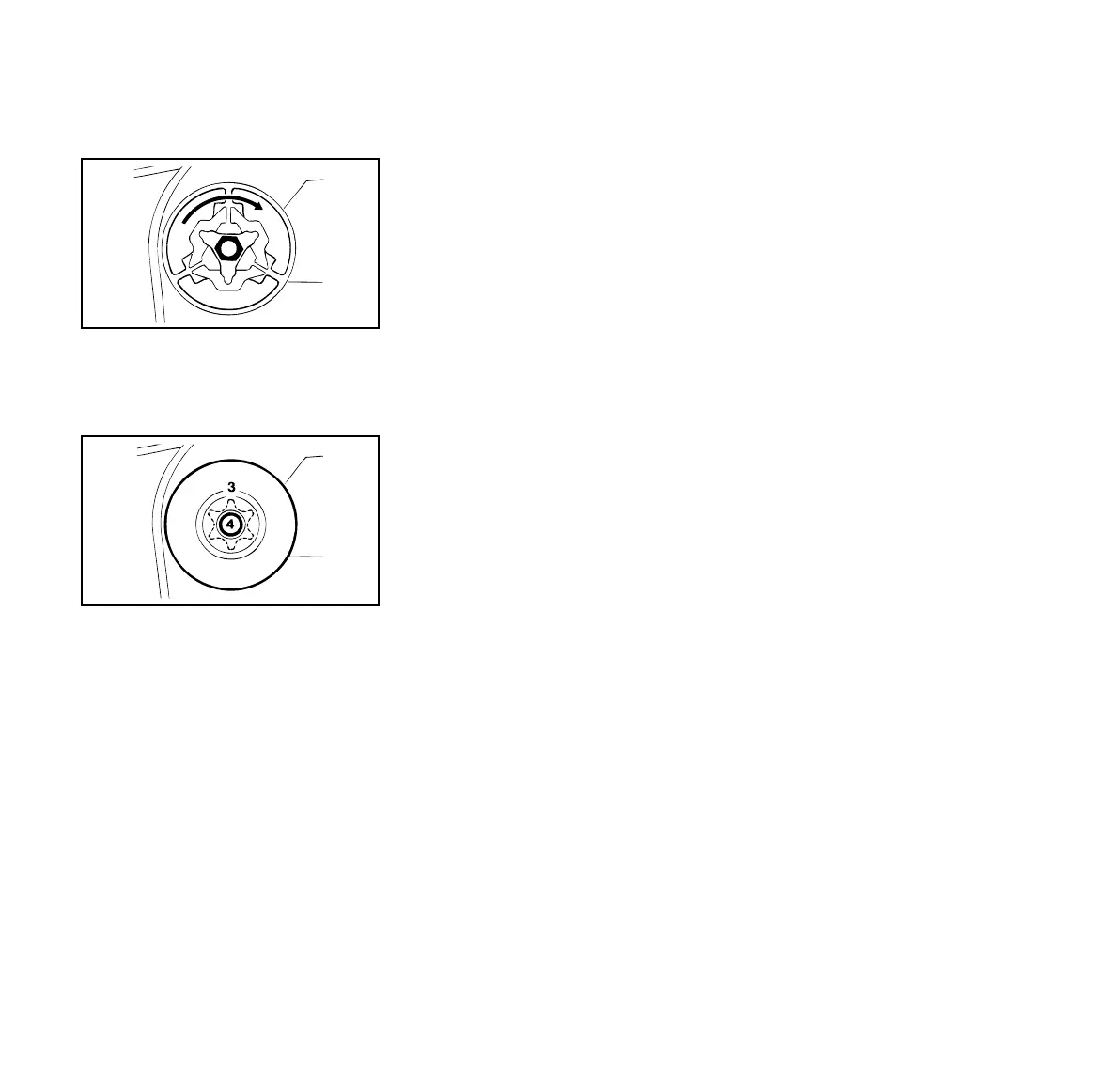

: Release clutch hexagon clockwise
(left-hand thread).
: Unscrew the clutch.
: Pull the chain sprocket (3) and
needle cage (4) off the crankshaft.
: Clean the crankshaft stub and
needle cage, and lubricate with
STlHL grease (“Special
Accessories”).
Assembly
: Push needle cage and chain
sprocket onto the crankshaft.
: Screw the clutch onto the crankshaft
(counterclockwise).
: Tighten down the clutch firmly.
: Remove locking strip from the
cylinder. Fit the spark plug and
tighten it down firmly.
: Refit boot on the spark plug.
144BA017 LÄ
144BA018 LÄ

Stihl MS 200 T Specifications

General

Engine Power	1.7 kW
Displacement	35.2 cm³
Fuel Capacity	0.31 L
Chain Oil Capacity	0.22 L
Oilomatic Chain Gauge	1.3 mm
Oilomatic Chain Pitch	3/8"
Chain Pitch	3/8"
Guide Bar Length	30 cm
