Stihl MS 200 T User Manual

48
English / USA
MS 200 T
1= Control handle
2= Throttle trigger interlock
3= Master Control lever
4= Throttle trigger
5= Two-way shutter
6= Spark plug boot
7= Muffler
8= Spark arresting screen*
9= Chain sprocket
10= Chain brake
11= Chain tensioner
12= Chain catcher
13= Oilomatic saw chain
14= Guide bar
15= Bumper spike
16= Oil filler cap
17= Hand guard
18= Front handle
19= Starter grip
20= Carburetor box cover
21= Twist lock
22= Fuel filler cap
23= Ring
#= Serial No.
* see “Guide to Using this Manual”

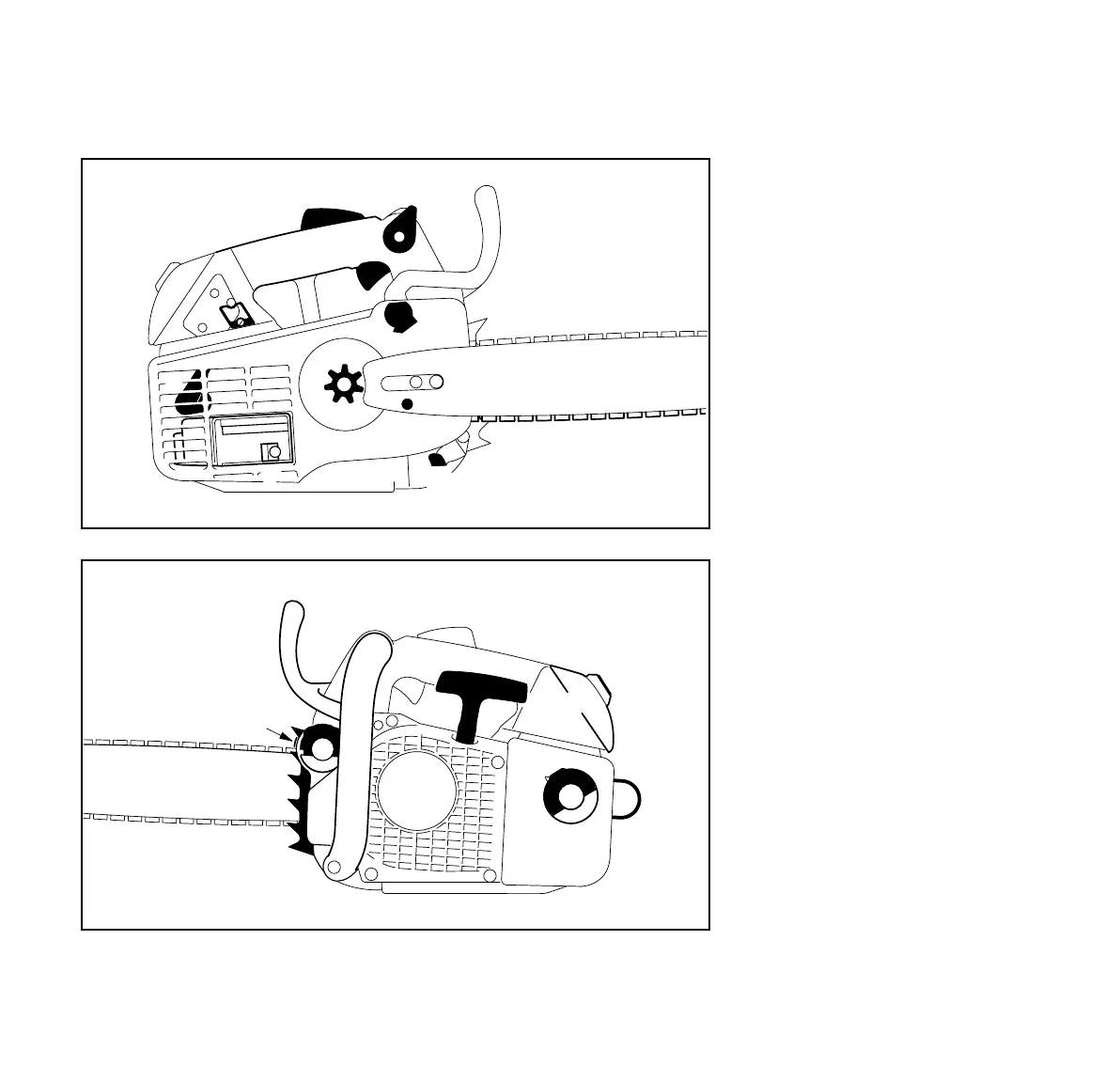

Parts and Controls
2
5
8
11
12
3
4
10
6
7
9
13
14
142BA080 KN
1
#
19
20
21
15
142BA081 KN
16
17
18
22
23

Stihl MS 200 T Specifications

General

Engine Power	1.7 kW
Displacement	35.2 cm³
Fuel Capacity	0.31 L
Chain Oil Capacity	0.22 L
Oilomatic Chain Gauge	1.3 mm
Oilomatic Chain Pitch	3/8"
Chain Pitch	3/8"
Guide Bar Length	30 cm
