27MS 200
English / USA

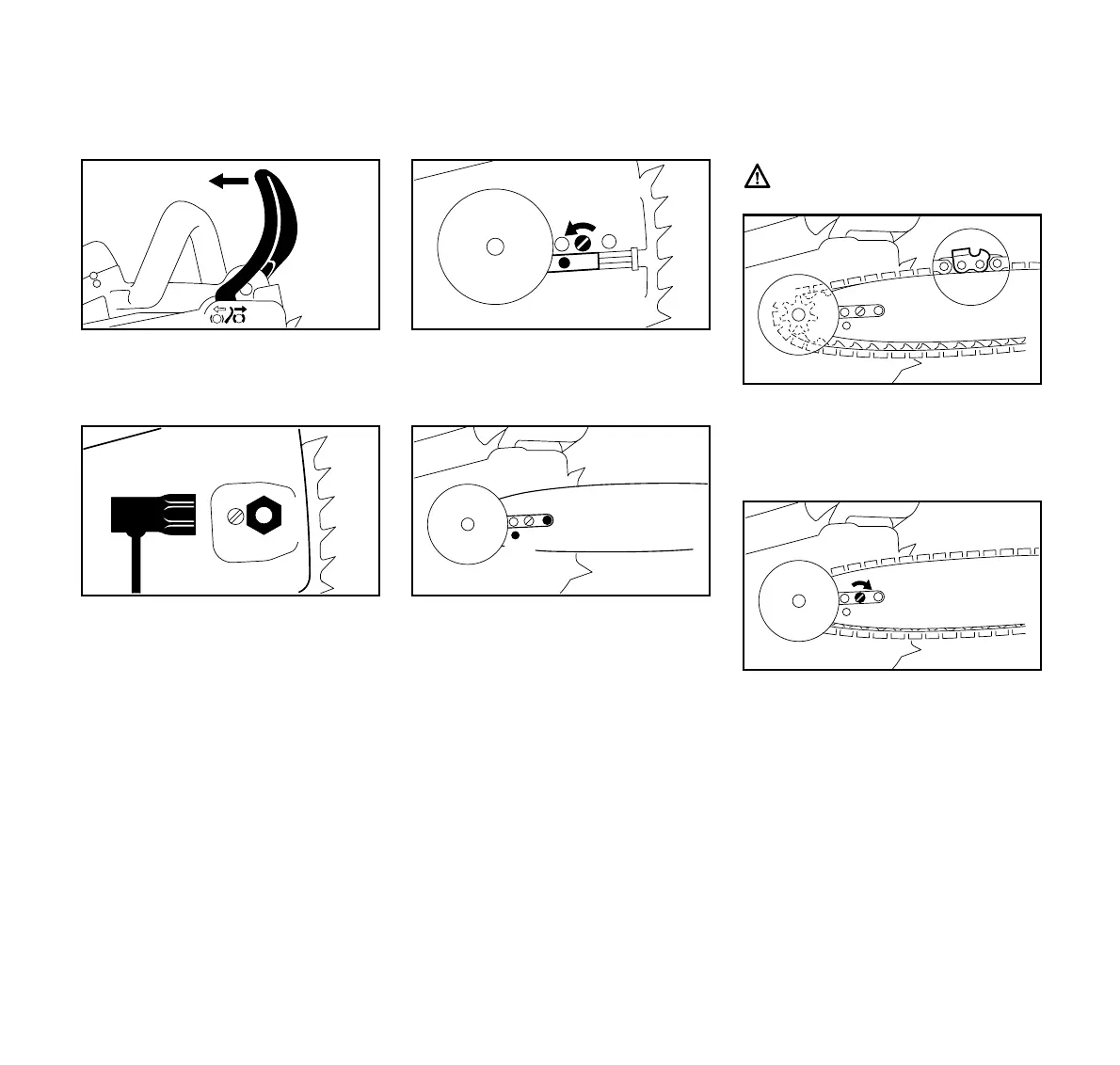

: Disengage the chain brake:
Pull the hand guard (4) toward
the handle.
: Unscrew the nut (5) and remove
the cover (6).
: Turn screw (7) counterclockwise
until the tensioner slide (8) butts
against left end of housing slot.
: Fit the guide bar over the stud (9)
and engage the peg of the tensioner
slide in locating hole (10).
Wear work gloves to protect your
hands.
: Fit chain around the sprocket (11)
and over the guide bar – cutting
edges on top of bar must point to
bar nose.
: Now turn tensioning screw (7)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
located in the bar groove.
4
161BA000 KN
5
6
142BA058 KN
142BA059 KN
7
8
142BA060 KN
10
9
11
142BA061 KN
7
142BA062 KN
