Stihl MS 201 C

MS 201, MS 201 C
English
24

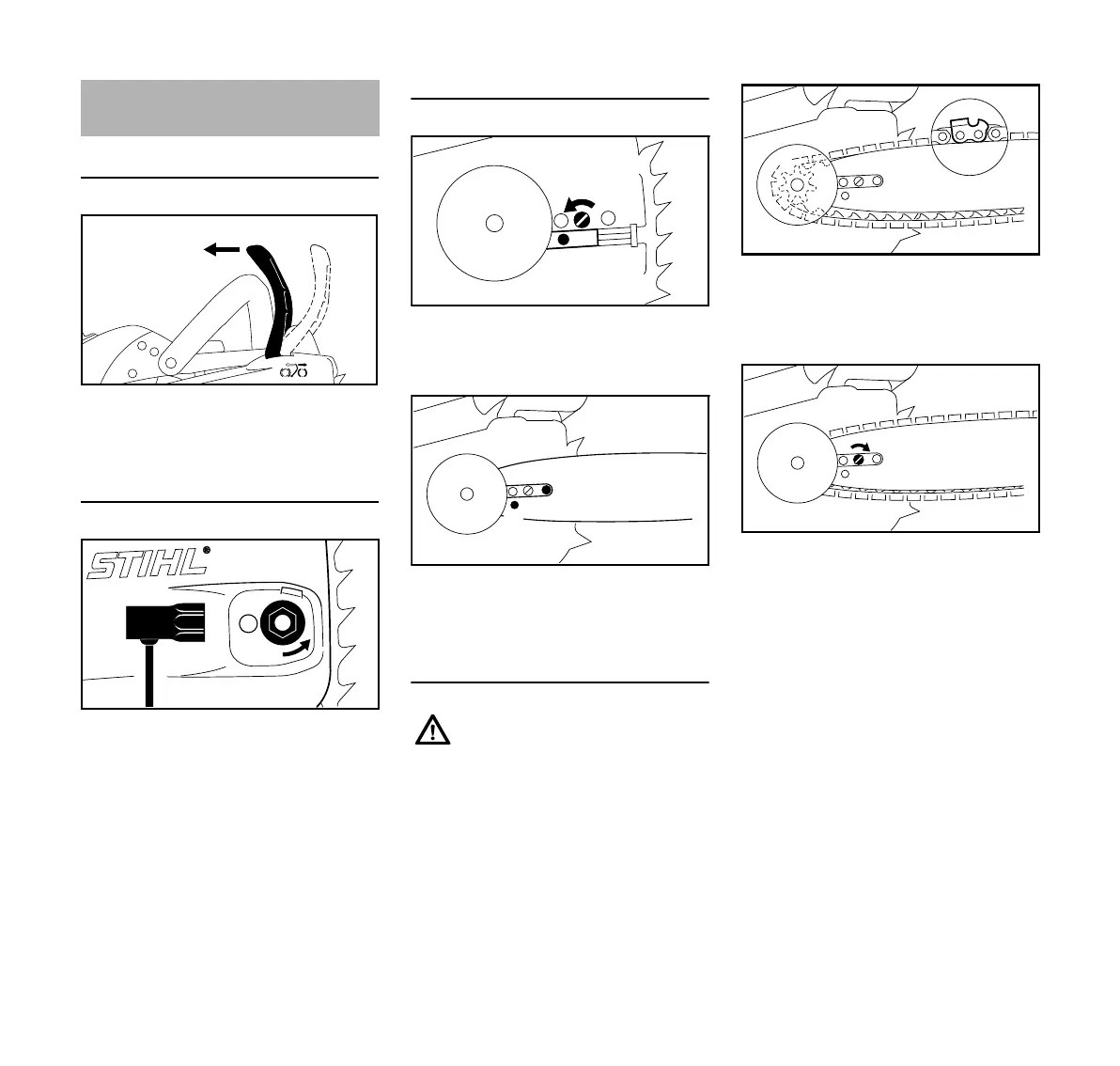

Releasing the chain brake
N Pull hand guard towards the front
handle until it engages audibly –
chain brake is released
Removing the chain sprocket cover
N Turn the captive nut (1) to the left
until it hangs loosely in the chain
sprocket cover
N Remove the chain sprocket
cover (2) with captive nut
Fitting the guide bar
N Turn screw (1) to the left until the
tensioner slide (2) butts against the
left end of the housing slot
N Fit the guide bar over the screw (3)
and engage the peg of the tensioner
slide in the locating hole (4)
Fitting the saw chain
N Fit saw chain around the sprocket
wheel (1) and over the guide bar –
the cutting edges of the teeth must
point to the right
N Turn screw (2) to the right until there
is very little chain sag on the
underside of the bar – and the drive
link tangs engage in the bar groove
Mounting the Bar and
Chain
0011BA001 KN
1
0011BA002 KN
2
Put on protective gloves – risk of
injury by the sharp cutters!
161BA027 KN
1
2
3
4
161BA028 KN
1
161BA029 KN
2
161BA030 KN
