29MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English

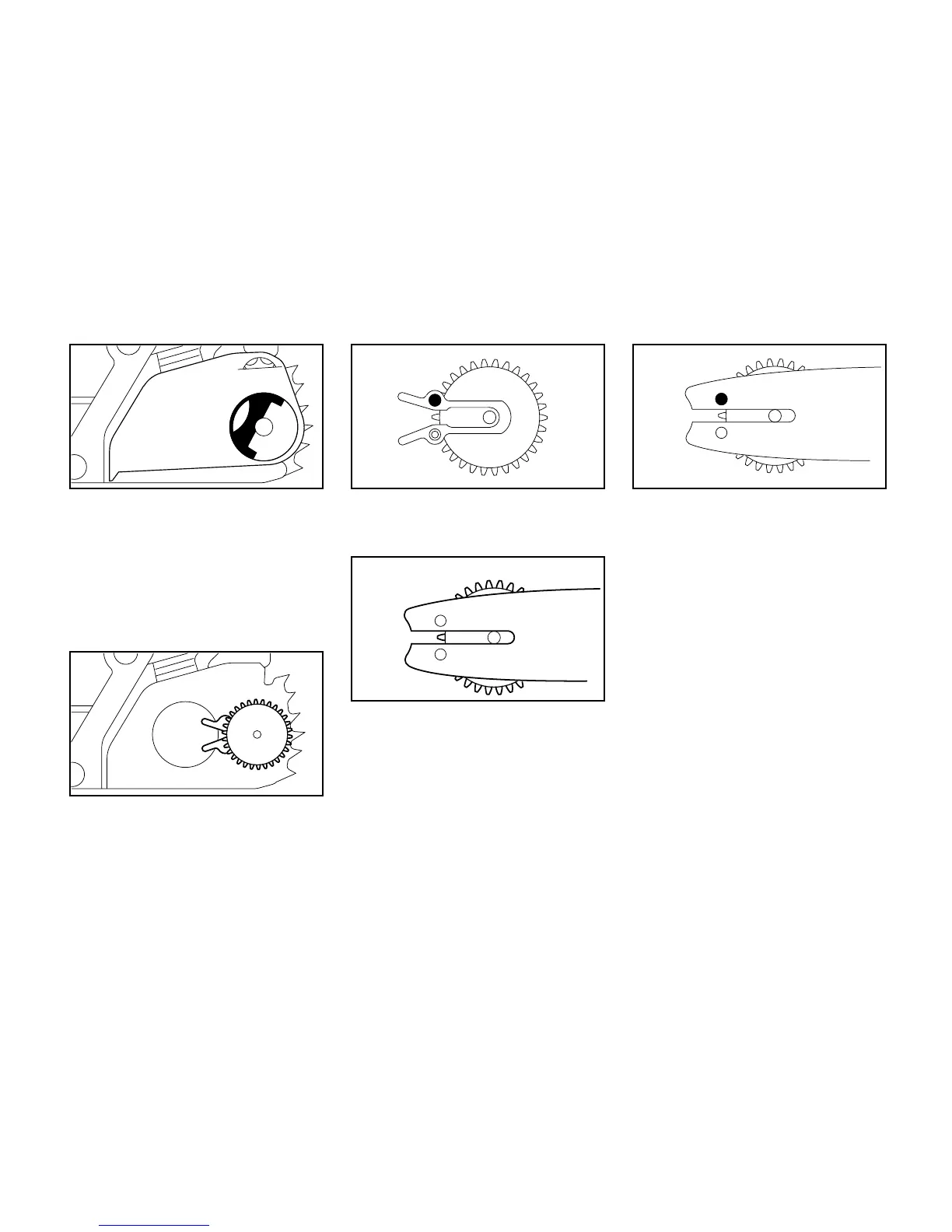

: Pull out the hinged handle (4) so
that it snaps into position.
: Turn the wingnut (5) counterclock-
wise until it hangs loose in the
sprocket cover (6).
: Remove the sprocket cover.
: Remove the tensioning gear (7)
and turn it over.
: Take out the screw (8).
: Position the tensioning gear (7)
against the guide bar (9).
: Fit and tighten down the screw (8).
6
140BA000 KN
4
5
7
140BA001 KN
8
140BA002 KN
7
9
140BA003 KN
8
135BA007 KN
