MS 171, MS 171 C, MS 181, MS 181 C, MS 211, MS 211 C
English
25

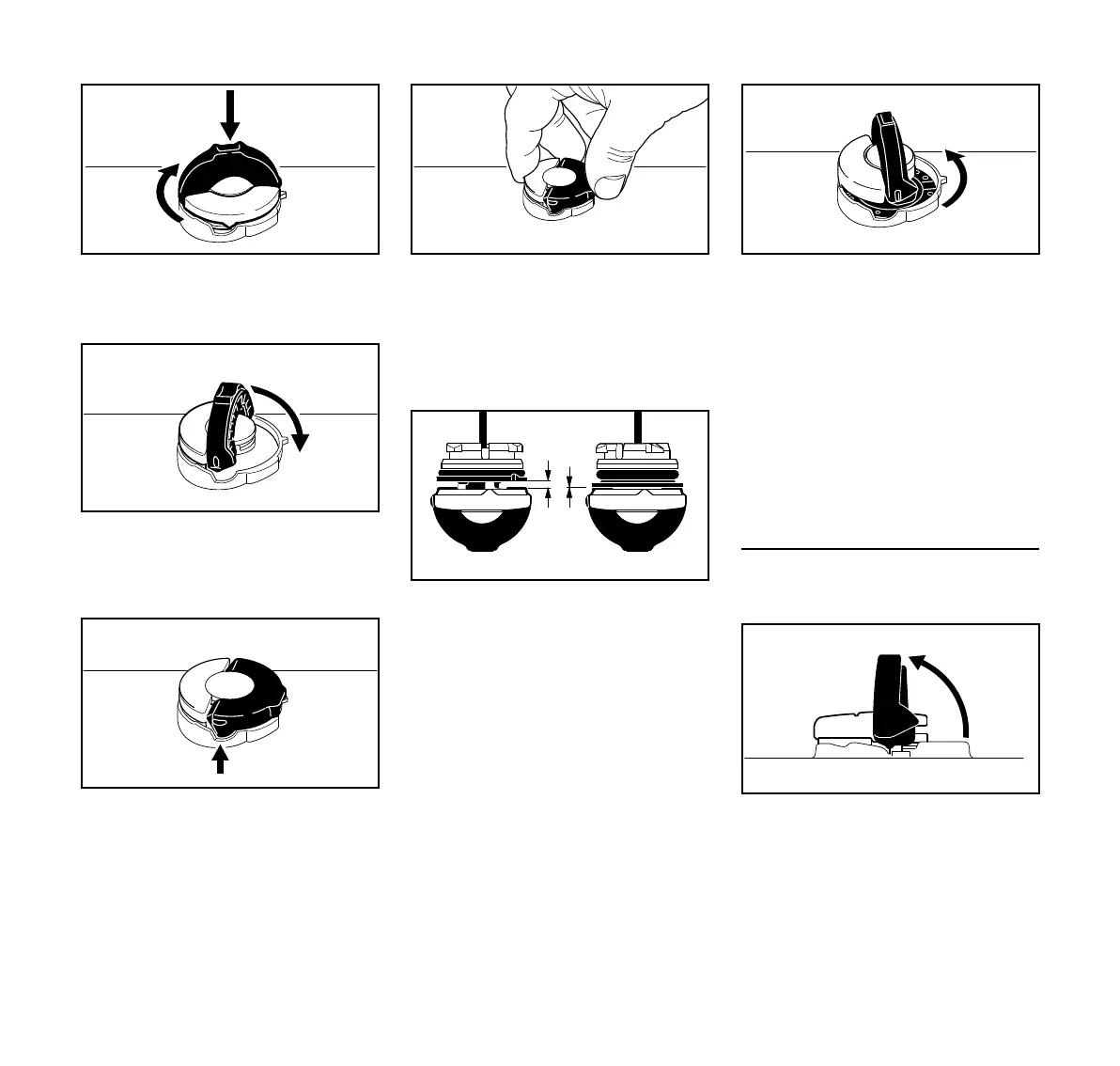

N While holding the cap depressed,
turn it clockwise until it engages in
position.
N Fold the grip flush with the top of the
cap.
Checking security of cap
– The lug on the grip must fully
engage the recess (arrow).
N Grip the cap – it is properly locked if
it cannot be turned or removed.
If the cap can be turned or removed
Bottom of cap is twisted in relation to
top:
N Place the cap on the opening and
rotate it counterclockwise until it
engages the filler neck.
N Continue rotating the cap
counterclockwise (about a quarter
turn) – this causes the bottom of the
cap to be turned to the correct
position.
N Turn and lock the cap clockwise –
see sections on "Closing" and
"Checking security of cap".
Tank cap with markings and symbols
Opening
N Raise the grip until it is upright.
Left: Bottom of cap twisted
Right: Bottom of cap correctly
positioned
