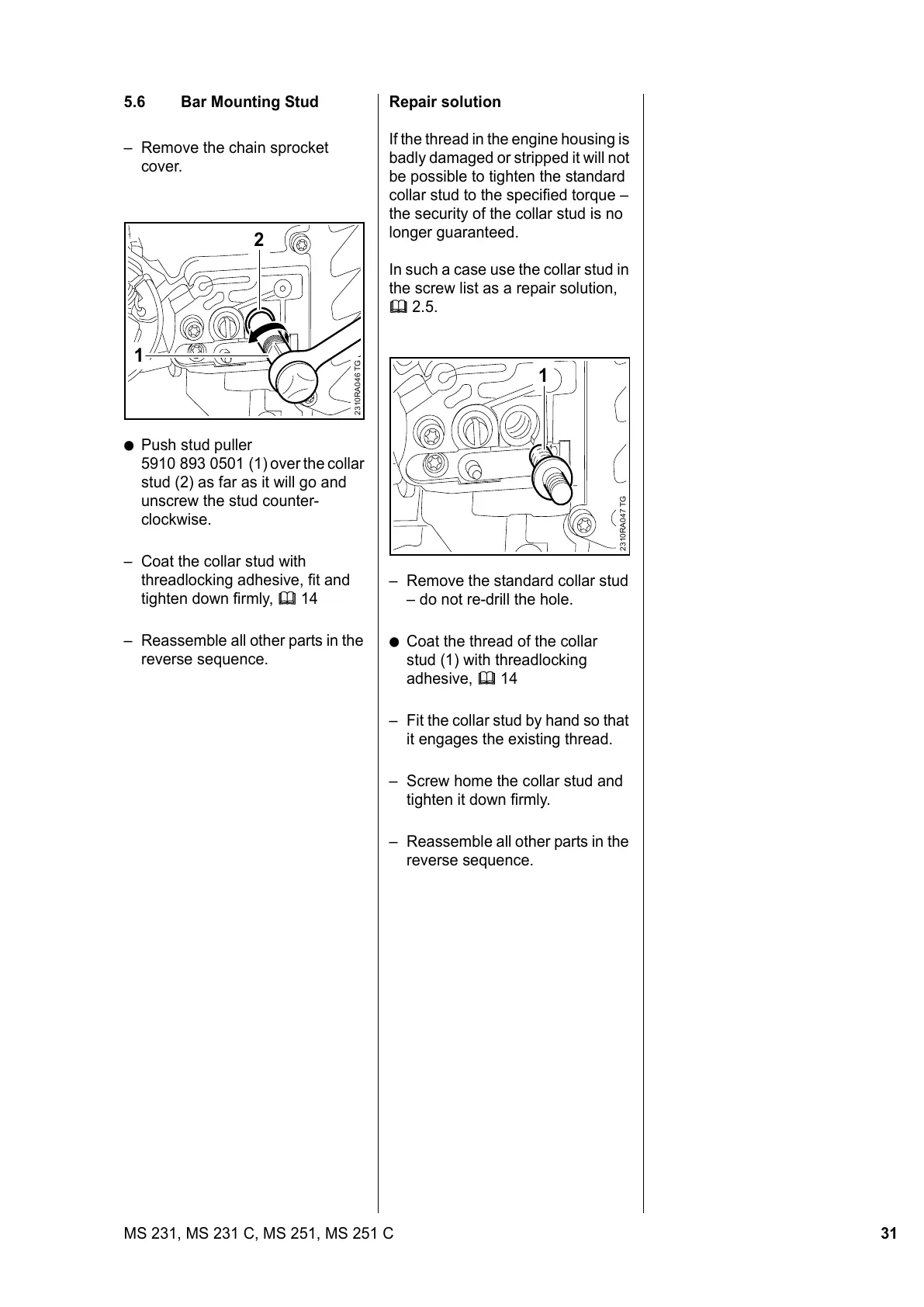

31MS 231, MS 231 C, MS 251, MS 251 C
5.6 Bar Mounting Stud
Remove the chain sprocket
cover.
: Push stud puller
5910 893 0501 (1) over the collar
stud (2) as far as it will go and
unscrew the stud counter-
clockwise.
Coat the collar stud with
threadlocking adhesive, fit and
tighten down firmly, b 14
Reassemble all other parts in the
reverse sequence.
2310RA046 TG
1
2
Repair solution
If the thread in the engine housing is
badly damaged or stripped it will not
be possible to tighten the standard
collar stud to the specified torque –
the security of the collar stud is no
longer guaranteed.
In such a case use the collar stud in
the screw list as a repair solution,
b 2.5.
Remove the standard collar stud
– do not re-drill the hole.
: Coat the thread of the collar
stud (1) with threadlocking
adhesive, b 14
Fit the collar stud by hand so that
it engages the existing thread.
Screw home the collar stud and
tighten it down firmly.
Reassemble all other parts in the
reverse sequence.
2310RA047 TG
1
