72 MS 231, MS 231 C, MS 251, MS 251 C

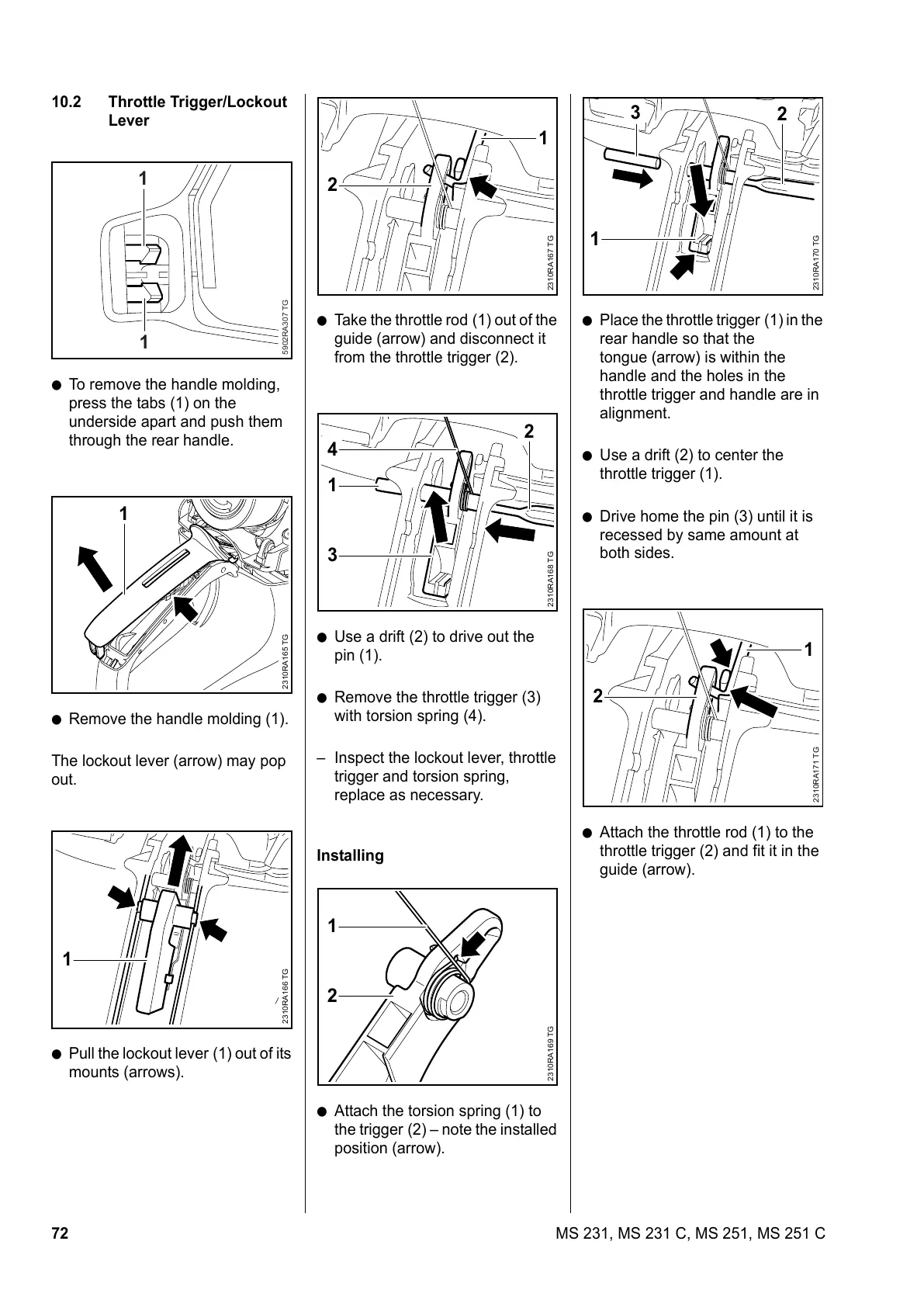

10.2 Throttle Trigger/Lockout
Lever
: To remove the handle molding,
press the tabs (1) on the
underside apart and push them
through the rear handle.
: Remove the handle molding (1).
The lockout lever (arrow) may pop
out.
: Pull the lockout lever (1) out of its
mounts (arrows).
5902RA307 TG
1
1
2310RA165 TG
1
2310RA166 TG
1
: Take the throttle rod (1) out of the
guide (arrow) and disconnect it
from the throttle trigger (2).
: Use a drift (2) to drive out the
pin (1).
: Remove the throttle trigger (3)
with torsion spring (4).
– Inspect the lockout lever, throttle
trigger and torsion spring,
replace as necessary.
Installing
: Attach the torsion spring (1) to
the trigger (2) – note the installed
position (arrow).
2310RA167 TG
2
1
2310RA168 TG
1
2
4
3
2310RA169 TG
2
1
: Place the throttle trigger (1) in the
rear handle so that the
tongue (arrow) is within the
handle and the holes in the
throttle trigger and handle are in
alignment.
: Use a drift (2) to center the
throttle trigger (1).
: Drive home the pin (3) until it is
recessed by same amount at
both sides.
: Attach the throttle rod (1) to the
throttle trigger (2) and fit it in the
guide (arrow).
2310RA170 TG
3
2
1
2310RA171 TG
2
1
All manuals and user guides at all-guides.com

Stihl MS 251 Specifications

General

Idle speed	2800 RPM
Motor type	2-stroke motor
Chain pitch	1/308 \
Blade length	450 mm
Product color	Black, Grey, Orange
Motor speed (max)	10000 RPM
Oil tank capacity	0.2 L
Fuel tank capacity	0.39 L
Engine displacement	45.6 cm³
Kickback protection	Yes
Engine power	3 hp
Power source	Gasoline
Sound power level	114 dB
Vibration emission	3.9 m/s²
Sound pressure level	103 dB

Weight and Dimensions

Weight	4900 g
