Stihl MS 280 Instruction Manual

MS 270, MS 270 C, MS 280, MS 280 C
English
42
1 Carburetor box cover twist lock
2 Carburetor adjusting screws
3 Spark plug boot
4 Decompression valve (depending
on equipment version)
5 Chain sprocket cover
6 Chain sprocket
7 Chain brake
8 Adjusting wheel (quick tensioner
depending on equipment version)
9 Side chain tensioner (depending on
equipment version)
10 Chain catcher
11 Bumper spike
12 Guide bar
13 Oilomatic saw chain
14 Oil filler cap
15 Muffler
16 Front hand guard
17 Front handle (handlebar)
18 Starter grip
19 Fuel tank twist lock
20 Master Control lever
21 Throttle trigger
22 Throttle trigger lockout
23 Rear handle
24 Rear hand guard
# Serial number

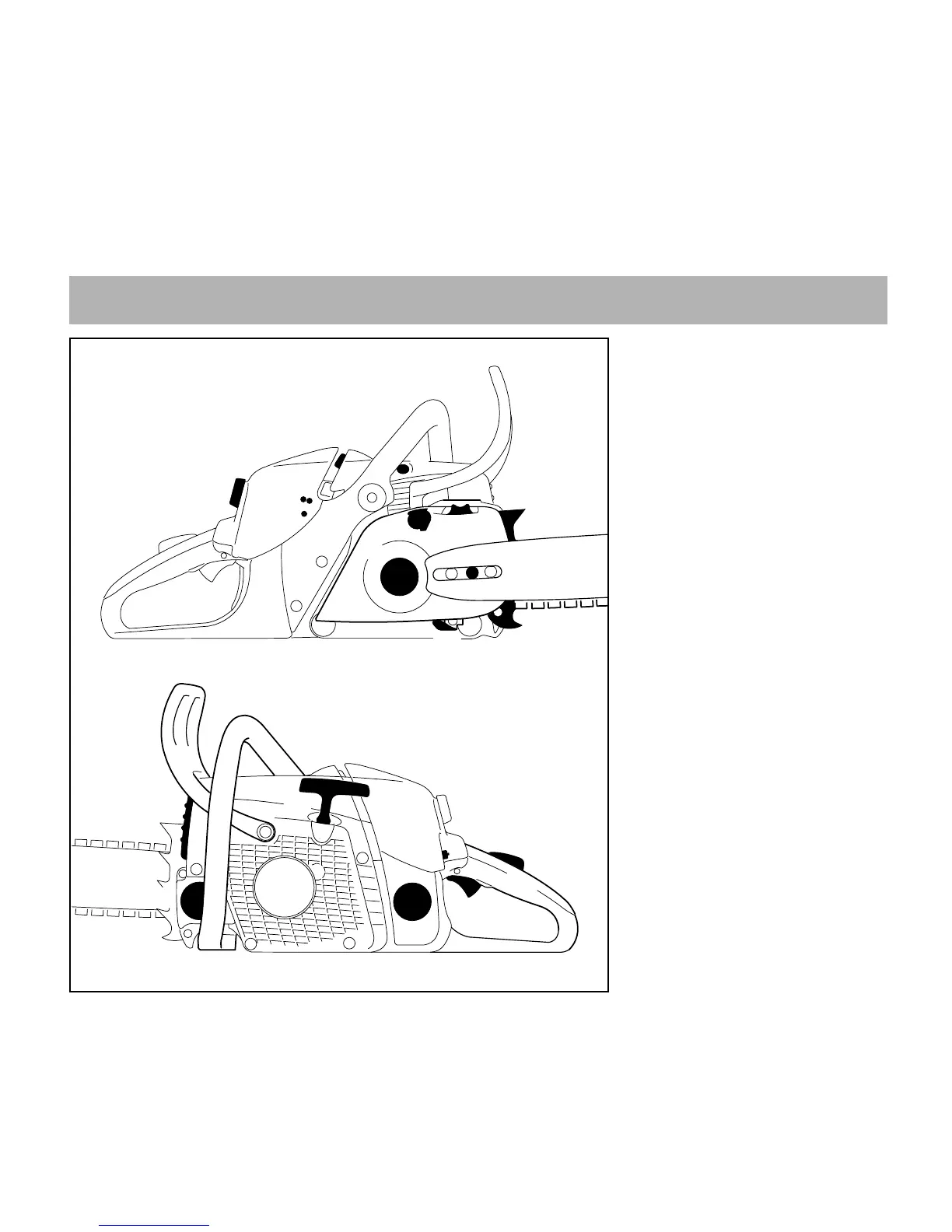

Main Parts
17
10
#
3
9
1
2
5
6
7
8 11
12
13
4
22
24
19
18
23
14
15
16
20
21
146BA033 KN

Stihl MS 280 Specifications

General

Sound Pressure Level	101 dB(A)
Sound Power Level	113 dB(A)
Oil Capacity	0.20 l (6.8 oz)
Guide Bar Length	16 in
Chain Pitch	3/8"
