MS 441
English
41

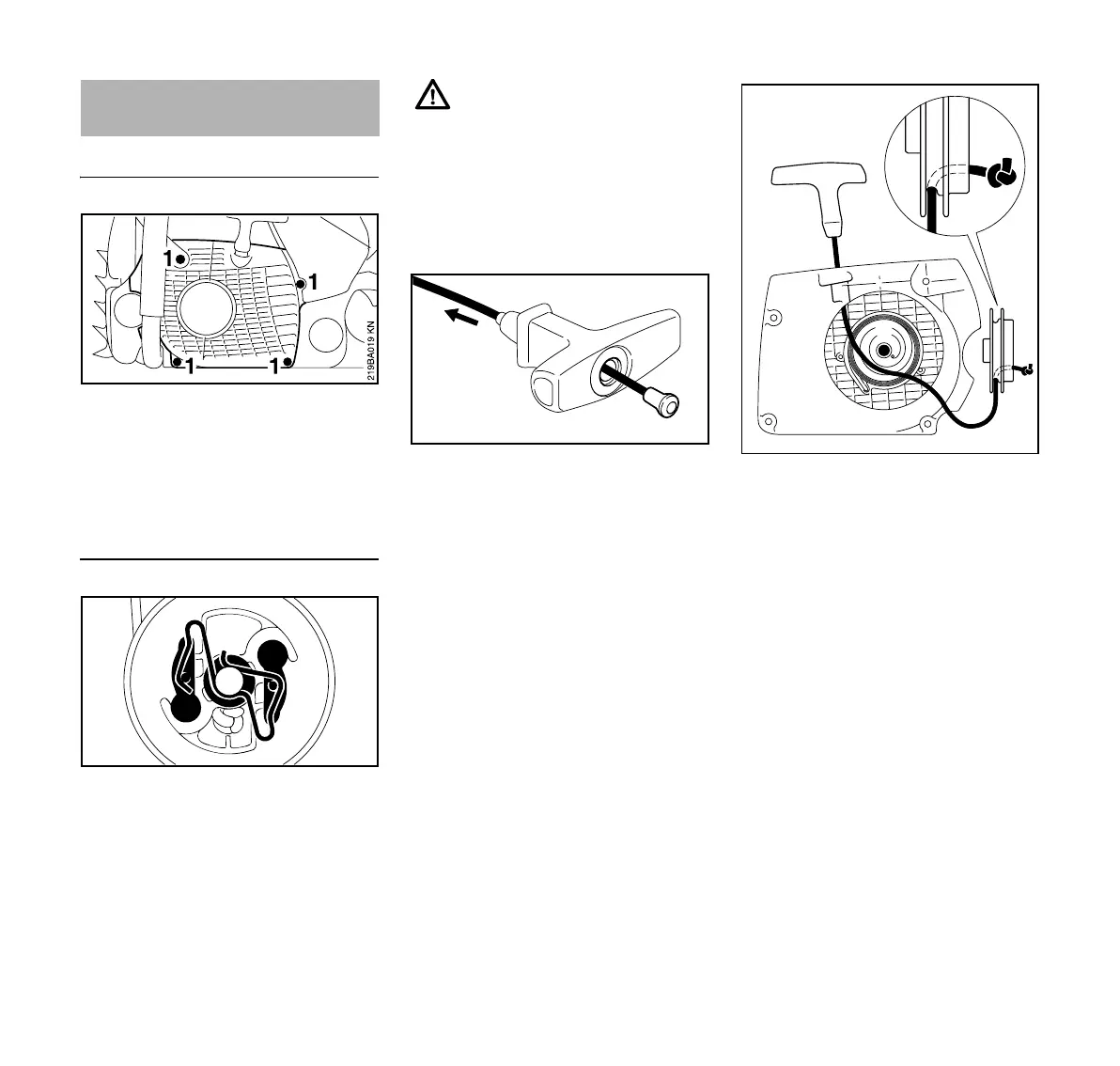

Removing the Fan Housing
N Take out the screws (1).
N Push the hand guard upwards.
N Pull the underside of the fan
housing away from the crankcase
and remove it downwards.
Replacing a broken starter rope
N Use a screwdriver or suitable pliers
to remove the spring clip (2) from
the starter post.
N Carefully remove the rope rotor with
washer (3) and pawls (4).
N Use a screwdriver to pry the rope
out of the starter grip.
N Remove the remaining rope from
the rotor and starter grip.
N Thread the new rope through the
top of the starter grip.
N Thread the end of the rope through
the top of the guide bushing (5) and
rope rotor (6) and secure it with a
simple overhand knot.
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter
post (7) – turn it back and forth to
engage the anchor loop of the
rewind spring.
Replacing the Starter Rope
and Rewind Spring
4
4
3
2
001BA096 KN
The rewind spring may pop out
and uncoil during this operation –
take care to avoid the risk of
injury.
213BA019 KN
6
7
213BA020 KN
5
