MS 241 C-M
English
50
1 Shroud Lock
2 Decompression Valve
(Automatically Resetting)
3 Shutter (Summer and Winter
Operation)
4 Chain Brake
5 Chain Sprocket
6 Chain Sprocket Cover
7 Chain Catcher
8 Chain Tensioner
9 Bumper Spike
10 Guide Bar
11 Oilomatic Saw Chain
12 Oil Filler Cap
13 Muffler (with Spark Arresting
Screen)
14 Front Hand Guard
15 Front Handle (Handlebar)
16 Spark Plug Boot
17 Starter Grip
18 Fuel Filler Cap
19 Master Control Lever
20 Throttle Trigger
21 Throttle Trigger Lockout
22 Rear Handle
23 Rear Hand Guard
# Serial Number

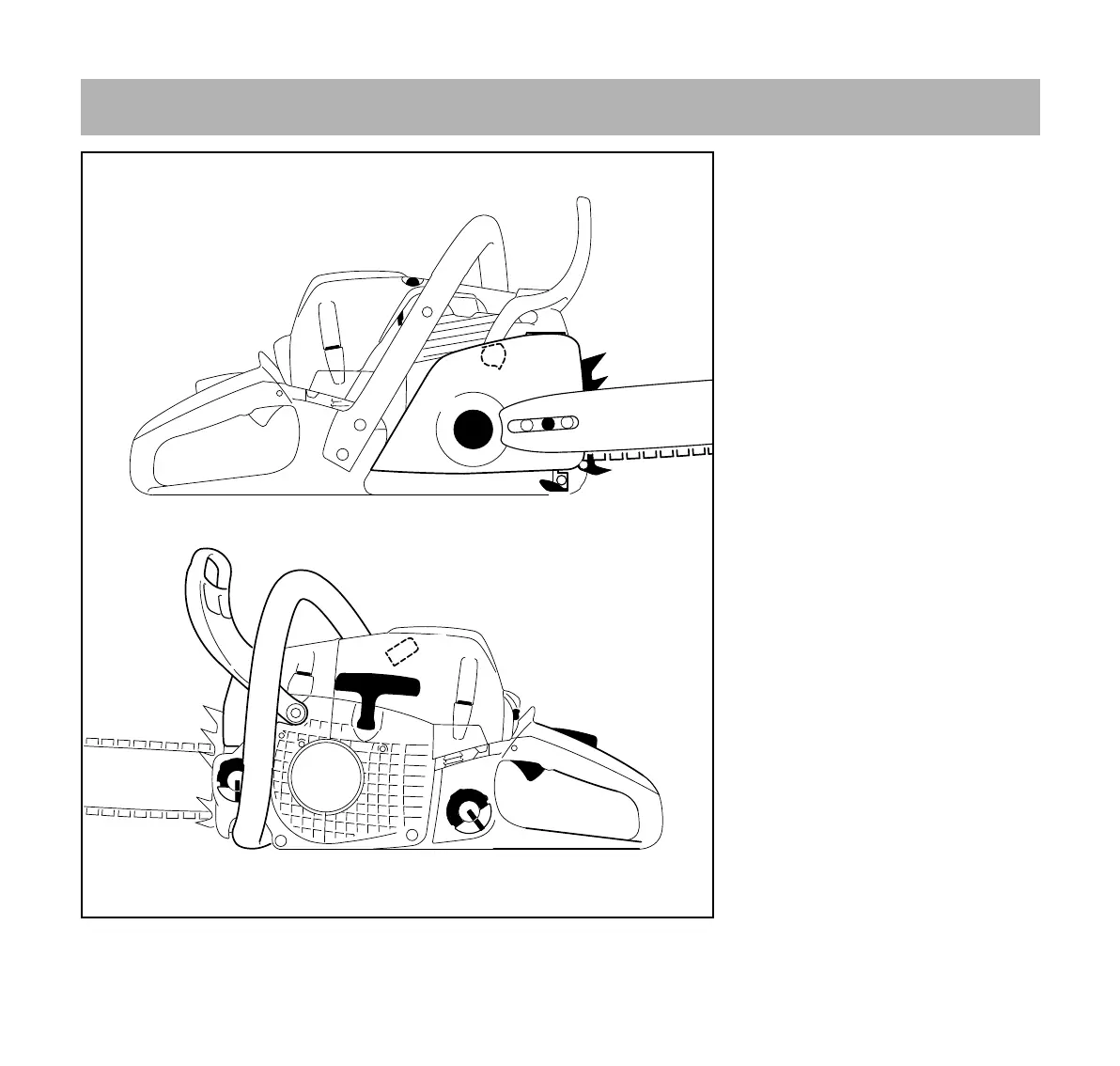

Main Parts
18
21
7
3
9
12
13
1
1
#
2410BA022 KN
14
10
11
5
8
2
1
20
19
16
17
15
4
6
23
22
