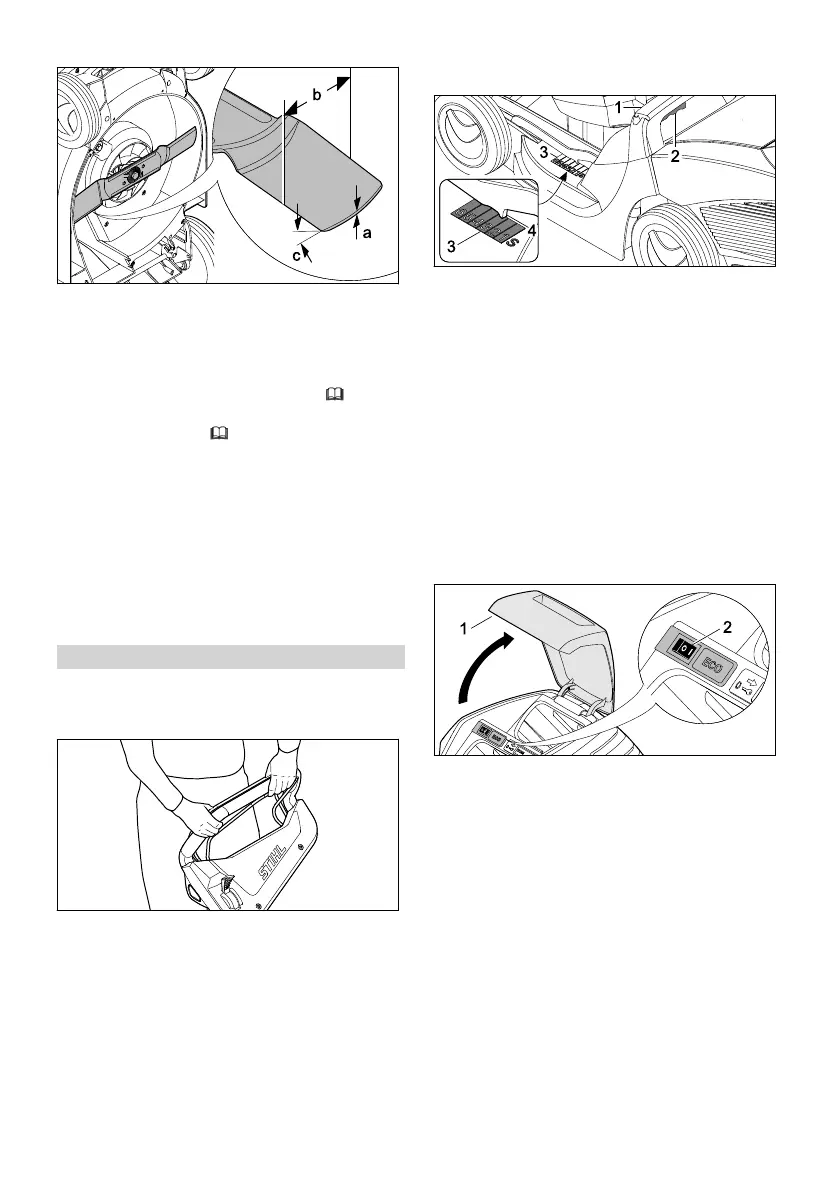

► Measure the following:
–
Thickness a
–
Width b
–
Sharpening angle c
► If the minimum thickness or minimum width
are fallen below: replace the blade, 22.2.
► If the sharpening angle is not observed:
sharpen the blade, 22.2.
► If anything is unclear: consult a STIHL special‐
ist dealer.
13.3 Testing the Battery
► Press button on battery.
The LEDs glow or flash.
► If the LEDs do not glow or flash: Do not use
the battery and contact your STIHL servicing
dealer.
There is a malfunction in the battery.
14 Operating the Lawn Mower
14.1 Holding and Guiding the Lawn
Mower
► Hold the handlebar with both hands so the
thumbs enclose the handlebar.
14.2 Adjusting the Cutting Height
Six cutting heights can be set:
–
25 mm = position 1
–
30 mm = position 2
–
40 mm = position 3
–
50 mm = position 4
–
60 mm = position 5
–
75 mm = position 6
The positions are indicated on the lawn mower.
► Hold the lawn mower at handle (1).
► Press and hold lever (2).
► Move the lawn mower to the desired position
by raising and lowering the lever.
The current cutting height can be read off at
cutting height indicator (3) by means of mark‐
ing (4).
► Release lever (2).
The lawn mower engages.
14.3 Activating ECO Mode
When ECO mode is activated, the lawn mower
detects the current working conditions and
adjusts the blade speed automatically.
This may extend the battery life.
► Open flap (1) as far as the stop and hold.
► Set ECO switch (2) to the I position.
► Close flap (1).
English 14 Operating the Lawn Mower
40 0478-131-9948-D
