Installing and removing the bot-
tom plate
Removing the bottom plate
CAUTION
Risk of short circuit if cables are damaged!
– Check the connection cables for damage.
– When removing and reinstalling the bottom plate,
make sure that the connecting cables are not
damaged.
NOTE
The bottom plate has a recess into which the
operator can insert their fingers in order to lift
it. The recess is beneath the rubber mat.
NOTE
The accelerator pedal is attached to the bot-
tom plate and is removed with the bottom
plate. The connecting plug for the accelerator
is located underneath the bottom plate.
– Open the bonnet.
– Remove the rubber mat.

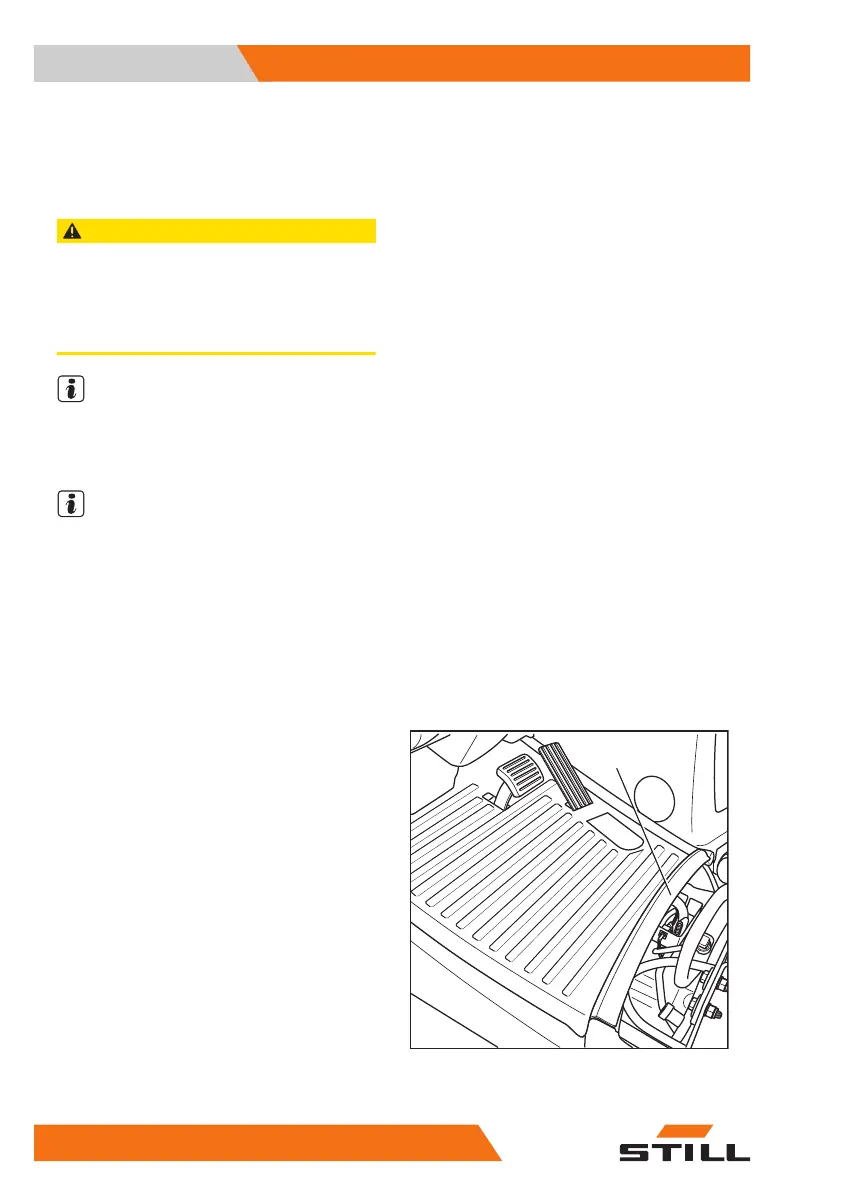

– Grasp the recess in the bottom plate (1).
– Raise the bottom plate slightly.
– Pull out the bottom plate under the brake
pedal and set it down upright.
