Outdoor Ducting Mode
This is the recommended extraction mode wherever possible for optimum
performance. If you are able to install an exhaust duct (not supplied) to
vent the air outside and operate your rangehood in outdoor ducting mode,
proceed as follows:

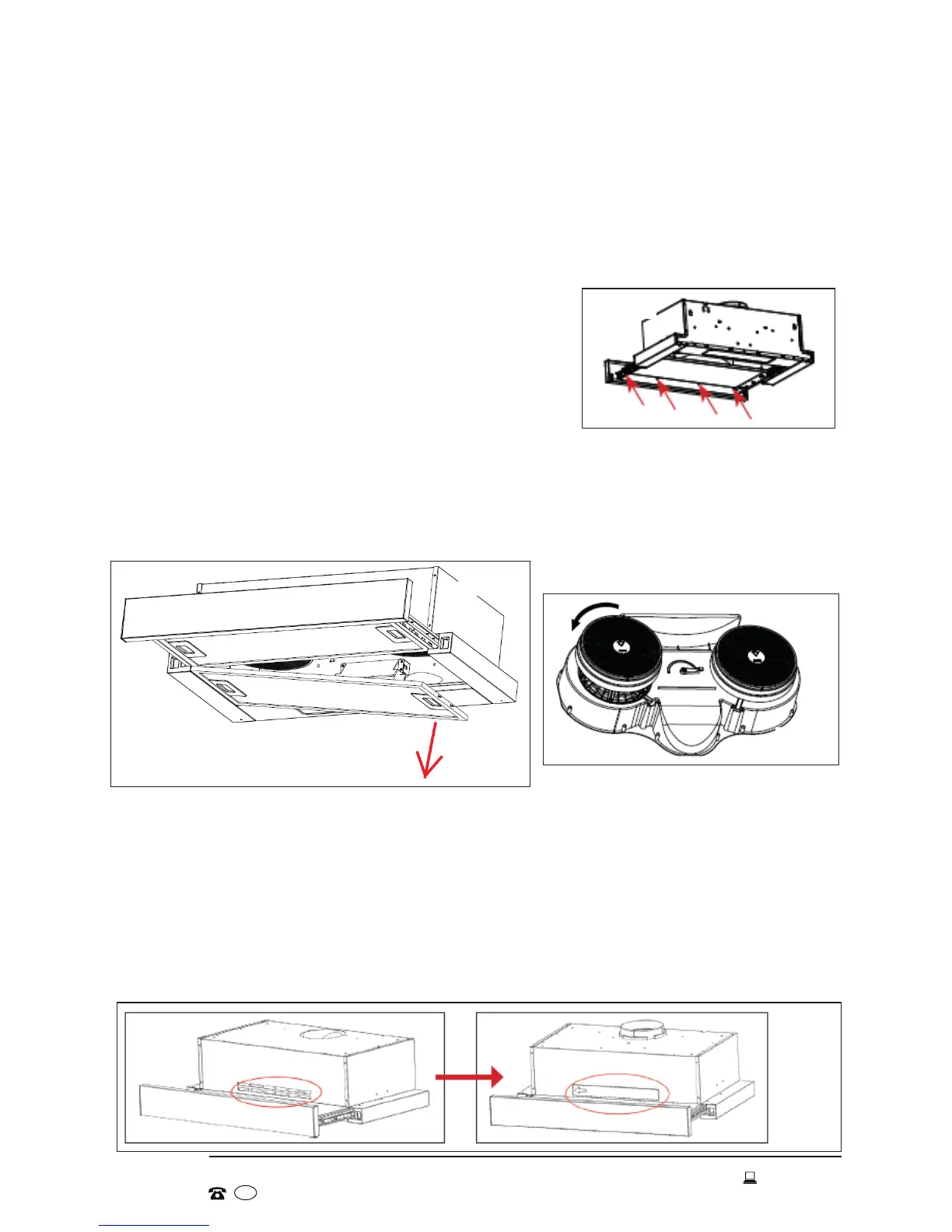

• Unscrew the 80mm fascia rail which is already
installed on the rangehood (Fig. 7).
• Using the same screws, attach the 40mm
fascia rail supplied in the box.
• If you haven’t already done so, remove the alu-
minium mesh lters from the underside of the
rangehood (Fig. 8) and set the two levers in the centre of the motor housing
to the “Ducting” position (see Fig.4).
• Remove the charcoal lters by turning anticlockwise (Fig.9). The charcoal
lters are not required for outdoor ducting mode.
Fig. 9
Fig. 8
Fig. 7
Fig. 10
• Clip in the plastic front vent cover over the vent holes on the front of the
rangehood.
• Install the ue outlet adaptor to the top of the rangehood.
• Install the ducting pipe (not supplied) to the outlet on the top of the
rangehood and vent to the outside. We recommend using a ducting pipe
with a diameter of 120mm.
• When installing the rangehood in external ducting mode, you can cover the
front air outlet with the supplied front vent cover (Fig. 10).
Installation (Cont.)
