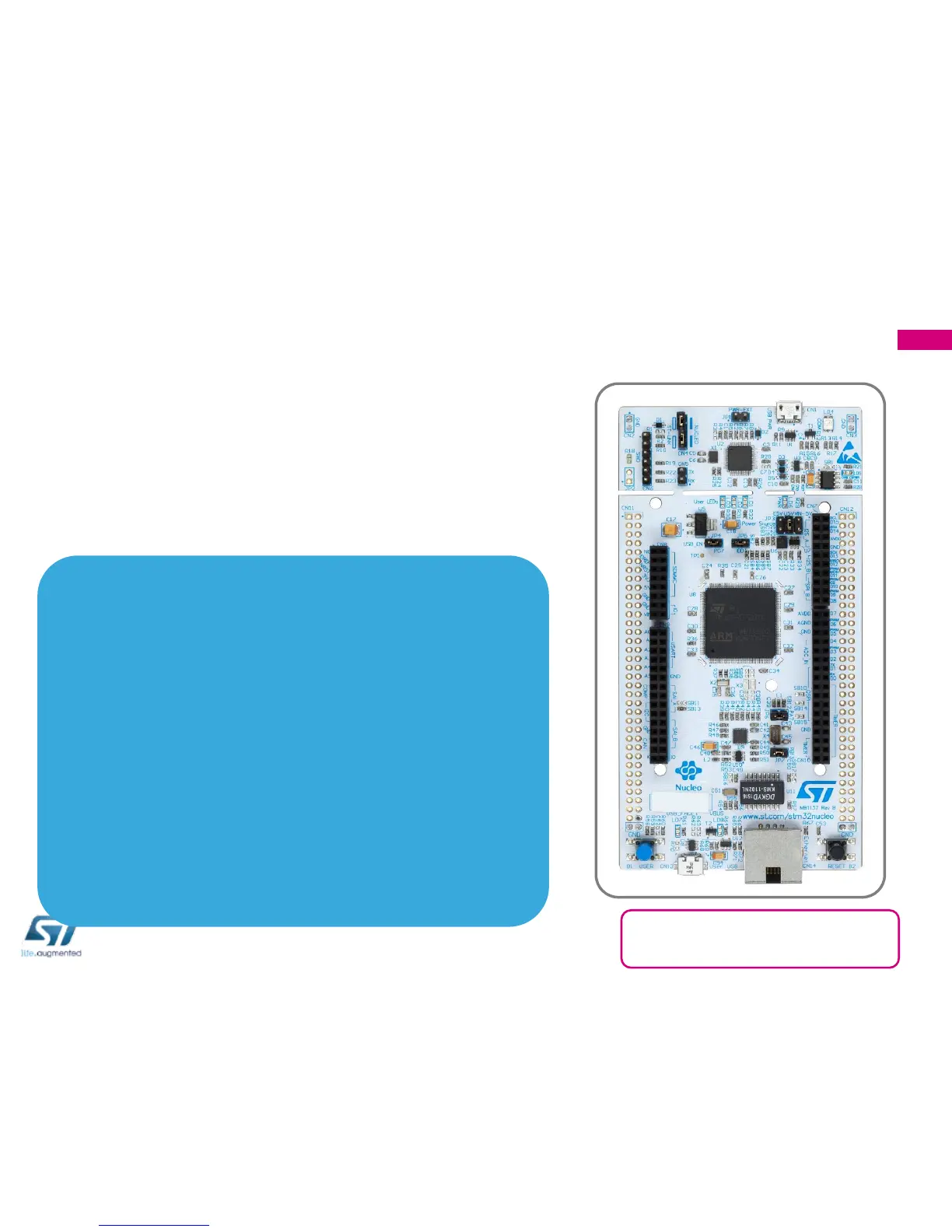

NUCLEO-F429ZI board
Hardware Overview (3/4)
5
NUCLEO-144 Hardware Description
The STM32 Nucleo-144 boards (NUCLEO-F207ZG, NUCLEO-
F303ZE, NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F429ZI,
NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEOF746ZG, NUCLEO-
F767ZI and NUCLEO-H743ZI) provide an affordable and flexible
way for users to try out new concepts and build prototypes, by
choosing from the various combinations of performance and power
consumption features provided by the STM32 microcontroller.
Key Product on board
• 2 types of extension resources:
• ST Zio connector including: support for Arduino™ Uno V3
connectivity (A0 to A5,D0 to D15) and additional signals exposing
a wide range of peripherals
• ST morpho extension pin header footprints for full access to all
STM32 I/Os
• USB OTG or full-speed device with Micro-AB connector (depending
on STM32 support)
• IEEE-802.3-2002 compliant Ethernet connector
• Flexible board power supply:
• 5 V from ST-LINK/V2-1 USB VBUS
• External power sources: 3.3 V and 7 - 12 V on ST Zio or ST
morpho connectors, 5 V on ST morpho connector
• On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Latest info available at www.st.com
NUCLEO-F429ZI
