Hardware layout and configuration UM2407

16/48 UM2407 Rev 1

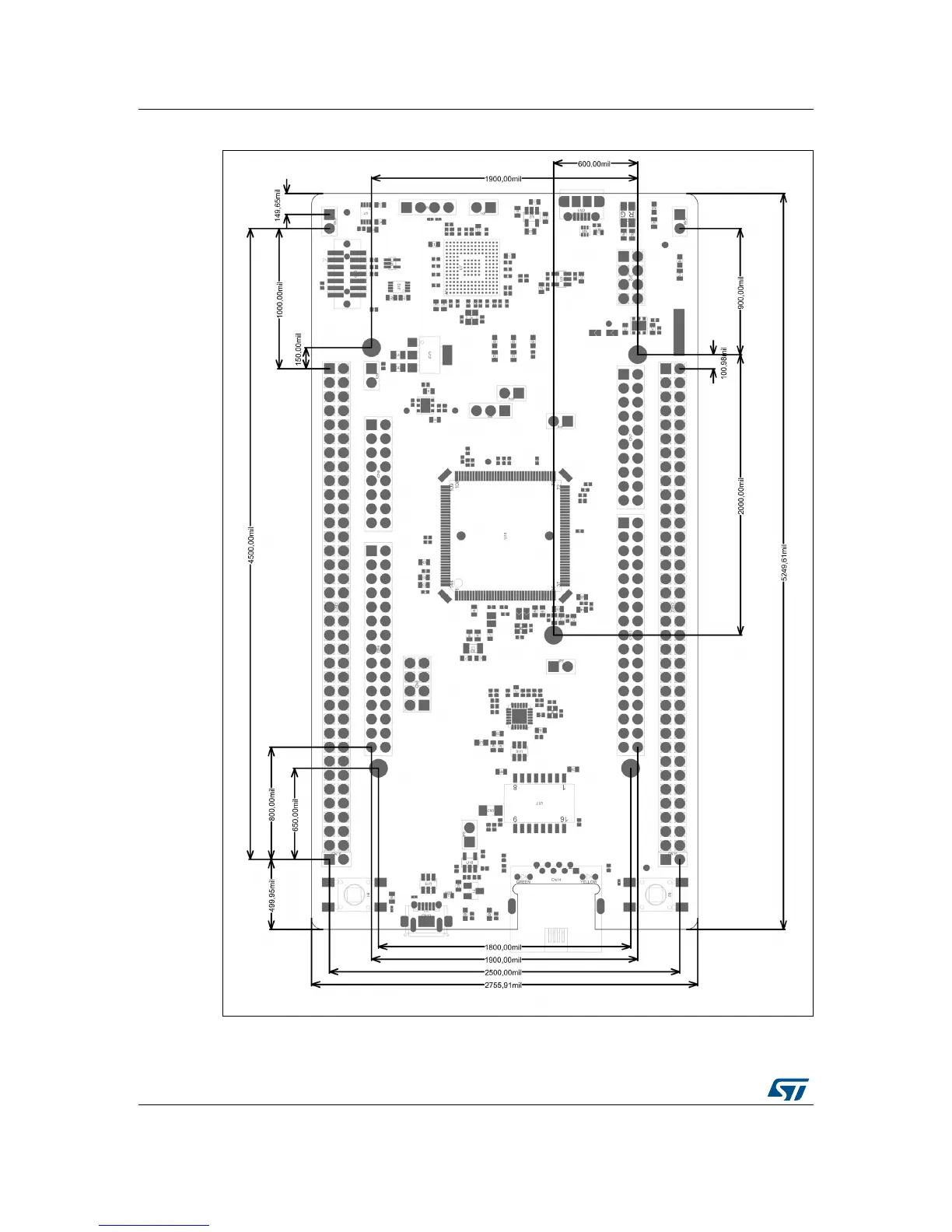

Figure 7. Nucleo-144 board mechanical drawing in mil
