Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
Jointed arm awning SELECT S8130 | S8135 OMBRAMATIC | S8133 PLUS
The jointed arm awnings SELECT S8130, S8135 OMBRAMATIC and
S8133 PLUS are used to provide shade for elements such as balco-
nies and terraces. The jointed arm awnings can be mounted on the
wall or ceiling and can be set to an incline of up to 60°. The joint-
ed arm awning is operated via a drive with a manual crank. Option-
ally, the awning can be operated electrically via a remote control.
Model S8133 PLUS features cross-over jointed arms for installation
on narrow terraces or window niches. Other options include climate
sensors, a protective cover, a valance and a drop-down valance.

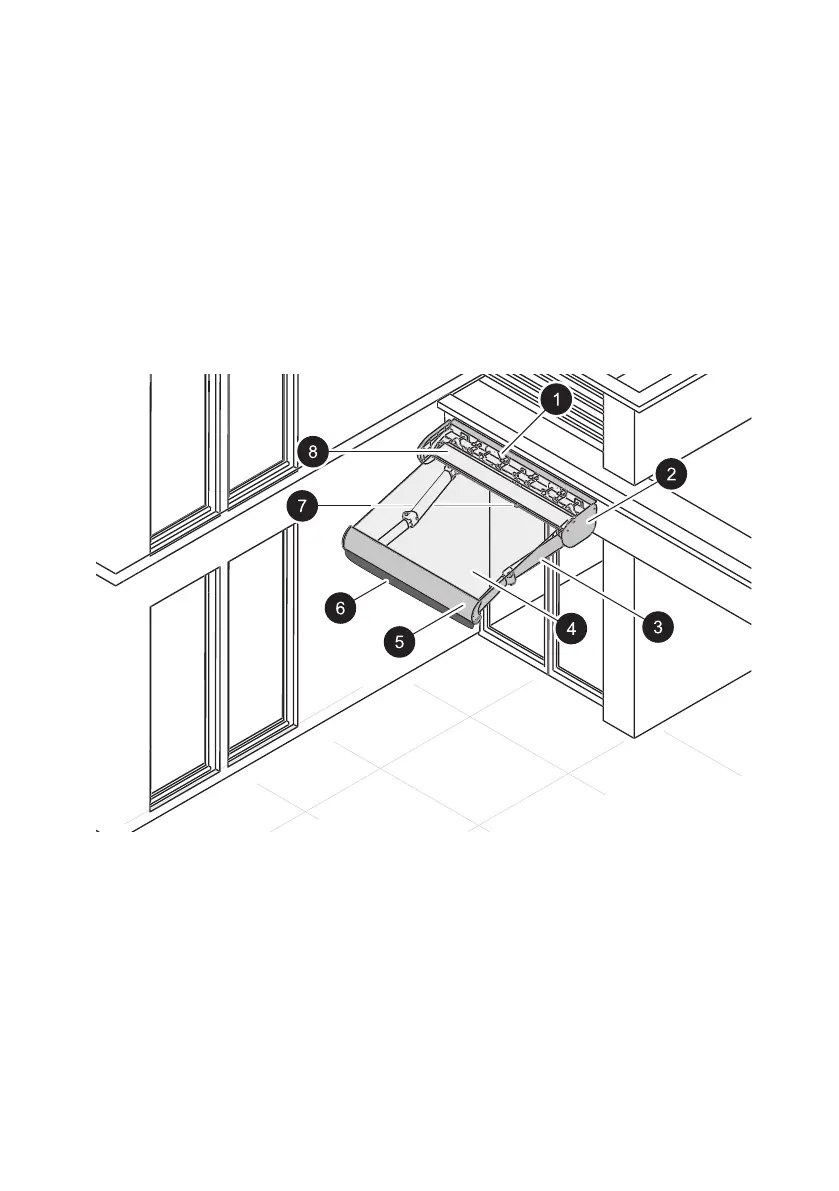

Fig. 4: Overview of jointed arm awning, example: SELECT S8135 OBRAMATIC
1 Box 2 Service flap
3 Jointed arm 4 Fabric panel
5 Drop-out profile 6 Optional drop-down valance
7 Optional crank handle for manual crank 8 Drive (tubular motor)
