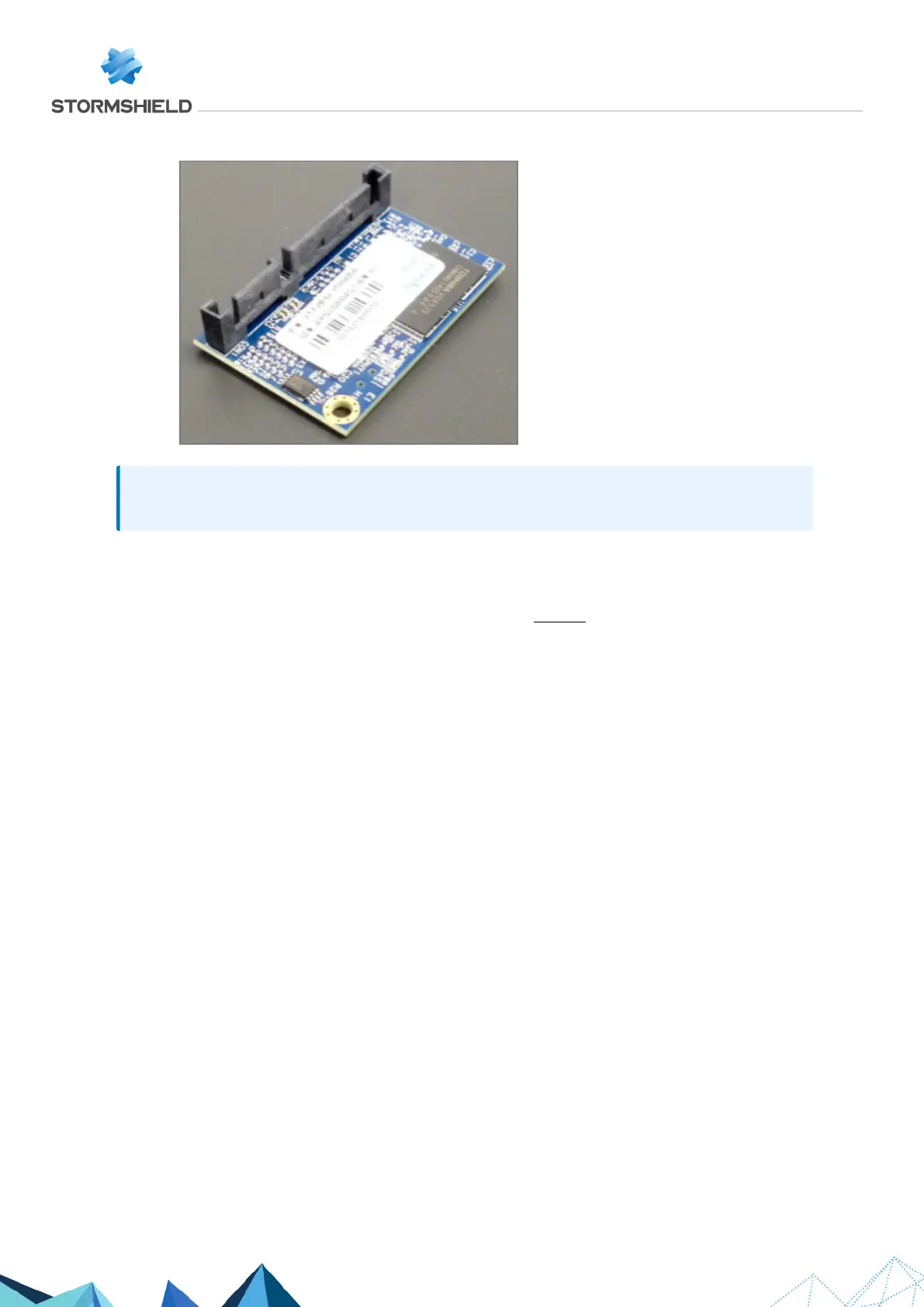

5. To extract the flash module, pull it gently and perpendicular to the motherboard.
REMARKS
This operation does not require the crossbar to be dismantled.
Assembling
1. Ensure that the screw of the Flash module remains outside the chassis.
2. Put the cover back in place.
3. Push it forward.
4. Close the chassis back up using the 9 screws.
