SAUNA HEATER INSTALLATION AND OPERATING MANUAL
1. GENERAL
Stoveman product range includes various modications of sauna heaters. You
can choose between round and angular shaped stoves. The heater may have a
door panel made of heat-resistant glass or metal (M). The heater can be heated
directly from the hot room or have an extended re chamber (LS) to be heated
from another room.
Declaration of performance for the purchased sauna heater type is annexed
to the manual.
Choose the heater with suitable heating output for your sauna room. Sauna
room’s suitable cubage for this heater is given in the specications.
When choosing a suitable heater it is important to know that uninsulated wall and
ceiling surfaces (such as brick, glass, stone and concrete surfaces) increase the
required output of the heater.
Our sales assistant or a representative of our factory can assist you at choosing
a suitable heater or you can use a special application for choosing the heater on
our website www.stoveman.ee http://www.stoveman.ee/kerise-valimine/

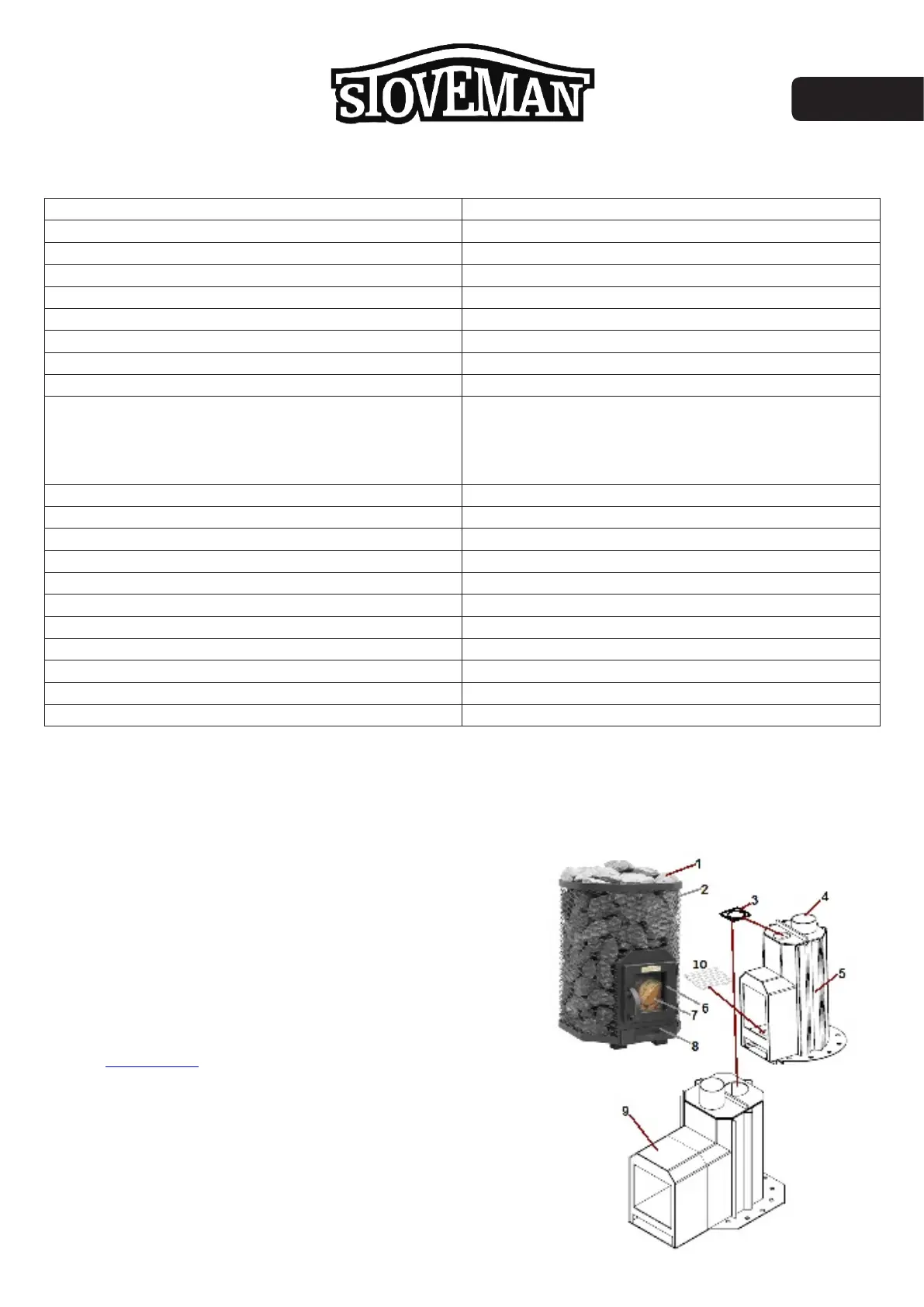

1.1. Heater components (See Fig. 1)
1 - Heater stones (not included in the supply)
2 - Steel mesh
3 - Cleaning hatch
4 - Flue gas outlet to be connected with chimney pipe
5 - Heater casing
6 - Fire chamber door
7 - Glass panel door (optional metal door)
8 - Ash drawer
9 - Fire chamber extension for wall penetration (LS models)
10 - Fire grate
Type Stoveman 13
Models 13R; 13R-M; 13; 13-M; 13R-LS; 13R-M-LS; 13-M-LS; 13-LS
Heating output in the sauna room 15.4 kW
Sauna room cubage 6-13 m³
Fuel Wood logs up to 30 cm in length
Refuelling loads 3.6 kg+2.3 kg+2.3 kg
Minimum required draft 12 Pa
Required temperature class of chimney T600
Inner diameter of a chimney pipe to be connected to the heater 115 mm
Safety distance to combustible materials:
sides
ceiling
back
front (from the furnace door)
190 mm
1140 mm
250 mm
900 mm
Carbon dioxide emissions at 13% O
2
content 0.59%
Total efciency 67%
Flue gas temperature 430 °C
Weight without sauna stones 52 kg / LS 63 kg
Weight of sauna stones 90–110 kg
Diameter of sauna stones 10–15 cm
Minimum cross-section of ventilation openings 7850 mm²
Minimum cross-section of smoke ue 10,200 mm²
Thickness of furnace walls and ceiling 5 mm
Opening of the ash drawer after igniting the stove up to 10 mm
Mass of generated ue gas 13.3 g/s
Table 1. Heater specications
Figure 1. Heater components
EN
