6
5
CORBEL AS SPECIFIED
POST EMBEDDED MINIMUM
300mm INTO CONCRETE FOOTING

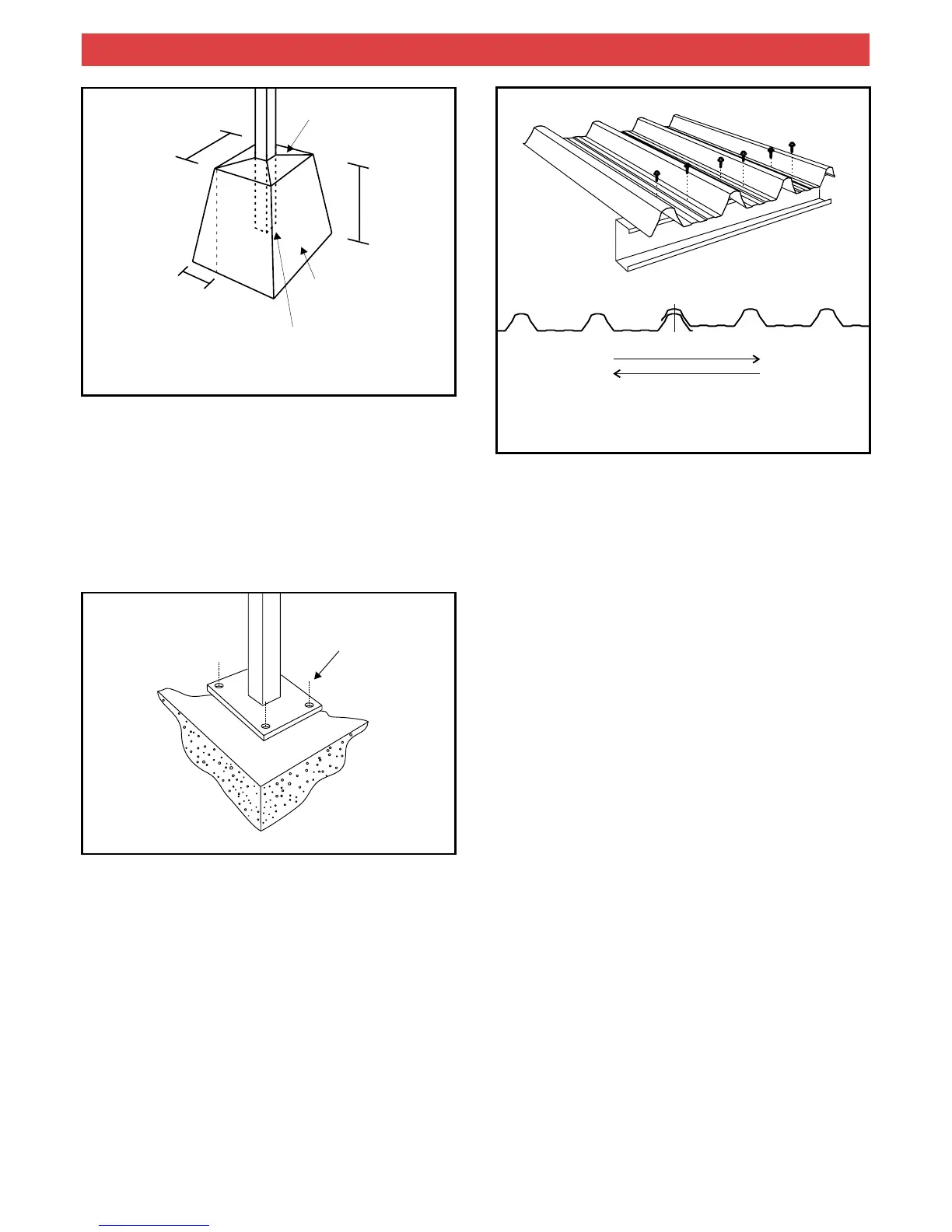

4.2 ON CONCRETE FOOTING
Mark the position of the holes through the existing holes in
footing plate. Drill 12mm holes to a minimum depth of
100mm.
Fix the footing plates to the concrete slab (minimum 120mm
depth) using the 12 x 100mm Screwbolts supplied through
the pre-drilled holes in the slab (Figure 6).
5.0 ROOFING
Start laying the roof sheeting from one side of the unit and
continue across the unit. Figure 7 indicates the laying
direction and lapping detail for roof sheeting.
Decking should be positioned to allow an equal deck
overhang at each end of the unit (600mm for cyclonic
conditions and 900mm for non-cyclonic conditions).
Fix each sheet in place, as specified by the fixing details on
the supplied drawing, before laying the next sheet.
Note: Ensure that the sheets are lapped correctly (Figure
7).
7
PREVAILING WIND
LAYING DIRECTION
PRODEK
®
WIDTH AS
SPECIFIED
FINISH CONCRETE RAISED
TOWARD COLUMN
DEPTH AS
SPECIFIED
MINIMUM 15MPa CONCRETE
6.0 GUTTERING
Select where your downpipe will be located and n
Fasten left and right hand gutter stop ends to the end of the
guttering. Rivet and silicone seal to achieve a waterproof
connection.
Fasten Universal Deck Straps in place from the front of the
gutter to the roof sheet rib (Figure 8) at maximum 900mm
centres.
Cut the downpipe as required to form an offset, using the
elbows supplied, attach the PVC Downpipe to the downpipe
pop, rivet in place. Secure downpipe in position with
downpipe straps.
Silicone seal at all rivet locations to waterproof.
otch a
hole in the gutter and insert a downpipe outlet (pop) so that
the downpipe is in line with an end column. Fasten the pop
in place using rivets and silicone seal.
Fix the length of gutter to the lower end of your carport.
Place the return lip at the back end of the guttering
underneath the roof sheet, allow for a 50mm overflow into
the gutter. Fasten with pop rivets or 10x16 self drilling
screws through the pan of the roof sheets into the return lip
on the gutter (Figure 8) at maximum 900mm centres.
FOUR 12x100mm
SCREWBOLTS
3
