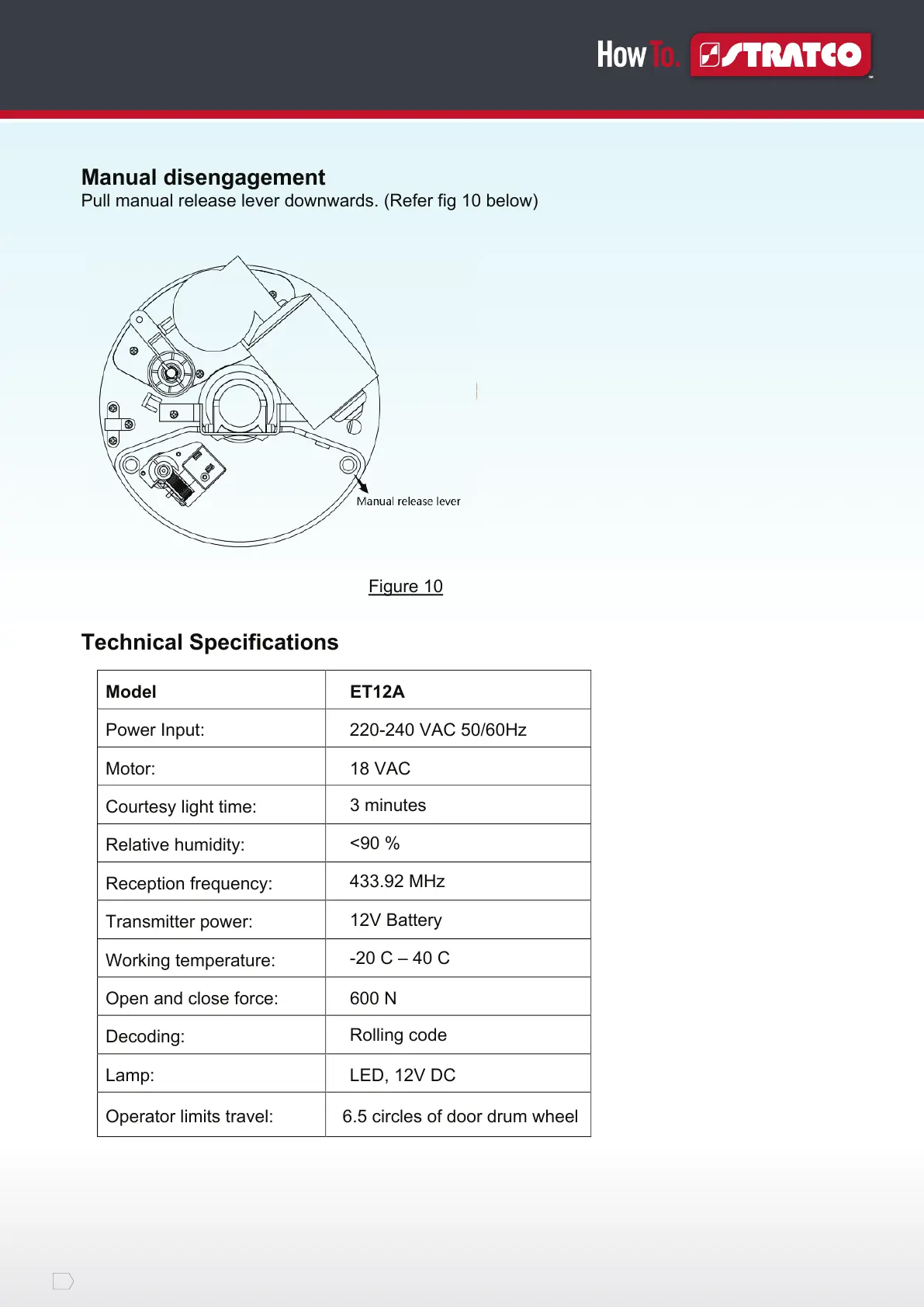

Manual disengagement
Pull manual release lever downwards. (Refer fig 10 below)
Figure 10
Technical Specifications
Model ET12A
Power Input: 220-240 VAC 50/60Hz
Motor: 18 VAC
Courtesy light time:
3 minutes
Relative humidity:
<90 %
Reception frequency:
433.92 MHz
Transmitter power:
12V Battery
Working temperature:
-20 C – 40 C
Open and close force: 600 N
Decoding:
Rolling code
Lamp: LED, 12V DC
Operator limits travel: 6.5 circles of door drum wheel
