Installation
I/O Wiring & Sequence

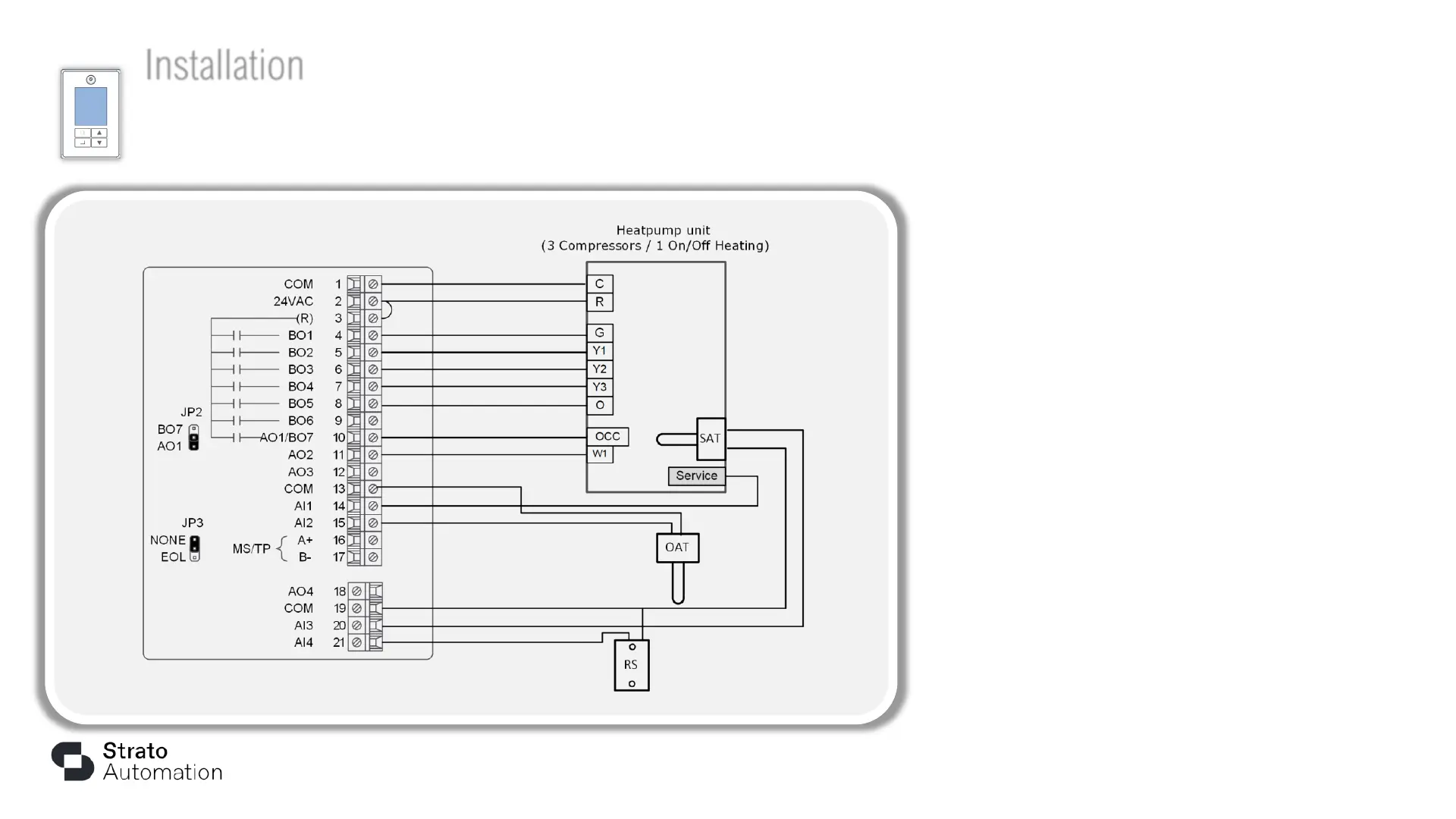

MSV127 – HP 3STG
HP 3STG: Sets for a 1 on/off fan, 3 on/off heatpump, 1
on/off reheat.
Notes:
- BO7 is an occupancy output that follows the main occupancy
- AI’s can be configured for various options as per MSV2, 27, 28,
66 & 67
Add 24VAC transformer when the power
is not supplied by the equipment
To Next Page
