User manual for M1-SH0401
For more information, please visit our website www.en.streamaxtech.com

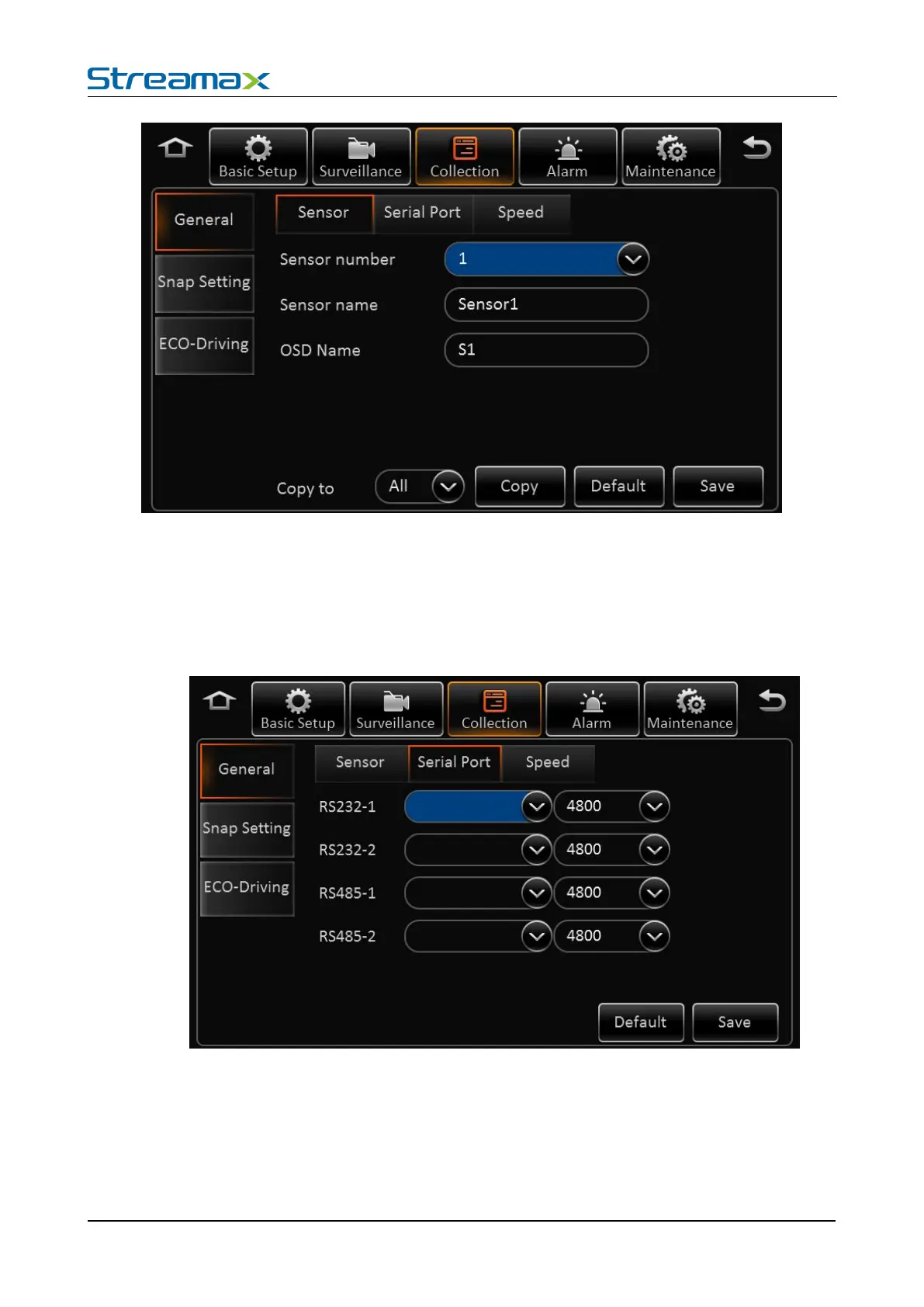

Sensor number: The total alarm input numbers of MDVR.
Sensor name: IO sensor name, it can set manually. The sensor name of alarm setting interface will
update synchronously after setting.
OSD name: The information embedded to video image.
Copy: Copy the configuration and use it for other sensors.
RS232-1 and RS232-2, with the following features: three axis sensor, expansion, 485 bus and GPS
data.
RS485-1 and RS485-2, with the following features: PTZ, control panel, 485 bus and GPS data.
Baud Rate: 2400-115200, 9 classes optional.
Remarks:
