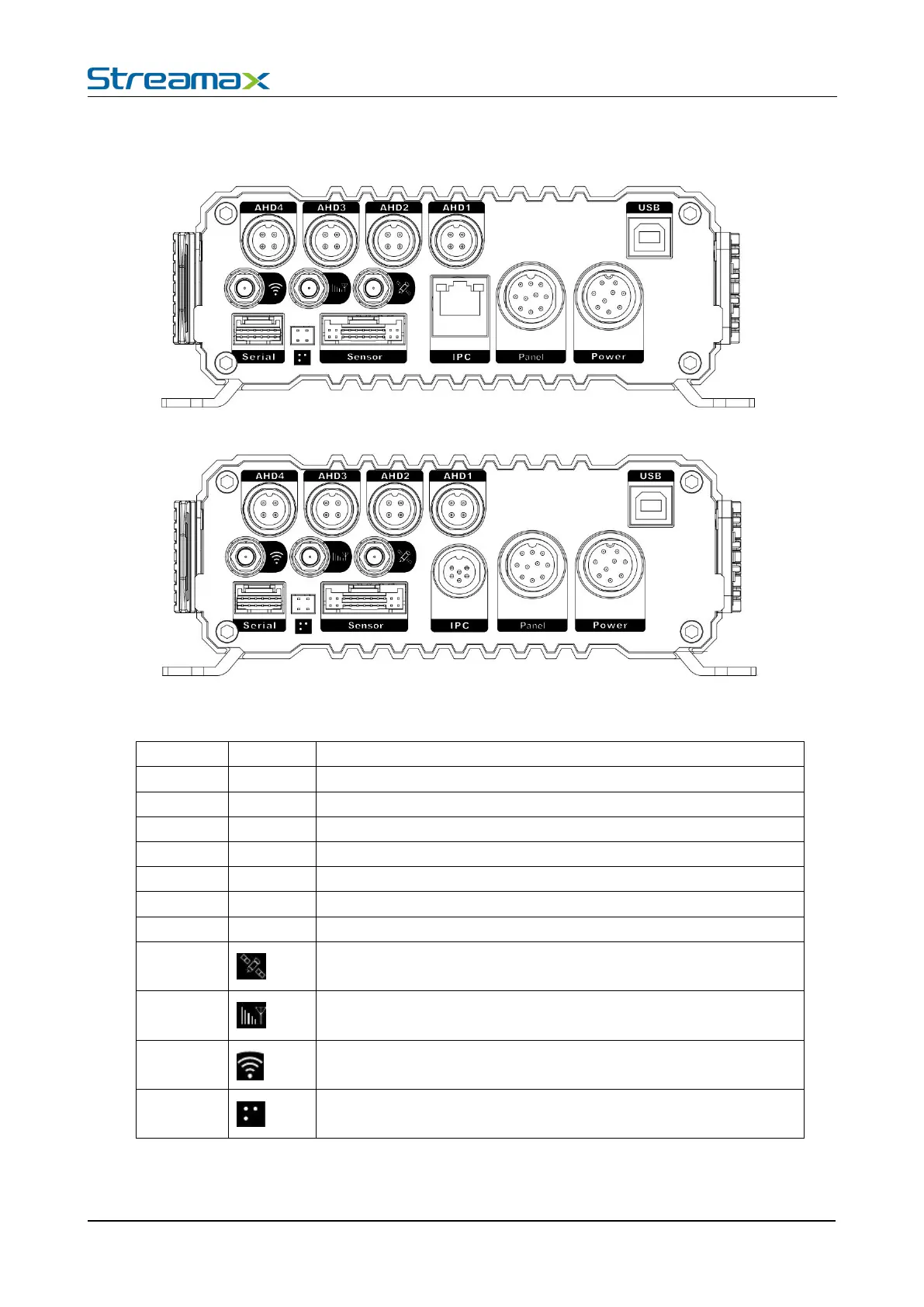

Rear panel:
Serial No.
Print
Description
1
Power
DC8-36V power input
2
Panel
Control panel (CP4)
3
USB
USB2.0 port (Type B/ to connect fire proof box)
4
Sensor
Sensor port
5
Serial
Serial port
6
AHD1~4
AHD A/V input1~4
7
IPC
1 POE power supply IPC or 6-core PON IPC (net port optional)
8
GPS antenna port
9
3G/4Gantenna port
10
WIFI antenna port
11
Debug port
