4. Align the bottom and top halves of the housing.
a. The charge connector on the bottom housing should face the rear of the Litebox.
b. Make sure that the charge connector wiring is routed through the center channel of the
bottom housing.

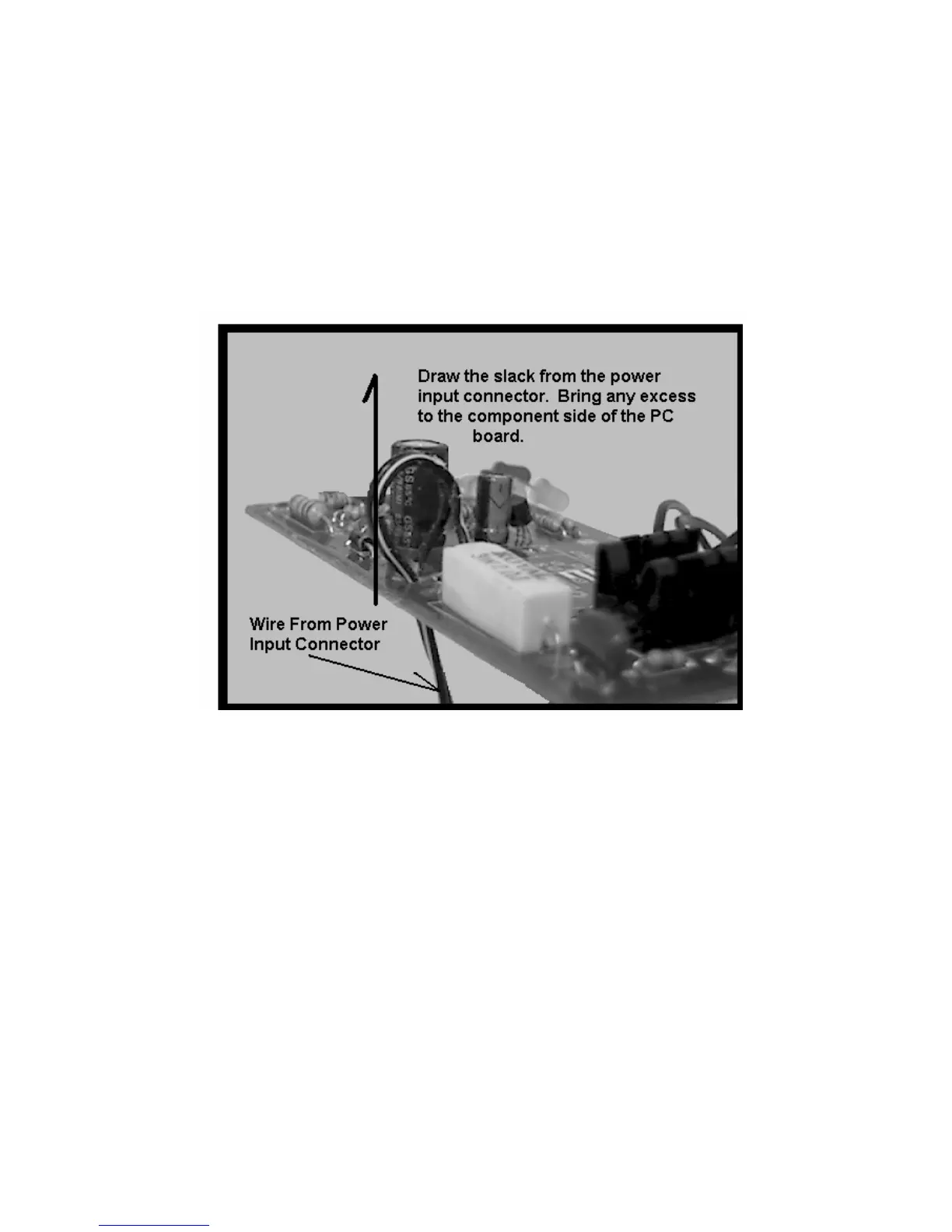

c. Remove the slack from the charge connector wiring by drawing any excess wire to the
component side of the printed circuit board (see illustration).
5. Place the top and bottom halves of the housing together and make sure that they mate fully
with the black rubber gasket.
6. Insert the six screws into the bottom and tighten them until they are snug.
